2702436
Official DistributorSKU
PHX2702436
MPN
PLD E 400-PS/1AC/24DC/30W
Weight
0.361 kg
Series PLD-E
PLD E 400-PS/1AC/24DC/30W - Mains plug

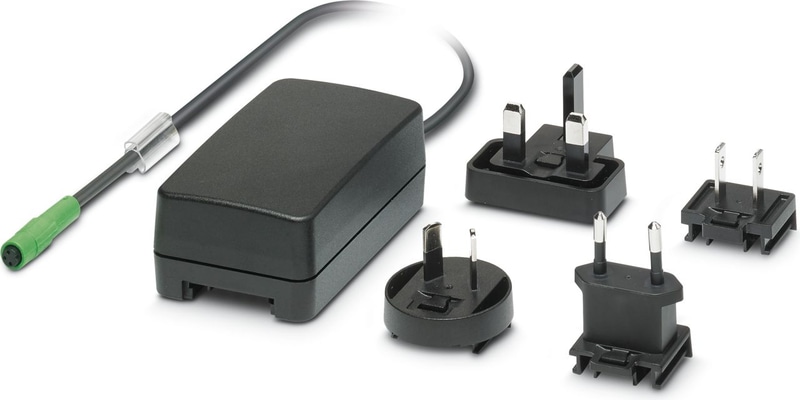

Plug-in power supply unit for class 400 LED enclosure lights, including country-specific plug adapters for Europe, Great Britain, USA and Australia; max. output voltage 30 W
- High efficiency
- Minimum standby power dissipation ≤ 0.1 W
- IP42-tested interchangeable adapter system
Technical Specifications
Insulation characteristics
| Protection class | II |
Input data
| Nominal input voltage range | 100 V AC ... 240 V AC ±10 % |
| Voltage type of supply voltage | AC |
| AC frequency range | 50 Hz ... 60 Hz |
| Protective circuit | Surge protection |
| Protective circuit | Short-circuit protection |
| Protective circuit | Overload protection |
| Typical response time | max. 2 s |
| Discharge current to PE | max. 250 µA |
Signal
| Maximum Inrush Current | 650 mA |
Output data
| Efficiency | ≥ 86.95 % |
| Nominal Output Voltage | 24 V DC ±5 % |
| Residual ripple | 120 mVPP |
| Output Power | 30 W |
| Maximum no-load power dissipation | max. 0.1 W |
| Protective circuit | Surge protection |
Dimensions
| Width | 55 mm |
| Height | 90 mm |
| Depth | 34 mm |
Cable/line
| Connecting cable length | 2 m |
Ambient conditions
| Degree of Protection | IP42 |
| Ambient Temperature (Operation) | 0 °C ... 40 °C (at maximum load) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Maximum altitude | 2000 m |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Mounting
| Mounting Type | Plugging into the mains socket |
