Official DistributorSKU
MPN
PLD E 608-CO-MS/FS/FR
Weight
0.026 kg
This product is Not Cancellable/Not Returnable
Series PLD-E

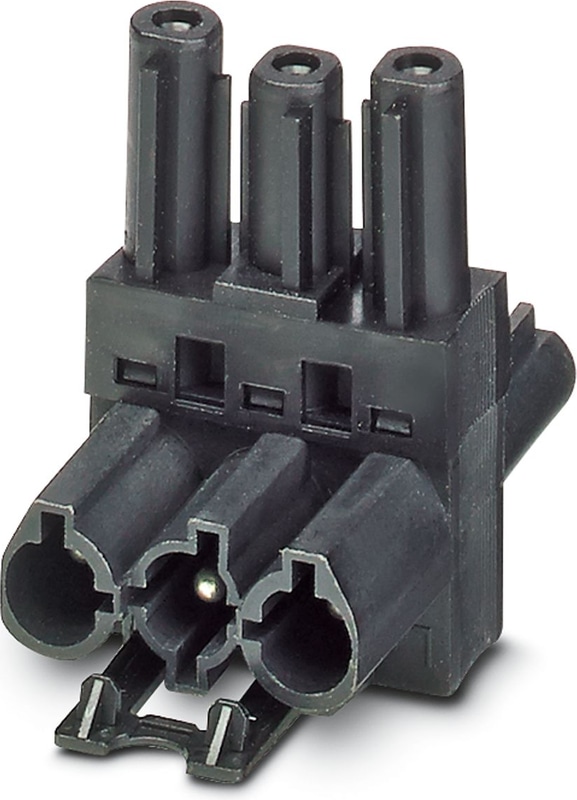

PLD E 608-CO-MS/FS/FR - T distributor
T-distributor with 2 sockets and one connector for series connection, black, 3-pos.
Technical Specifications
Product properties
| Type | T distributor |
| Number of Positions | 3 |
| Connection profile | 2+PE |
| No. of cable outlets | 3 |
Insulation characteristics
| Degree of pollution | 2 |
Connection technology
| Frequency of connections between conductors of the same cross section | 5 (in accordance with EN 61984) |
Electrical properties
| Rated surge voltage (II/2) | 4 kV |
| Rated current | 16 A (in accordance with EN 61984 at 70°C) |
| Rated voltage (I/2) | 250 V |
Mechanical data
| Insertion/withdrawal cycles | 10 (in accordance with EN 61984) |
Material specifications
| Flammability rating according to UL 94 | V2 |
| Housing Material | Polyamide (PA 6.6) |
| Contact Material | Brass |
| Contact surface material | surface-protected |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP40 (plugged in) |
| Ambient Temperature (Operation) | 70 °C |
| Ambient temperature (storage/transport) | -30 °C ... 70 °C |
Why Proax for Phoenix Contact 2702310?
Proax is an authorized distributor of Phoenix Contact 2702310 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
