2702306
Official DistributorSKU
PHX2702306
MPN
PLD E 608-CA-3,0/FS/UL
Weight
0.328 kg
Series PLD-E

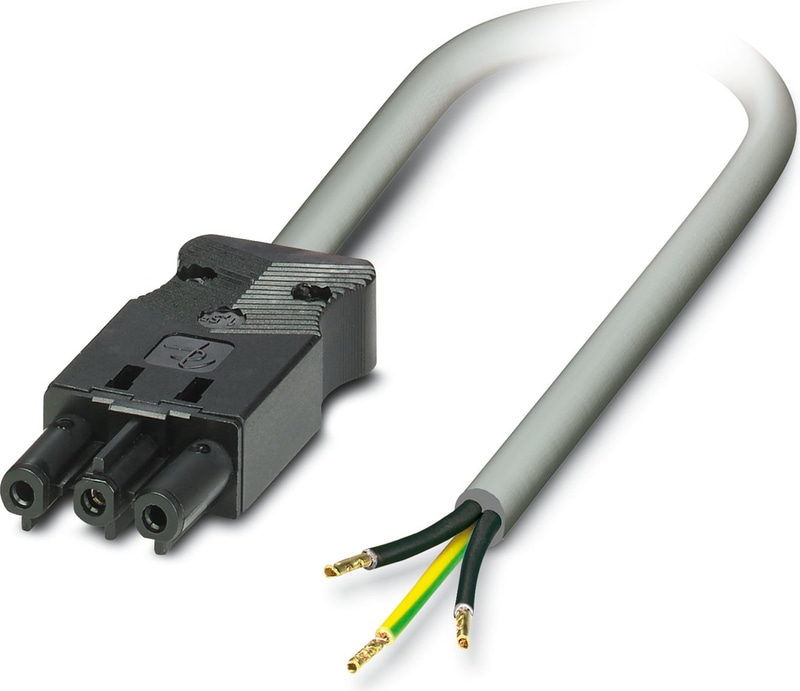

PLD E 608-CA-3,0/FS/UL - Power cable
Power cable, 3-position, PVC, gray RAL 7001, cable length: 3 m, with UL approval
Technical Specifications
Product properties
| Application | Enclosure lights |
| Number of Positions | 3 |
| No. of cable outlets | 1 |
| Shielded | no |
Material specifications
| Material for screw connection | not available |
| Outer sheath, material | PVC |
| Conductor material | Bare Cu litz wires |
Electrical properties
| Nominal voltage UN | 250 V AC |
| Nominal current IN | 16 A |
Mechanical data
| Insertion/withdrawal cycles | 100 |
Connection 1
| Head design | free cable end |
Connection 2
| Head design | Socket |
| Head cable outlet | straight |
| Coding | black |
Cable/line
| Cable Length | 3 m |
H05VV-F3G [PVC]
| Number of Positions | 3 |
| Shielded | no |
| Cable Type | H05VV-F3G [PVC] |
| AWG Signal Line | 16 |
| Wire diameter incl. insulation | 2.7 mm |
| External Cable Diameter | 7.80 mm |
| Outer sheath, material | PVC |
| External sheath, color | gray RAL 7001 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PVC TI2 |
| Smallest bending radius, fixed installation | 40 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP40 (plugged in) |
| Ambient Temperature (Operation) | -5 °C ... 40 °C |
Accessories
Why Proax for Phoenix Contact 2702306?
Proax is an authorized distributor of Phoenix Contact 2702306 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
