Official DistributorSKU
MPN
PLD E 608 W 315/F
Weight
0.888 kg
Series PLD-E

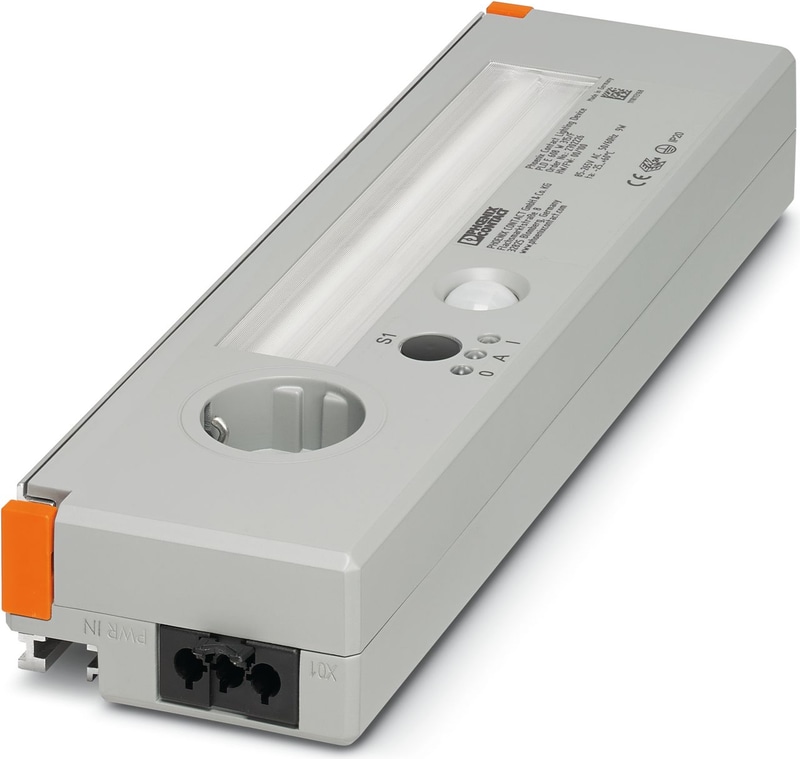

PLD E 608 W 315/F - LED enclosure light
LED enclosure light, AC wide-range input, color temperature 4000 K, with motion sensor, type F socket (Schuko)
- Tool-free mounting, thanks to the patented snap-in hook system
- Worldwide use, thanks to AC wide range input
- Integrated motion detector saves on MRP and installation costs for door position switches
- Socket enables the operation of external devices even when power is disconnected to the control cabinet
- Series connection reduces cabling effort for control cabinets arranged in series
- Optimum lighting of the control cabinet, thanks to integrated optics
- LED service life of 50,000 h (L70 value) prevents bulb replacement
Technical Specifications
Product properties
| Application | Control cabinet |
| Mounting Position | any |
| For country-specific use in | Germany |
| For country-specific use in | Finland |
| For country-specific use in | Greece |
| For country-specific use in | Luxembourg |
| For country-specific use in | Netherlands |
| For country-specific use in | Norway |
| For country-specific use in | Austria |
| For country-specific use in | Portugal |
| For country-specific use in | Russia |
| For country-specific use in | Sweden |
| For country-specific use in | Spain |
| For country-specific use in | Turkey |
| Special Properties | can be switched in series |
| Special Properties | including mounting accessories |
| Socket type | Type F |
Electrical properties
| Maximum power dissipation for nominal condition | 9.8 W |
Supply: Module electronics
| Connection Method | Installation coupler |
| Number of Positions | 3 |
| Supply Voltage Range | 85 V AC ... 265 V AC (50/60 Hz) |
| Supply Voltage Range | 100 V AC ... 250 V AC (50/60 Hz, nominal voltage) |
| Current consumption | max. 16 A (from the socket) |
| Power consumption | 9.8 W |
Motion detector
| Detection range | 1.5 m ±0.25 m |
| Detection angle | 35 ° ±5° (Horizontal and vertical) |
| Lighting duration | 180 s (Retriggered) |
Light properties
| Source of light type | LED |
| Number of LEDs | 23 |
| Service life, lighting appliance | 50,000 h (L70) |
| Color temperature | 4000 K |
| Color rendering index | 85 |
| Luminous flux | 685 lm (Net luminous flux) |
| Illumination | max. 1255 lx (50 cm distance) |
| Illumination | max. 310 lx (Distance of 1 m) |
| Ordinance | Delegated Regulation (EU) 2019/2015 |
| Energy efficiency class | G (1 light source) |
| Note | This product contains an energy efficiency class E light source. |
Dimensions
| Width | 91 mm |
| Height | 44 mm |
| Length | 315.4 mm |
Material specifications
| Color | traffic grey A RAL 7042 |
| Material () | Plastic |
| Housing Material | Plastic |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Degree of Protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
| Permissible humidity (storage/transport) | 5 % ... 95 % |
Standards and Regulations
| Protection class | I |
Mounting
| Mounting Type | Snap-in hook system |
| Assembly instructions | Magnet attachment available as an accessory |
| Assembly instructions | Screw fixings available as accessories |
| Mounting Position | any |
Accessories
PLD E 608-CA-MS/0,6/FS AM - Power cable, 3-position, PVC, orange RAL 2004, cable length: 0.6 m- PLD E 608-CA-MS/4,0/FS AM, The cable serves to connect multiple 600 class PLD enclosure lights in series.
PLD E 608-CO-MS/FS/FR, T-distributor with 2 sockets and one connector for series connection, black, 3-pos.
