Official DistributorSKU
MPN
PLD E 400 W 500
Weight
0.275 kg
Series PLD-E

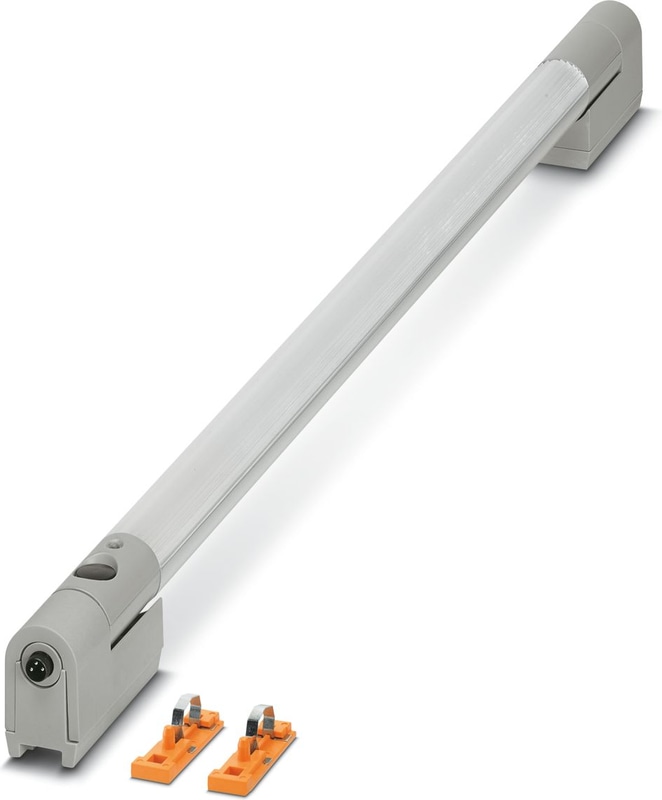

PLD E 400 W 500 - LED enclosure light
LED enclosure light, 24 V DC, length: 500 mm, degree of protection: IP20, can be swiveled, can be switched in series, including mounting accessories
- Tool-free mounting, thanks to clip fastening
- Wiring via sensor/actuator cables with M8 snap-in technology
- Series connection reduces cabling effort for control cabinets arranged in series
- Optimum lighting of the control cabinet, thanks to integrated prismatics and capacity to swivel
- Swiveling enables optimum adjustment to the relevant control cabinet depth
- LED service life of 50,000 h (L70 value) prevents bulb replacement
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| Application | Control cabinet |
| Mounting Position | any |
| Special Properties | can be swiveled ±90° swivel range |
| Special Properties | can be switched in series |
| Special Properties | including mounting accessories |
| Socket type | No socket |
Electrical properties
| Maximum power dissipation for nominal condition | 5 W |
Supply: Module electronics
| Connection Method | M8 connector (snap-in) |
| Number of Positions | 3 |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC |
| Power consumption | 5 W |
Connection data
| Connection Method | M8 connector (snap-in) |
Light properties
| Source of light type | LED |
| Number of LEDs | 20 |
| Service life, lighting appliance | 50,000 h (L70) |
| Color temperature | 5000 K |
| Color rendering index | 75 |
| Luminous flux | 560 lm (Net luminous flux) |
| Illumination | max. 1350 lx (50 cm distance) |
| Illumination | max. 335 lx (Distance of 1 m) |
| Ordinance | Delegated Regulation (EU) 2019/2015 |
| Energy efficiency class | E (1 light source) |
| Note | This product contains an energy efficiency class E light source. |
Dimensions
| Width | 23 mm |
| Height | 38 mm |
| Length | 500 mm |
Material specifications
| Color | traffic grey A RAL 7042 |
| Material () | Plastic |
| Housing Material | Plastic |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Degree of Protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
| Permissible humidity (storage/transport) | 5 % ... 95 % |
Standards and Regulations
| Protection class | III |
Mounting
| Mounting Type | Clip mounting |
| Assembly instructions | Magnet attachment available as an accessory |
| Assembly instructions | Screw fixings available as accessories |
| Mounting Position | any |
Accessories
STEP-PS/ 1AC/24DC/0.5 - Primary-switched STEP POWER power supply for DIN rail and direct mounting, input: 1-phase, output: 24 V DC/0.5 A
STEP-PS/ 1AC/24DC/0.75/FL - Primary-switched STEP POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/0.75 A
PLD E 400-PS/1AC/24DC/30W - Plug-in power supply unit for class 400 LED enclosure lights, including country-specific plug adapters for Europe, Great Britain, USA and Australia; max. output voltage 30 W
PLD E 400-DS-3,0/FS/0,6 - Door position switch with 3 m cable with open cable end and 0.6 m cable with M8 socket (Snap-in), including mounting accessories
Door position switch with 1 m cable with M8 plug and 0.6 m cable with M8 socket (Snap-in), including mounting accessories
PLD E 400-ME SM - Set for screw mounting of class 400 PLD enclosure lights, including screws and washers
