2702435
Official DistributorSKU
PHX2702435
This product is Not Cancellable/Not Returnable

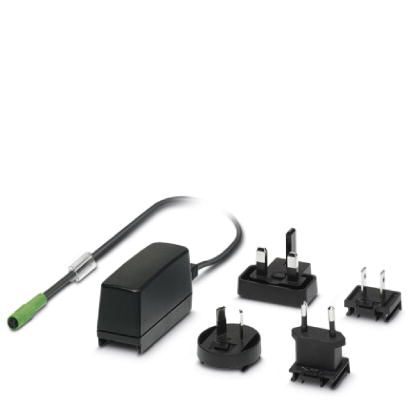

Mains plug - PLD E 400-PS/1AC/24DC/12W
Plug-in power supply unit for class 400 LED enclosure lights, including country-specific plug adapters for Europe, Great Britain, USA and Australia; max. output voltage 12 W
- High efficiency
- Minimum standby power dissipation ≤ 0.1 W
- IP42-tested interchangeable adapter system
Technical Specifications
Dimensions
| Width | 31.5 mm |
| Height | 75 mm |
| Depth | 41 mm |
Ambient conditions
| Degree of Protection | IP42 |
| Ambient Temperature (Operation) | 0 °C ... 40 °C (at maximum load) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Installation height | 2000 m |
Input data
| Nominal input voltage range | 100 V AC ... 240 V AC ±10 % |
| AC frequency range | 50 Hz ... 60 Hz |
| Maximum Inrush Current | 250 mA |
| Discharge current to PE | max. 200 µA |
| Type of protection | Surge protection |
Output data
| Nominal Output Voltage | 24 V DC ±5 % |
| Residual ripple | 100 mVPP |
| Output Power | 12 W |
| Maximum no-load power dissipation | max. 0.1 W |
| Type of protection | Surge protection |
Connection data, output
| Cable end connection | M8 socket (Snap-in) |
| Connecting cable length | 2 m |
General
| Efficiency | ≥ 83 % |
| Degree of Protection | IP42 |
| Protection class | II |
| Can be used as typical for the country | Australia |
| Can be used as typical for the country | Belgium |
| Can be used as typical for the country | Brazil |
| Can be used as typical for the country | China |
| Can be used as typical for the country | Denmark |
| Can be used as typical for the country | Germany |
| Can be used as typical for the country | Finland |
| Can be used as typical for the country | France |
| Can be used as typical for the country | Greece |
| Can be used as typical for the country | Great Britain |
| Can be used as typical for the country | India |
| Can be used as typical for the country | Ireland |
| Can be used as typical for the country | Italy |
| Can be used as typical for the country | Japan |
| Can be used as typical for the country | Canada |
| Can be used as typical for the country | Luxembourg |
| Can be used as typical for the country | Mexico |
| Can be used as typical for the country | Netherlands |
| Can be used as typical for the country | Norway |
| Can be used as typical for the country | Austria |
| Can be used as typical for the country | Poland |
| Can be used as typical for the country | Portugal |
| Can be used as typical for the country | Russia |
| Can be used as typical for the country | Sweden |
| Can be used as typical for the country | Switzerland |
| Can be used as typical for the country | Spain |
| Can be used as typical for the country | Singapore |
| Can be used as typical for the country | Turkey |
| Can be used as typical for the country | USA |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 25; |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
