1319573
PHX1319573
Weight 0.232 kg

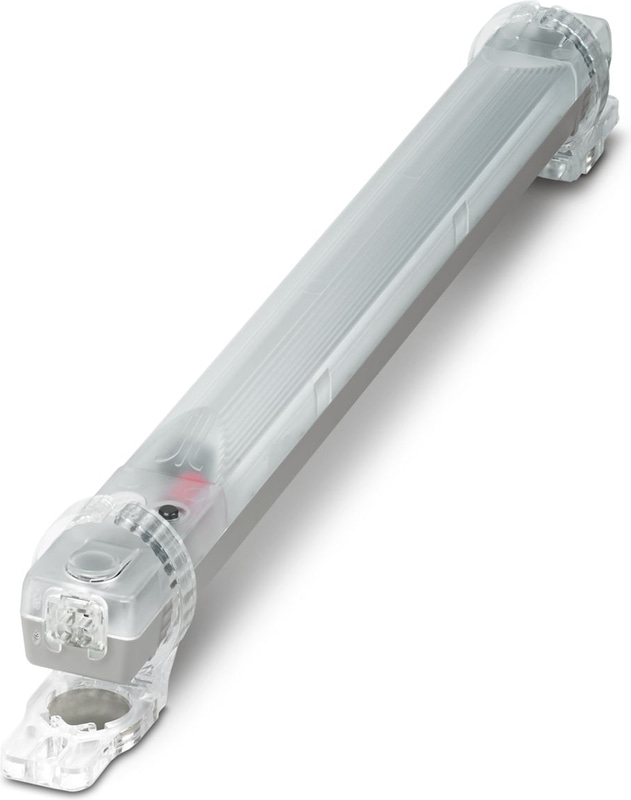

Official DistributorPLD E 409 W 350 MS - LED enclosure light
LED enclosure light, 24 V AC/DC ... 240 V AC/DC, length: 350 mm, degree of protection: IP20, can be swiveled (±90° swivel range), with motion detector, including mounting accessories
- Series connection reduces cabling effort for control cabinets arranged in series
- Optimum lighting of the control cabinet, thanks to integrated prismatics and capacity to swivel
- Wide range input 24 V AC/DC ... 240 V AC/DC
- Extended temperature range of -25°C ... +70°C (at 24 V DC)
- LED service life of 50,000 h (L70 value) prevents bulb replacement
Documents
Technical Specifications
Product properties
| Application | Control cabinet |
| Mounting Position | any |
| Special Properties | 24 V AC/DC ... 240 V AC/DC |
| Special Properties | can be swiveled (±90° swivel range) |
| Special Properties | with motion detector |
| Special Properties | including mounting accessories |
| Socket type | No socket |
Supply: Module electronics
| Connection Method | Push-in connection |
| Number of Positions | 2 |
| Supply Voltage Range | 24 V AC/DC ... 240 V AC/DC ±5 % (50/60 Hz (AC)) |
| Power consumption | 6 W |
Connection data
| Connection Method | Push-in connection |
| Conductor cross section, rigid | 0.13 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.13 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.5 mm² ... 0.75 mm² (DIN 46228-4) |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.5 mm² ... 1.5 mm² (DIN 46228-1) |
| Stripping length | 10 mm |
Motion detector
| Detection range | max. 5 m |
| Detection angle | 100 ° |
| Lighting duration | 5 min. (Retriggered) |
Light properties
| Source of light type | LED |
| Number of LEDs | 18 |
| Color temperature | 5000 K |
| Color rendering index | 85 |
| Luminous flux | 700 lm (Net luminous flux) |
| Illumination | max. 1200 lx (50 cm distance) |
| Illumination | max. 450 lx (Distance of 1 m) |
| Ordinance | Delegated Regulation (EU) 2019/2015 |
| Energy efficiency class | D (1 light source) |
| Note | This product contains an energy efficiency class D light source. |
Dimensions
| Width | 39 mm |
| Height | 45 mm |
| Length | 350 mm |
| Note on dimensions | Without mounting clips |
Material specifications
| Color | traffic grey A RAL 7042 |
| Material () | Polycarbonate (Housing) |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C (Standard applications and applications with UL approval) |
| Ambient Temperature (Operation) | -25 °C ... 70 °C (at 24 V DC) |
| Degree of Protection | IP20 |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 90 % |
| Permissible humidity (storage/transport) | 5 % ... 90 % |
Standards and Regulations
| Protection class | II |
Mounting
| Mounting Type | Screw/magnet mounting |
| Mounting Position | any |
