Phoenix Contact 3213943
AllConnectorsTerminal blocksPush-in connection
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
PTI 2,5-PE/LO/NO
Weight
0.018 kg
Series PTI

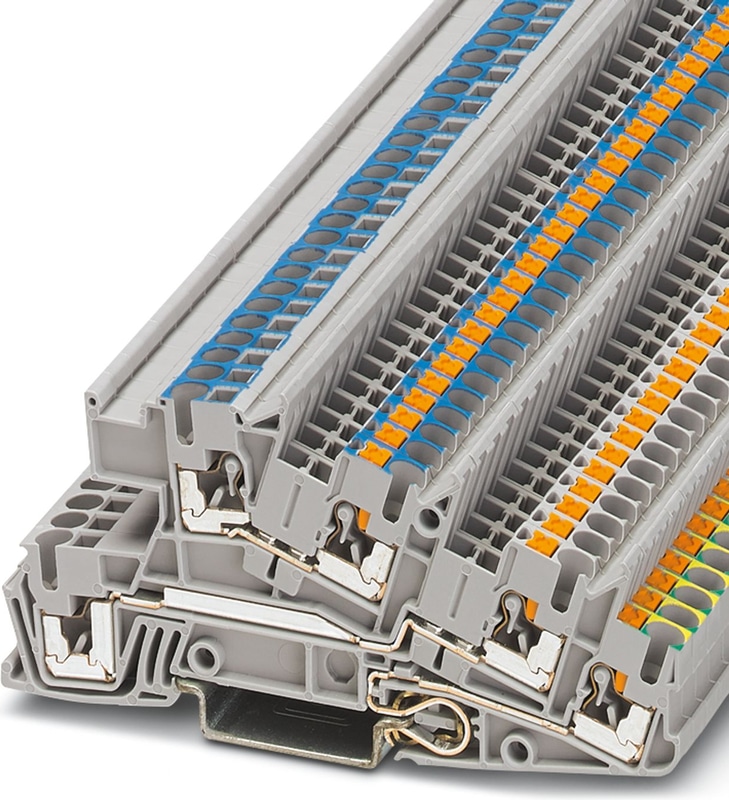

PTI 2,5-PE/LO/NO - Installation ground terminal block

Installation ground terminal block, without actuating push button on the feed-in side, nom. voltage: 400 V, nominal current: 24 A, Push-in connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm2, cross section: 0.14 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

  • Double function shafts on all levels

Documents

Technical Specifications

Product properties

Number of Connections5
Number of rows3
Potentials2

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage4 kV
Rated surge voltage6 kV
Maximum power dissipation for nominal condition1.02 W

Connection data

Service Entranceyes
Number of connections per level2
Nominal cross section4 mm²

1st, 2nd and 3rd level

NotePlease observe the current carrying capacity of the DIN rails.
Stripping length10 mm
Internal cylindrical gageA3
Conductor cross section rigid0.14 mm² ... 4 mm²
Cross section AWG26 ... 12 (converted acc. to IEC)
Conductor cross section flexible0.14 mm² ... 4 mm²
Conductor cross section, flexible [AWG]26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.14 mm² ... 2.5 mm²
Nominal Current24 A (with 4 mm² conductor cross section)
Maximum Load Current30 A (with 4 mm² conductor cross section and 3-pos. terminal block)
Nominal Voltage400 V (phase conductor/phase conductor)
Nominal Voltage250 V (phase conductor/PE)
Nominal Voltage250 V (phase conductor/N)
Nominal cross section4 mm²

1st, 2nd and 3rd level Connection cross sections directly pluggable

Conductor cross section rigid0.34 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)0.34 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.34 mm² ... 2.5 mm²

Dimensions

Width5.2 mm
End cover width2.2 mm
Height101 mm
Depth48.6 mm
Depth on NS 35/7,550.5 mm
Depth on NS 35/1558 mm

Material specifications

Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Surge voltage test

Test voltage setpoint7.3 kV
ResultTest passed

Temperature-rise test

Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 4 mm²0.48 kA
Short-time withstand current 4 mm²0.48 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint1.89 kV
ResultTest passed

Mechanical data

Open side panelYes

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 35
Test force setpoint1 N
ResultTest passed

Test for conductor damage and slackening

Rotation speed10 rpm
Revolutions135
Conductor cross section/weight0.14 mm² / 0.2 kg
Conductor cross section/weight4 mm² / 0.9 kg
ResultTest passed

Aging

Temperature cycles192
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Oscillation/broadband noise

SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectrumService life test category 1, class B, body mounted
Frequencyf1 = 5 Hz to f2 = 150 Hz
ASD level0.964 (m/s²)²/Hz
Acceleration0.58g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed

Shocks

SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Pulse shapeHalf-sine
Acceleration5g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Mounting

Mounting TypeNS 35/7,5
Mounting TypeNS 35/15
