2700843
Official DistributorSKU
PHX2700843
MPN
IB ST 24 TEMP 4 RTD
Weight
0.583 kg
Series IB-ST

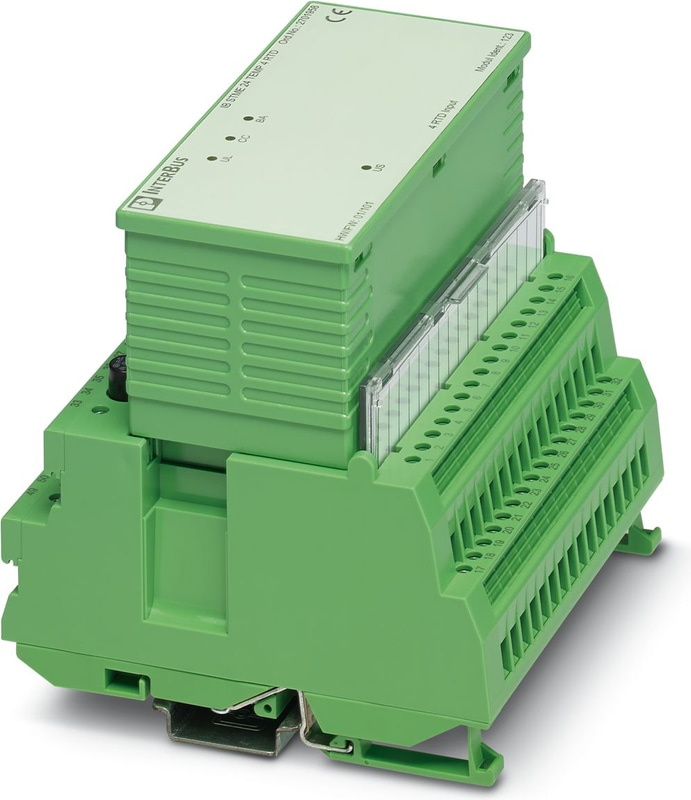

IB ST 24 TEMP 4 RTD - I/O module
INTERBUS-ST analog input module, 4 inputs, RTD, 2-, 3-, and 4-conductor connection, IP20 degree of protection, consisting of: terminal part with screw connection and module electronics
- 4 analog input channels for connecting resistance temperature detectors (RTDs)
- Connection of sensors in 2-, 3-, and 4-conductor technology
Technical Specifications
Dimensions
| Width | 118 mm |
| Height | 116 mm |
| Depth | 117 mm |
ST local bus
| No. of channels | 2 |
| Connection Method | ST local bus connector |
| Transmission Speed | 500 kbps |
| Transmission physics | Copper |
Module
| ID code (dec.) | 123 |
| ID code (hex) | 7B |
| Length code (hex) | 4 |
| Length code (dec) | 4 |
| Input address area | 8 Byte |
| Output address area | 8 Byte |
| Register length | 8 Byte |
Analog
| Input name | Analog RTD inputs |
| Description of the input | Inputs for resistive temperature sensors |
| Number of Inputs | 4 (for resistance temperature detectors) |
| Connection technology | 2-, 3-, 4-conductor (shielded) |
| A/D converter resolution | 24 bit |
| Sensor types (RTD) that can be used | Pt 100, Pt 1000, Ni 100, Ni 1000 |
| Measuring Principle | Sigma/Delta process |
| Measured value representation | 16 bit two's complement |
Product properties
| Type | modular |
| Type | INTERBUS Smart Terminal |
| Operating mode | Process data mode with 4 words |
| Diagnostics messages | Failure of the internal I/O supply I/O error message sent to the bus coupler |
| Diagnostics messages | F1 fuse failure I/O error message sent to the bus coupler |
| Diagnostics messages | I/O supply failure I/O error message sent to the bus coupler |
Supply: Module electronics
| Connection Method | ST local bus connector |
| Designation | Communications power |
| Supply Voltage | 9 V DC (from the ST local bus) |
| Current consumption | typ. 54 mA |
| Current consumption | max. 80 mA |
| Power consumption | typ. 0.5 W |
Supply: Periphery supply voltage
| Designation | Periphery supply voltage US |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.5 V DC ... 30.2 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 15 mA |
Electrical isolation/isolation of the voltage ranges
| Test voltage: Bus/Inputs | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Supply voltage/inputs | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Supply voltage/Ground conductor | 500 V AC, 50 Hz, 1 min. |
| Test voltage: I/O voltage/Ground conductor | 500 V AC, 50 Hz, 1 min. |
Connection technology
| Connection name | Terminal block |
Conductor connection
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm |
Terminal block
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Degree of Protection | IP20 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | DIN rail mounting |
Accessories
Why Proax for Phoenix Contact 2700843?
Proax is an authorized distributor of Phoenix Contact 2700843 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
