2751975
Official DistributorSKU
PHX2751975
MPN
IB ST 24 INC/2
Weight
0.732 kg
Series IB-ST

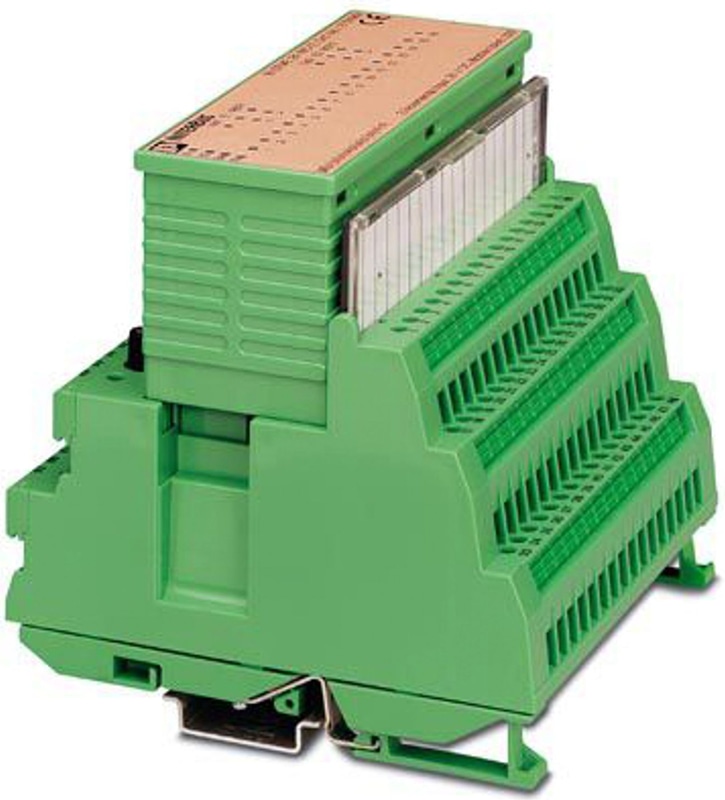

IB ST 24 INC/2 - Function module
INTERBUS-ST positioning module, 2 incremental encoder inputs, 8 digital inputs, 8 digital outputs, 24 V DC, 0.5 A, IP20 protection, consisting of: Terminal part with screw connection and module electronics
- Position detection with incremental encoder
- Connection of actuators in 2-conductor technology
- Connection of actuators in 2- and 3-conductor technology
Documents
Technical Specifications
ST local bus
| Connection Method | ST local bus connector |
| Transmission Speed | 500 kbps |
Digital
| Number of Inputs | 8 |
| Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 13 V DC ... 30 V DC |
| Connection technology | 3-conductor (signal, Us, GND) |
| Typical input current per channel | 5 mA |
Counter:
| Number of Inputs | 2 |
| Operating mode | Counting, position detection, controlled positioning |
| Input Frequency | 0 Hz (500 kHz; 5 V) |
| Input Frequency | 0 Hz (25 kHz; 24 V) |
Digital
| Number of Outputs | 8 |
| Output Voltage | Us - 0.5 V DC |
| Protective circuit | Reverse polarity protection |
| Protective circuit | Short-circuit protection of outputs; electronic |
Product properties
| Product family | Smart Terminal ST |
| Type | modular |
Electrical properties
| Test section | Bus/Outputs 500 V AC 50 Hz 1 min |
| Test section | Channel 1/Channel 2 500 V AC 50 Hz 1 min |
| Test section | Bus/Ground conductor 500 V AC 50 Hz 1 min |
| Test section | I/O voltage/Ground conductor 500 V AC 50 Hz 1 min |
Supply
| Communications power UL | 9 V DC (from the ST local bus) |
| I/O voltage | ± 24 V DC 5 % (ripple) |
| I/O voltage range | 20 V DC ... 30 V DC |
| Typical current consumption | 200 mA (from the local bus) |
| Typical current consumption | 80 mA (to Us1 / Us2) |
Conductor connection
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Ambient conditions
| Degree of Protection | IP20 |
Mounting
| Mounting Type | DIN rail mounting |
