2750400
Official DistributorSKU
PHX2750400
MPN
IB ST 24 CNT
Weight
0.737 kg
This product is Not Cancellable/Not Returnable
Series IB-ST

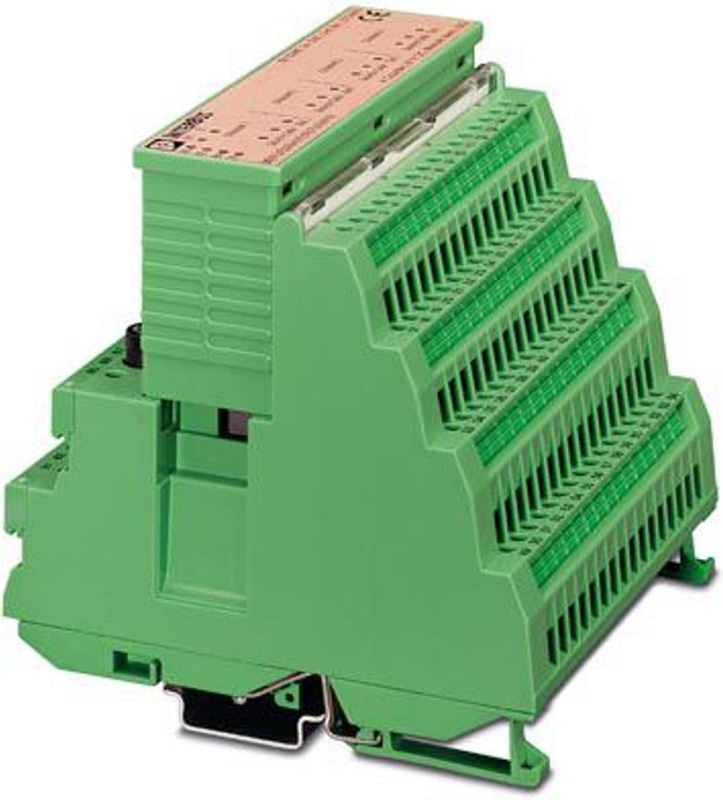

IB ST 24 CNT - Function module
INTERBUS-ST counter module, 4 counter inputs, 24 V or 5 V DC signal level, IP20 protection, consisting of: Terminal part with screw connection and module electronics
- Connection of actuators in 2-conductor technology
- Connection of sensors in 2- or 3-conductor technology
- Short-circuit and overload-protected outputs
Documents
Technical Specifications
Dimensions
| Width | 118 mm |
| Height | 117 mm |
| Depth | 116 mm |
ST local bus
| Connection Method | ST local bus connector |
| Transmission Speed | 500 kbps |
| Connection Method | ST local bus connector |
| Transmission Speed | 500 kbps |
| Transmission physics | Copper |
Counter:
| Input name | Counter input for 24 V signals |
| Connection Method | Screw connection |
| Number of Inputs | 4 |
| Operating mode | Event counting, frequency/time measurement |
| Input Voltage | 5 V DC |
| Input Voltage | 24 V DC |
| Input Frequency | 90 kHz (max. 300 kHz) |
| Input Current | 11 mA (typ., 24 V DC input) |
| Input Current | 8 mA (typ., 5 V DC input) |
| Resolution | 16 bit (quantization) |
Digital:
| Output name | Digital outputs |
| Number of Outputs | 4 |
| Protective circuit | Polarity reversal protection, electronic short-circuit protection of the outputs |
| Output Voltage | US - 0.5 V DC UOut LED US |
| Output Current | 500 mA (per output, up to 300 Hz) |
| Output Current | 250 mA (per output, up to 10 kHz) |
Product properties
| Product family | Smart Terminal ST |
| Type | modular |
| Type | INTERBUS Smart Terminal |
| Operating mode | Process data multiplex operation with 1 parameter channel, 3 INTERBUS IN and 3 INTERBUS OUT words |
Electrical isolation/isolation of the voltage ranges
| Test voltage: Bus/Outputs | 500 V AC, 50 Hz, 1 min |
| Test voltage: Bus/Inputs | 500 V AC, 50 Hz, 1 min |
| Test voltage: Bus/Ground conductor | 500 V AC, 50 Hz, 1 min |
| Test voltage: I/O / Ground conductor | 500 V AC, 50 Hz, 1 min |
Conductor connection
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm |
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm |
Ambient conditions
| Degree of Protection | IP20 |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | DIN rail mounting |
Accessories
