IB ST 24 BDI 8/4
Weight
0.486 kg
Series IB-ST

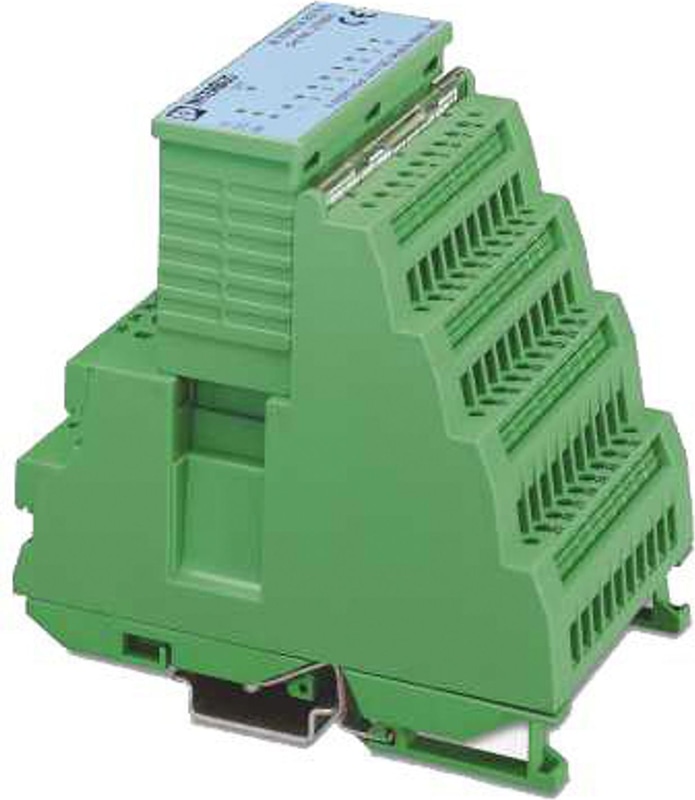

IB ST 24 BDI 8/4 - I/O module
INTERBUS-ST digital input module, 8 inputs, 24 V DC, 4-conductor connection technology, IP20 degree of protection, consisting of: terminal part with screw connection and module electronics
Technical Specifications
Electrical properties
| Test section | Bus logic/Inputs 500 V AC 50 Hz 1 min. |
Supply
| Communications power UL | 9 V DC (from the ST local bus) |
| I/O voltage | 24 V DC |
| I/O voltage range | 20 V DC ... 30 V DC |
| Residual ripple | ± 1.2 V |
| Typical current consumption | 50 mA (from the ST local bus) |
Digital
| Number of Inputs | 8 |
| Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 15 V DC ... 30 V DC |
| Protective circuit | Short-circuit protected initiator supply; Fuse |
| Protective circuit | Reverse polarity protection; With inverse-parallel diode and fuse |
| Connection Method | Screw connection |
| Connection technology | 4-conductor |
| Typical input current per channel | 6 mA (at 24 V DC) |
Connection data
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
ST local bus
| Connection Method | ST local bus connector |
| Transmission physics | Copper |
Dimensions
| Length | 116 mm |
Ambient conditions
| Degree of Protection | IP20 |
