2721031
Official DistributorSKU
PHX2721031
MPN
IB ST 24 BAO 8/U-8B
Weight
0.652 kg
Series IB-ST

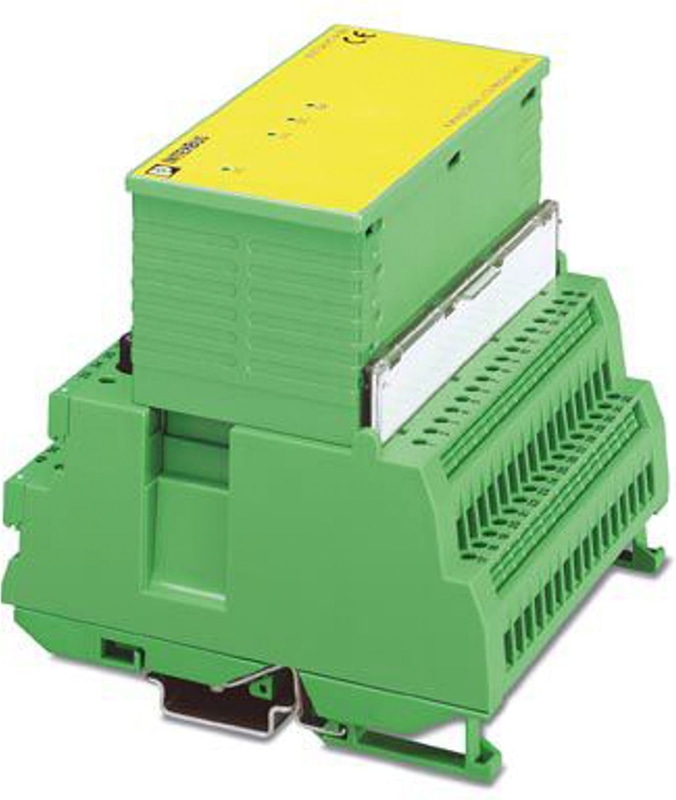

IB ST 24 BAO 8/U-8B - I/O module
INTERBUS-ST analog output module, D/A resolution 13-bit, 8 outputs, 0 to 10 V, consisting of: Terminal part with screw connection and module electronics
- Standard signal types (voltage and current)
- Temperature measurement modules
- 8 analog bipolar outputs
- Connection of actuators in 2-conductor technology
Technical Specifications
Dimensions
| Width | 118 mm |
| Height | 117 mm |
| Length | 116 mm |
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
ST local bus
| Connection Method | ST local bus connector |
| Transmission Speed | 500 kbps |
Product properties
| Product family | Smart Terminal ST |
| Type | modular |
| Type | INTERBUS Smart Terminal |
| No. of channels | 8 |
Electrical properties
| Maximum power dissipation for nominal condition | 3.6 W |
| Test section | Bus/Outputs 500 V AC 50 Hz 1 min. |
| Test section | Supply voltage/Outputs 500 V AC 50 Hz 1 min. |
| Test section | Supply voltage/Ground conductor 500 V AC 50 Hz 1 min. |
| Test section | I/O voltage/Ground conductor 500 V AC 50 Hz 1 min. |
Supply
| Communications power UL | 9 V DC (from the ST local bus) |
| I/O voltage | ± 24 V DC 5 % (ripple) |
| I/O voltage range | 18.5 V DC ... 30.2 V DC |
| Typical current consumption | 150 mA (at Us) |
Conductor connection
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm |
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm |
Ambient conditions
| Degree of Protection | IP20 |
Mounting
| Mounting Type | DIN rail mounting |
