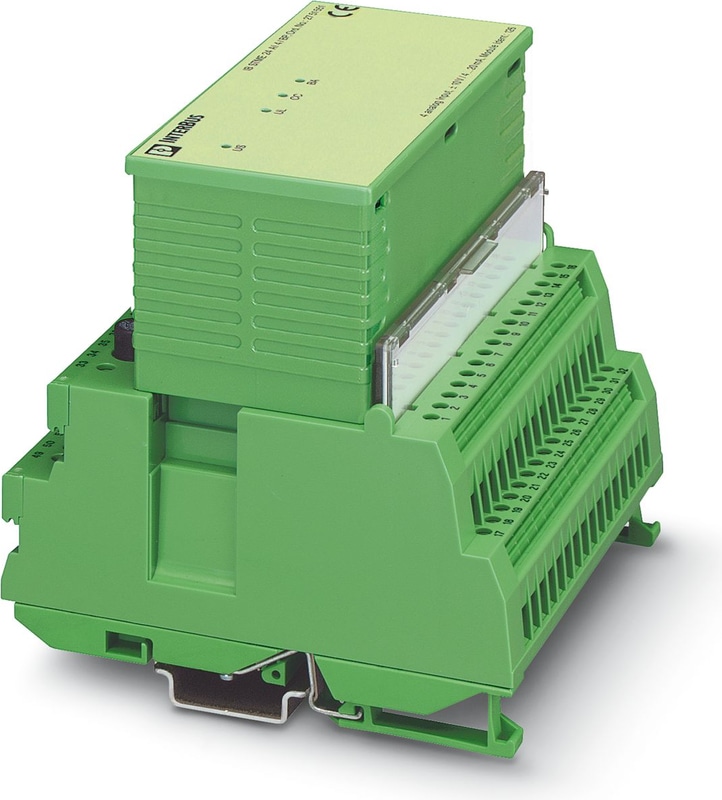

The figure shows version IB ST 24 BAI 2/SF
2725888
Official DistributorSKU
PHX2725888
MPN
IB ST 24 BAI 2/BP
Weight
0.405 kg
Series IB-ST
IB ST 24 BAI 2/BP - I/O module
INTERBUS-ST analog input module, 2 inputs, 0 to 20 mA, 4 to 20 mA, 0 to 10 V, IP20 protection, consisting of: Terminal part with screw connection and module electronics,
Technical Specifications
Dimensions
| Width | 81 mm |
| Height | 117 mm |
| Length | 116 mm |
ST local bus
| Connection Method | ST local bus connector |
| Transmission Speed | 500 kbps |
| Transmission physics | Copper |
Product properties
| Product family | Smart Terminal ST |
| Type | modular |
| No. of channels | 2 |
Electrical properties
| Test section | Bus/Inputs 500 V AC 50 Hz 1 min. |
| Test section | Sensor supply/Ground conductor 500 V AC 50 Hz 1 min. |
Supply
| Communications power UL | 9 V DC (from the ST local bus) |
| I/O voltage | 24 V DC |
Connection technology
| Connection name | Terminal block |
Conductor connection
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Terminal block
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Ambient conditions
| Degree of Protection | IP20 |
Mounting
| Mounting Type | DIN rail mounting |
Why Proax for Phoenix Contact 2725888?
Proax is an authorized distributor of Phoenix Contact 2725888 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
