IB ST 24 DIO 8/8R/3
Weight
0.734 kg
This product is Not Cancellable/Not Returnable
Series IB-ST

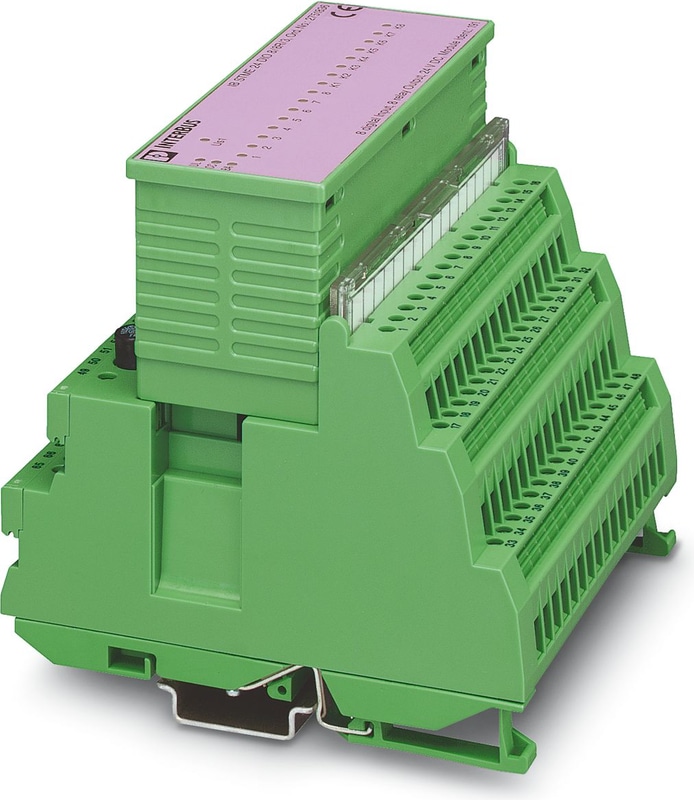

IB ST 24 DIO 8/8R/3 - I/O module
INTERBUS-ST digital input/output module, 8 inputs, 24 V DC, 8 relay changeover contact outputs, IP20 degree of protection, consisting of: terminal part with screw connection and module electronics
- 8 digital inputs
- 8 relay outputs
- Connection of sensors in 3-conductor technology
Technical Specifications
Dimensions
| Width | 118 mm |
| Height | 117 mm |
| Depth | 116 mm |
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
ST local bus
| Connection Method | ST local bus connector |
| Transmission Speed | 500 kbps |
Digital:
| Input name | Digital inputs |
| Number of Inputs | 8 |
| Connection Method | Screw connection |
| Connection technology | 3-conductor |
| Input Voltage | 24 V DC |
| Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 13 V DC ... 30 V DC |
| Nominal input current at UIN | typ. 5 mA (per channel) |
| Typical response time | 3 ms (typ.) |
| Protective circuit | Overload protection; Fuse in header |
| Protective circuit | Short-circuit protection; Fuse in header |
| Output name | Relay output |
| Connection Method | Screw connection |
| Connection technology | 3-conductor |
| Number of Outputs | 8 |
| Protective circuit | Short-circuit protection; electronic |
| Maximum Output Current per channel | 3 A |
| Nominal Output Voltage | 250 V AC |
| Nominal load, inductive | 48 VA |
| Nominal load, lamp | 24 W |
| Nominal load, ohmic | 48 W |
Product properties
| Product family | Smart Terminal ST |
| Type | modular |
| Type | INTERBUS Smart Terminal |
| Mounting Position | Horizontal DIN rail |
| No. of channels | 16 |
Supply: Module electronics
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 20 V DC ... 30 V DC (including ripple) |
| Current consumption | 0.2 A |
| Ripple | 3.6 Vpp within the allowable voltage range |
Electrical isolation/isolation of the voltage ranges
| Test voltage: Bus logic / I/O | 500 V AC, 50 Hz, 1 min. |
| Test voltage: I/O / Ground conductor | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Relay contacts / I/O | 1500 V AC, 50 Hz, 1 min. |
| Test voltage: Relay contacts / Ground conductors | 1500 V AC, 50 Hz, 1 min. |
| Test voltage: Relay contact / Bus logics | 1500 V AC, 50 Hz, 1 min. |
| Test voltage: Relay contacts one below the other | 1000 V AC, 50 Hz, 1 min. |
Connection technology
| Connection name | Terminal block |
Conductor connection
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm |
Terminal block
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm |
Ambient conditions
| Ambient Temperature (Operation) | 0 °C ... 55 °C |
| Degree of Protection | IP20 |
| Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 30 % ... 75 % (non-condensing) |
| Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | Horizontal DIN rail |
