2724902
Official DistributorSKU
PHX2724902
MPN
IB ST 24 UTH 8
Weight
0.598 kg
Series IB-ST

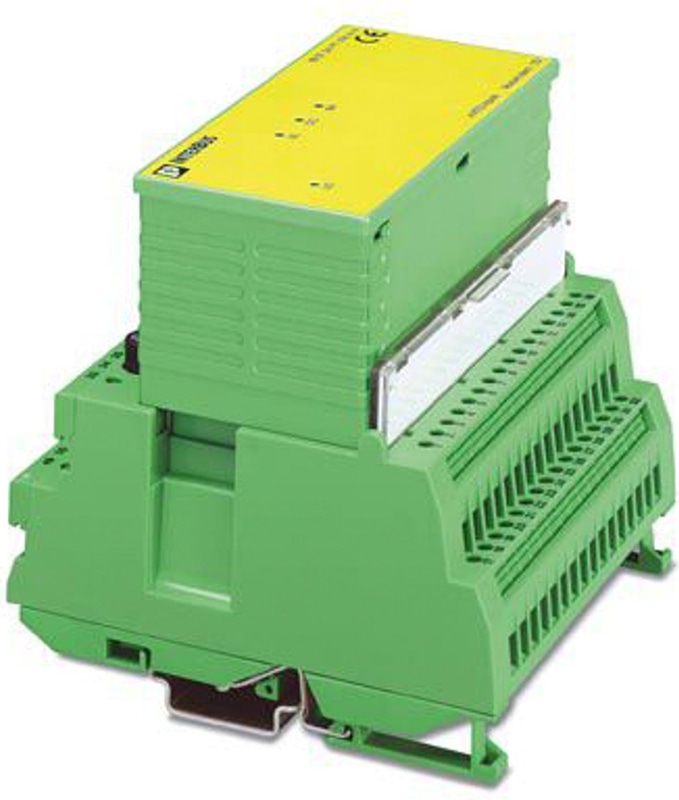

IB ST 24 UTH 8 - I/O module
INTERBUS-ST analog input module, 8 inputs, TC, 2-conductor connection, IP20 degree of protection, consisting of: terminal part with screw connection and module electronics
Technical Specifications
Dimensions
| Width | 118 mm |
| Height | 117 mm |
| Length | 116 mm |
ST local bus
| Connection Method | ST local bus connector |
| Transmission Speed | 500 kbps |
| Transmission length | 116 mm |
Product properties
| Product family | Smart Terminal ST |
| Type | modular |
| No. of channels | 8 |
Electrical properties
| Test section | Bus/Inputs 500 V AC 50 Hz 1 min. |
| Test section | Supply voltage/inputs 500 V AC 50 Hz 1 min. |
| Test section | Supply voltage/Ground conductor 500 V AC 50 Hz 1 min. |
| Test section | I/O voltage/Ground conductor 500 V AC 50 Hz 1 min. |
Supply
| Communications power UL | 9 V DC (from the ST local bus) |
| I/O voltage | 24 V DC |
| I/O voltage range | 18.5 V DC ... 30.2 V DC |
| Residual ripple | ± 1.2 V DC |
| Max. current consumption | 135 mA (from the ST local bus) |
| Max. current consumption | 85 mA (to US) |
| Typical current consumption | 110 mA (from the ST local bus) |
| Typical current consumption | 35 mA (to US) |
Connection technology
| Connection name | Terminal block |
Conductor connection
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Terminal block
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Ambient conditions
| Degree of Protection | IP20 |
Mounting
| Mounting Type | DIN rail mounting |
