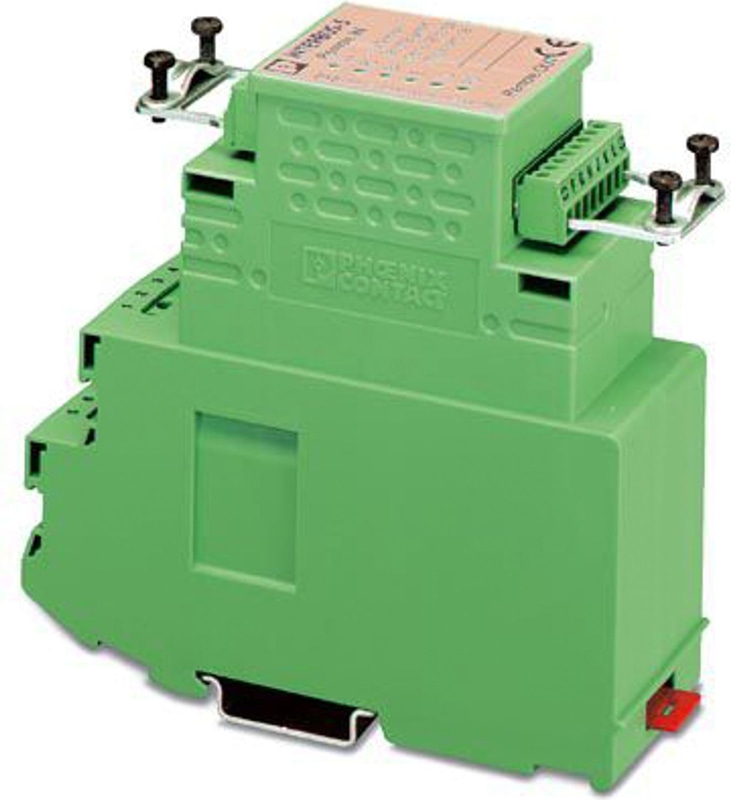

IB ST 24 V.24 - Function module
INTERBUS-ST module, with RS-232-C, RS-485 and RS-422 interface, for serial data transmission, IP20 protection, V.24
Technical Specifications
Dimensions
| Width | 44 mm |
| Height | 117 mm |
Material specifications
| Color | green |
Interfaces
| Output buffer | 4 kByte |
| Input buffer | 4 kByte |
ST local bus
| Connection Method | ST local bus connector |
| Transmission Speed | 110 ... 19200 bps (programmable) |
Product properties
| Product family | Smart Terminal ST |
| Type | modular |
| Type | INTERBUS Smart Terminal |
| Hardware handshake | RTS/CTS and DTR/DSR at RS-232-C |
Supply: Module electronics
| Connection Method | ST local bus connector |
| Designation | Communications power |
| Supply Voltage | 9 V DC (from the ST local bus) |
| Current consumption | typ. 130 mA (from the ST local bus) |
Supply: Periphery supply voltage
| Designation | US |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 20 V DC ... 30 V DC |
Electrical isolation/isolation of the voltage ranges
| Test voltage: Interfaces/Logic | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Interfaces/24 V supply | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Interfaces/Bus | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Interfaces/Ground conductor | 500 V AC, 50 Hz, 1 min. |
| Test voltage: 24 V supply/Bus | 500 V AC, 50 Hz, 1 min. |
| Test voltage: 24 V supply/Ground conductor | 500 V AC, 50 Hz, 1 min. |
Conductor connection
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm |
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm |
Ambient conditions
| Degree of Protection | IP20 |
Mounting
| Mounting Type | DIN rail mounting |
Accessories
