1415598
Official DistributorSKU
PHX1415598
MPN
NBC-MSX/ 5,0-94S/MSX SCO RAIL
Weight
0.337 kg
Series NBC-MSX

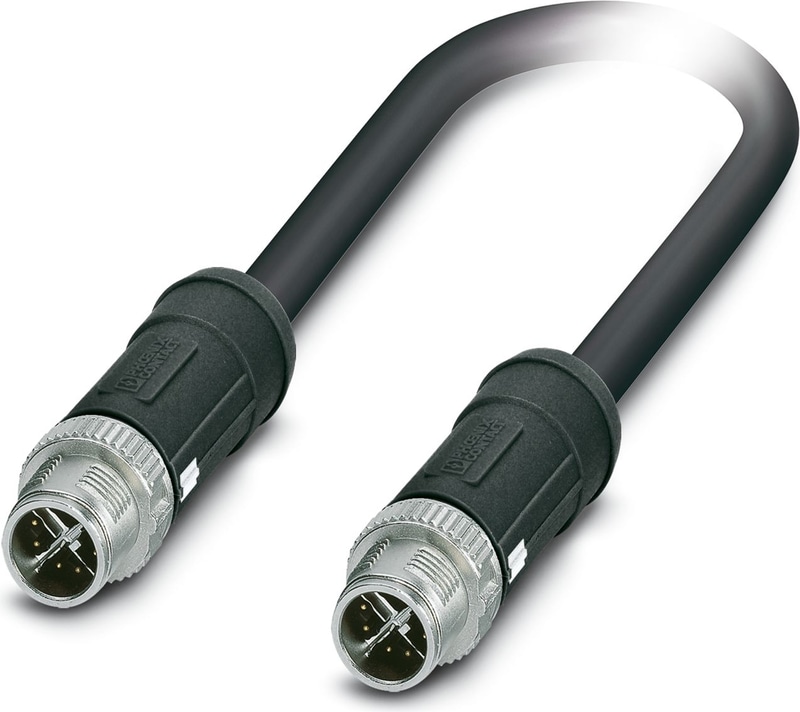

NBC-MSX/ 5,0-94S/MSX SCO RAIL - Network cable
Network cable, Ethernet CAT6A (10 Gbps), 8-position, PE-X halogen-free, black, shielded (Tinned copper braided shield), Plug straight M12 SPEEDCON, coding: X / IP65, on Plug straight M12 SPEEDCON, coding: X / IP65, cable length: 5 m
- Easy and safe: 100 % electrically tested plug-in components
- Securely locked by special vibration brake
- Resistant to temperature influences – tested for an extended temperature range and for resistance to temperature shocks
- Reliable signal transmission – 360° shielding in environments with electromagnetic interference
Technical Specifications
Product properties
| Application | Railway applications |
| Sensor Type | Ethernet |
| Number of Positions | 8 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | X |
Interfaces
| Bus system | Ethernet |
| Signal type/category | Ethernet CAT6A, 10 Gbps |
Signaling
| Status display | No |
| Status display present | No |
Electrical properties
| Nominal voltage UN | 48 V AC |
| Nominal voltage UN | 60 V DC |
| Nominal current IN | 0.5 A |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT6A |
Connection 1
| Type | Plug straight M12 SPEEDCON / IP65 |
| Number of Positions | 8 |
| Locking Type | SPEEDCON |
| Coding type | X (Data) |
| Handle color | black |
| Material | CuZn (Contact) |
| Material | Ni/Au (Contact surface) |
| Material | TPU (Contact carriers) |
| Material | PA 6.6 (Grip) |
| Material | Zinc die-cast, nickel-plated (Screw connection) |
| Standards/regulations | PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Insertion/withdrawal cycles | ≥ 100 |
| Insulation resistance | ≥ 100 MΩ |
| Tightening torque | 0.4 Nm |
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 90 °C |
Connection 2
| Type | Plug straight M12 SPEEDCON / IP65 |
| Number of Positions | 8 |
| Locking Type | SPEEDCON |
| Coding type | X (Data) |
| Handle color | black |
| Material | CuZn (Contact) |
| Material | Ni/Au (Contact surface) |
| Material | TPU (Contact carriers) |
| Material | PA 6.6 (Grip) |
| Material | Zinc die-cast, nickel-plated (Screw connection) |
| Standards/regulations | PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Insertion/withdrawal cycles | ≥ 100 |
| Insulation resistance | ≥ 100 MΩ |
| Tightening torque | 0.4 Nm |
| Degree of Protection | IP65 |
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -25 °C ... 90 °C |
Cable/line
| Cable Length | 5 m |
Ethernet BETAtrans® railway application CAT7 [94S]
| Cable weight | 59 kg/km |
| Copper weight | 28 kg/km |
| Number of Positions | 8 |
| Shielded | yes |
| Cable Type | Ethernet BETAtrans® railway application CAT7 [94S] |
| Conductor structure | 4x2xAWG26/7; S/FTP |
| Signal runtime | 4.4 ns/m |
| Signal speed | 0.78 c |
| Conductor structure signal line | 7x 0.16 mm |
| AWG Signal Line | 26 |
| Conductor Cross Section | 4x 2x 0.14 mm² |
| Wire diameter incl. insulation | 1.05 mm ±0.1 mm |
| External Cable Diameter | 6.60 mm ±0.2 mm |
| Outer sheath, material | PE-X |
| External sheath, color | black |
| Conductor material | Tin-plated Cu litz wires |
| Material wire insulation | Cell PE |
| Single wire, color | white-blue, white-orange, white-green, white-brown |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined polyester foil |
| Overall twist | 4 pairs, twisted |
| Max. conductor resistance | ≤ 145 Ω/km |
| Insulation resistance | ≥ 5 GΩ*km |
| Coupling resistance | 5.00 mΩ/m (at 10 MHz) |
| Wave impedance | 100 Ω ±5 Ω (at 100 MHz) |
| Working capacitance | 44 nF (per kilometer) |
| Nominal voltage, cable | 125 V AC (Uo) |
| Test voltage Core/Core | 1000 V AC (50 Hz, 1 min.) |
| Test voltage Core/Shield | 1000.00 V AC (50 Hz, 1 min.) |
| Minimum bending radius, fixed installation | 6 x D |
| Smallest bending radius, fixed installation | 40 mm |
| Tensile strength | ≤ 60 N (temporary) |
| Tensile strength | ≤ 15 N (Permanent) |
| Near end crosstalk attenuation (NEXT) | 100 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | 99 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | 95 dB (at 100 MHz) |
| Near end crosstalk attenuation (NEXT) | 92 dB (at 200 MHz) |
| Near end crosstalk attenuation (NEXT) | 90 dB (at 250 MHz) |
| Near end crosstalk attenuation (NEXT) | 83 dB (at 500 MHz) |
| Near end crosstalk attenuation (NEXT) | 81 dB (at 600 MHz) |
| Near end crosstalk attenuation (NEXT) | 80 dB (at 700 MHz) |
| Near end crosstalk attenuation (NEXT) | 77 dB (at 800 MHz) |
| Near end crosstalk attenuation (NEXT) | 75 dB (at 900 MHz) |
| Near end crosstalk attenuation (NEXT) | 74 dB (at 1000 MHz) |
| Near end crosstalk attenuation (NEXT) | 72 dB (at 1100 MHz) |
| Near end crosstalk attenuation (NEXT) | 70 dB (at 1200 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 97 dB (with 1 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 96 dB (at 10 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 92 dB (at 100 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 89 dB (at 200 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 87 dB (at 250 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 80 dB (at 500 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 78 dB (at 600 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 77 dB (at 700 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 74 dB (at 800 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 72 dB (at 900 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 71 dB (at 1000 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 69 dB (at 1100 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 67 dB (at 1200 MHz) |
| Return attenuation (RL) | 24 dB (with 1 MHz) |
| Return attenuation (RL) | 33.9 dB (at 10 MHz) |
| Return attenuation (RL) | 38.3 dB (at 100 MHz) |
| Return attenuation (RL) | 35.3 dB (at 200 MHz) |
| Return attenuation (RL) | 32.9 dB (at 250 MHz) |
| Return attenuation (RL) | 29.7 dB (at 500 MHz) |
| Return attenuation (RL) | 30.6 dB (at 600 MHz) |
| Return attenuation (RL) | 31 dB (at 700 MHz) |
| Return attenuation (RL) | 26.7 dB (at 800 MHz) |
| Return attenuation (RL) | 28.6 dB (at 900 MHz) |
| Return attenuation (RL) | 27.5 dB (at 1000 MHz) |
| Return attenuation (RL) | 26.9 dB (at 1100 MHz) |
| Return attenuation (RL) | 26.3 dB (at 1200 MHz) |
| Crosstalk attenuation (ACR) | 100.00 dB (with 1 MHz) |
| Crosstalk attenuation (ACR) | 99.00 dB (at 10 MHz) |
| Crosstalk attenuation (ACR) | 93.00 dB (at 100 MHz) |
| Crosstalk attenuation (ACR) | 88.00 dB (at 200 MHz) |
| Crosstalk attenuation (ACR) | 86.00 dB (at 250 MHz) |
| Crosstalk attenuation (ACR) | 78.00 dB (at 500 MHz) |
| Crosstalk attenuation (ACR) | 74.00 dB (at 600 MHz) |
| Crosstalk attenuation (ACR) | 72.00 dB (at 700 MHz) |
| Crosstalk attenuation (ACR) | 69.00 dB (at 800 MHz) |
| Crosstalk attenuation (ACR) | 67.00 dB (at 900 MHz) |
| Crosstalk attenuation (ACR) | 65.00 dB (at 1000 MHz) |
| Crosstalk attenuation (ACR) | 63.00 dB (at 1100 MHz) |
| Crosstalk attenuation (ACR) | 61.00 dB (at 1200 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 97 dB (with 1 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 96 dB (at 10 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 90 dB (at 100 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 85 dB (at 200 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 83 dB (at 250 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 75 dB (at 500 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 71 dB (at 600 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 69 dB (at 700 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 66 dB (at 800 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 64 dB (at 900 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 62 dB (at 1000 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 60 dB (at 1100 MHz) |
| Power-summated crosstalk attenuation (PS-ACR) | 58 dB (at 1200 MHz) |
| Shield attenuation | 0.25 dB (with 1 MHz) |
| Shield attenuation | 0.76 dB (at 10 MHz) |
| Shield attenuation | 2.49 dB (at 100 MHz) |
| Shield attenuation | 3.69 dB (at 200 MHz) |
| Shield attenuation | 4.18 dB (at 250 MHz) |
| Shield attenuation | 5.6 dB (at 500 MHz) |
| Shield attenuation | 6.74 dB (at 600 MHz) |
| Shield attenuation | 7.32 dB (at 700 MHz) |
| Shield attenuation | 7.89 dB (at 800 MHz) |
| Shield attenuation | 8.5 dB (at 900 MHz) |
| Shield attenuation | 9.11 dB (at 1000 MHz) |
| Shield attenuation | 9.5 dB (at 1100 MHz) |
| Shield attenuation | 9.9 dB (at 1200 MHz) |
| Shield attenuation | 60.00 dB (up to 1000 MHz) |
| Halogen-free | in accordance with EN 50267-2-1 |
| Halogen-free | in accordance with EN 60684-2 |
| Flame resistance | in accordance with EN 60332-1-2 |
| Flame resistance | EN 60332-3-25 |
| Flame resistance | in accordance with ISO 14572 5.21 (UN ECE-R 118.01) |
| Concentration of fumes | EN 61034-2 |
| Resistance to Oil | in accordance with EN 50306-4, 72 hours at 100°C, IRM 902 |
| Fire protection in rail vehicles | BS 6853 (Internal cable Ia, Ib, II/external cable Ia, Ib, II) |
| Fire protection in rail vehicles | DIN 5510-2 (Fire protection level 1, 2, 3, 4) |
| Fire protection in rail vehicles | EN 45545-2 |
| Fire protection in rail vehicles | EN 50306-4 |
| Fire protection in rail vehicles | NF F16-101 (Classification C/F1) |
| Fire protection in rail vehicles | NF F16-101 (Internal cable A1, A2, B/external cable A1, A2, B) |
| Fire protection in rail vehicles | NFPA 130 |
| Fire protection in rail vehicles | PN-K-02511 (Class A) |
| Fire protection in rail vehicles | UIC 564-2 (Class A) |
| Other resistance | Resistant to fuel (in accordance with EN 50306-4, 168 hours at 70°C, IRM 903) |
| Other resistance | Resistant to ozone (in accordance with EN 50306-4, 72 hours at 40°C, method B, volumetric concentration of 200 x 10-6) |
| Special Properties | HL1-HL3 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
Ambient conditions
| Degree of Protection | IP65/IP67 |
M12
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-109 |
| Standard designation | Shock, vibration |
| Standards/specifications | EN 50155 |
Accessories
Why Proax for Phoenix Contact 1415598?
Proax is an authorized distributor of Phoenix Contact 1415598 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
Recommended
NBC-MSX/ 5,0-94S SCO RAIL - Network cable, Ethernet CAT6A (10 Gbps), 8-position, PE-X halogen-free, black, shielded (Tinned copper braided shield), Plug straight M12 SPEEDCON, coding: X / IP65, on free cable end, cable length: 5 m
NBC-MSX/ 5,0-94C/MSX SCO - Network cable CAT5 (1 Gbps) CAT5 (1 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded (Tinned copper braided shield), Advanced Shielding Technology, Plug straight M12, coding: X / IP67, on Plug straight M12, coding: X / IP67, cable length: 5 m
NBC-MSX/ 2,0-94S/MSX SCO RAIL - Network cable, Ethernet CAT6A (10 Gbps), 8-position, PE-X halogen-free, black, shielded (Tinned copper braided shield), Plug straight M12 SPEEDCON, coding: X / IP65, on Plug straight M12 SPEEDCON, coding: X / IP65, cable length: 2 m- NBC-MSX/ 2,0-94S SCO RAIL - Network cable, Ethernet CAT6A (10 Gbps), 8-position, PE-X halogen-free, black, shielded (Tinned copper braided shield), Plug straight M12 SPEEDCON, coding: X / IP65, on free cable end, cable length: 2 m
- NBC-MSX/ 2,0-94C/MSX SCO - Network cable, Ethernet CAT5 (1 Gbps) CAT5 (1 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded (Tinned copper braided shield), Advanced Shielding Technology, Plug straight M12, coding: X / IP67, on Plug straight M12, coding: X / IP67, cable length: 2 m
NBC-MSX/10,0-94S/FSX-8QO SCO - Network cable, Ethernet CAT6A (10 Gbps), 8-position, Plug straight M12 SPEEDCON, coding: X / IP67, on 1414586 SACC-FSX-8QO SH ETH SCO, cable length: 10 m
NBC-MSX/10,0-94S/R4AC SCO - Network cable, Ethernet CAT6A, 8-position, Plug straight M12 SPEEDCON, coding: X, on Plug straight RJ45, cable length: 10 m- Network cable, Ethernet CAT6A (10 Gbps), 8-position, PE-X halogen-free, black, shielded, Plug straight M12 SPEEDCON, coding: X / IP65, on free cable end, cable length: 10 m
- NBC-MSX/1,0-94S/MSX SCO - Network cable, Ethernet CAT6A (10 Gbps), 8-pos., RAIL, RAL 5021 (water blue), shielded, straight M12 SPEEDCON/IP67 connector (X-coding) to straight M12 SPEEDCON/IP67 connector (X-coding), cable length: 1 m
- NBC-MSX/3,0-94S/MSX SCO - Network cable, Ethernet CAT6A (10 Gbps), 8-pos., RAIL, RAL 5021 (water blue), shielded, straight M12 SPEEDCON/IP67 connector (X-coding) to straight M12 SPEEDCON/IP67 connector (X-coding), cable length: 3 m
NBC-MSY/ 5,0-94H/MSY SCO - Hybrid cable, Ethernet hybrid CAT5 (100 Mbps), 8-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M12 SPEEDCON, coding: Y / IP67, on Plug straight M12 SPEEDCON, coding: Y / IP67, cable length: 5 m, Power with Ethernet (PWE)
NBC-MSY/ 5,0-94H SCO - Hybrid cable, Ethernet hybrid CAT5 (100 Mbps), 8-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M12 SPEEDCON, coding: Y / IP67, on free cable end, cable length: 5 m, Power with Ethernet (PWE)- NBC-MSY/ 2,0-94H/MSY SCO - Hybrid cable, Ethernet hybrid CAT5 (100 Mbps), 8-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M12 SPEEDCON, coding: Y / IP67, on Plug straight M12 SPEEDCON, coding: Y / IP67, cable length: 2 m, Power with Ethernet (PWE)
- NBC-MSY/ 2,0-94H SCO - Hybrid cable, Ethernet hybrid CAT5 (100 Mbps), 8-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M12 SPEEDCON, coding: Y / IP67, on free cable end, cable length: 2 m, Power with Ethernet (PWE)
- NBC-MSY/ 1,0-94H/MSY SCO - Hybrid cable, Ethernet hybrid CAT5 (100 Mbps), 8-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug straight M12 SPEEDCON, coding: Y / IP67, on Plug straight M12 SPEEDCON, coding: Y / IP67, cable length: 1 m, Power with Ethernet (PWE)
- Hybrid cable, Ethernet hybrid CAT5 (100 Mbps), 8-position, PUR halogen-free, black RAL 9005, shielded, Plug straight M12 SPEEDCON, coding: Y / IP67, on free cable end, cable length: 1 m, Power with Ethernet (PWE)
