Official DistributorSKU
MPN
EV-T2M3SE24-3AC32A-0,7M6,0E10
Weight
0.656 kg
Series EV-T

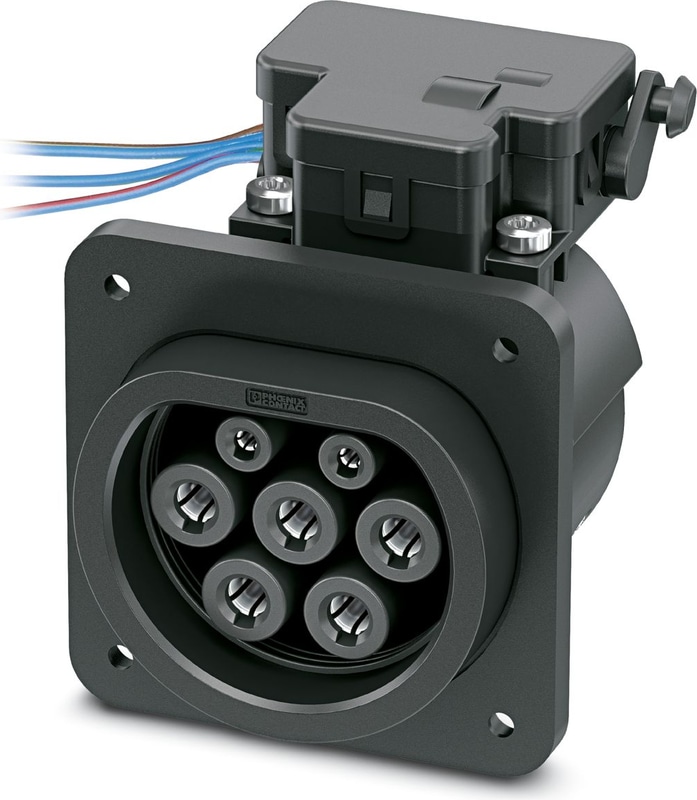

EV-T2M3SE24-3AC32A-0,7M6,0E10 - Infrastructure charging socket
CHARX connect, Infrastructure charging socket, for charging electric vehicles (EV) with alternating current (AC), Type 2, IEC 62196-2, 32 A / 480 V (AC), Single wires, length: 0.7 m, locking actuator: 24 V, 4-pos., Rear panel mounting, PHOENIX CONTACT logo
- Complete product range
- Uniform, space-saving installation space
- Available with your logo on request - for consistent branding of your charging station
- Integrated interlock during charging
- Manual emergency release of the locking actuator
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Technical Specifications
Product properties
| Product family | CHARX connect |
| Application | for charging electric vehicles (EV) with alternating current (AC) |
| Application | compatible with infrastructure charging plugs |
| Affixed logo | PHOENIX CONTACT logo |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
Electrical properties
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Type of charging current | AC 3-phase |
| Charging power | 26.6 kW |
| Charging current | 32 A |
Power contact
| Number | 5 (L1, L2, L3, N, PE) |
| Rated voltage | 480 V AC |
| Rated current | 32 A |
Signal contact
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
Locking actuator
| Operating Voltage | 24 V |
| Note number of positions | 4-pos. |
| Position of the locking actuator | top center |
| Operating Voltage | 24 V |
| Note number of positions | 4-pos. |
| Position of the locking actuator | top center |
| Possible power supply range at the motor | 22 V ... 26 V |
| Maximum voltage for locking detection | 30 V |
| Typical motor current for locking | 0.05 A |
| Reverse current of the motor | max. 0.5 A |
| Max. dwell time with reverse current | 1 s |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Service life insertion cycles | > 10000 load cycles |
| Lock recognition | available |
| Mechanical emergency release | available |
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
| Cable Length | 0.5 m |
| Cable structure | 4 x 0.5 mm² |
| Bending Radius | min. 15 mm |
| External Cable Diameter | 1.60 mm ±0.02 mm |
| Cable weight | 7.00 kg/km |
| Cable resistance | ≤ 37.1 Ω/m |
| Single wire, color | BU/RD, BU/GN, BU/YE, BU/BN |
Cable/line
| Cable Length | 0.7 m (AC cables) |
| Cable Length | 0.5 m (Locking actuator cables) |
| Cable Type | Single wires |
| Cable structure | 5x 6.0 mm² + 2x 0.5 mm² |
Mechanical data
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Ambient conditions
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
Standards
| Standards/regulations | IEC 62196-2 |
Mounting
| Mounting type Infrastructure charging socket | Rear panel mounting (0 to 90 degree frontal inclination possible) |
| Mounting type Infrastructure charging socket | Front mounting (only possible when the locking actuator is removed (see EV-T2M3SE…E00 versions)) |
| Mounting type Protective cover | rear (available separately) |
| Mounting hole diameter | 7.00 mm (ø) |
Accessories
EV-T2M3S-E-LOCK12V - CHARX connect modular, Locking, Accessories, for attaching to infrastructure charging sockets, Type 2, GB/T, IEC 61851-1, Single wires, length: 0.5 m, locking actuator: 12 V, 4-pos.
EV-CC-AC1-M3-CBC-SER-HS - The EV-CC-AC1-M3-CBC-SER-HS charging controller with housing for DIN rail mounting is used for charging electric vehicles at 3-phase AC networks according to IEC 61851-1, Mode 3. All charging functions, comprehensive configuration settings as well as a locking controller are already integrated.
