EV-T2M4CC-DC250A-7,0M70ESBK11
This product is Not Cancellable/Not Returnable
Series EV-T

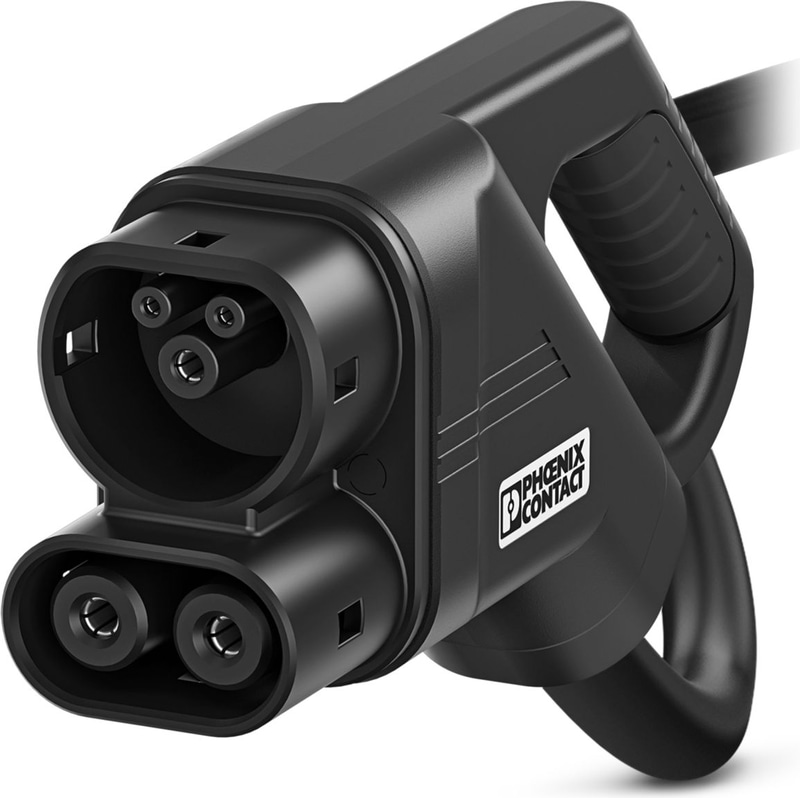

EV-T2M4CC-DC250A-7,0M70ESBK11 - DC charging cable
CHARX connect standard, CCS type 2, DC charging cable, up to 500 A in Boost mode, 250 A Permanent, 1000 V DC, with vehicle charging connector and open cable end, cable: 7 m, black, straight, with connected PP contact, with replaceable mating face frame, with analog temperature sensors, PHOENIX CONTACT logo, IEC 62196-3, for charging electric vehicles (EV) with direct current (DC)
- Complete product range
- The right charging cable for every application, from the carport to the charging park
- Convenient handling due to the ergonomic design
- Available with your logo on request - for consistent branding of your charging station
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Documents
Technical Specifications
Product properties
| Product family | CHARX connect standard |
| Application | for charging electric vehicles (EV) with direct current (DC) |
| Application | for installation at charging stations for electromobility (EVSE) |
| Type | DC charging cable |
| Type | with vehicle charging connector and open cable end |
| Design | with connected PP contact |
| Design | with replaceable mating face frame |
| Design | with analog temperature sensors |
| Technology | Combined Charging System |
| Affixed logo | PHOENIX CONTACT logo |
| Label | 14.1 mm x 44.8 mm (customer logo on request) |
| Charging standard | CCS type 2 |
| Charging mode | Mode 4 |
Electrical properties
| Type of signal transmission | Pulse width modulation with modulated Powerline communication in accordance with ISO/IEC 15118 / DIN SPEC 70121 |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Coding | 1500 Ω (between PE and PP) |
| Coding | PP signal contact connected to cable |
| Temperature monitoring | 2x Pt 1000 |
| Type of charging current | DC |
| Charging power | 250 kW |
| Charging current | 250 A DC |
| Type of charging current | DC Boost Mode |
| Charging power | up to 500 kW (Boost Mode, depending on the ambient conditions. For detailed information, see the packing slip in the download area for this item.) |
| Charging current | up to 500 A DC |
Power contact
| Number | 3 (PE, DC+, DC-) |
| Rated voltage | 1000 V DC |
| Rated current | 250 A (up to 40 °C) |
Signal contact
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
Temperature sensors (Pt 1000)
| Sensor Type | Pt 1000 |
| Standards/regulations | DIN EN 60751 |
| Attachment point | Sensor for the DC contacts |
| Switch-off temperature | 90 °C ±1 K (equivalent to a Pt 1000 value of 1346.5 Ω) |
| Long-term stability | 0.06 % (after 1000 hours at 130 °C) |
| Recommended measured current | 1 mA (1 V at 0°C) |
| Coefficient | 3850 ppm/K |
| Ambient Temperature | -50 °C ... 130 °C (Operation) |
Vehicle charging connector
| Width | 75 mm |
| Height | 139 mm |
| Depth | 267 mm |
Material specifications
| Color (Housing) | black (9005) |
| Color (Handle area) | gray (7042) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | TPE-U |
| Material (Contact surface) | Silver |
Cable/line
| Cable Length | 7 m ±45 mm |
| Wiring standards/regulations | DIN EN 50620 |
| Wiring certifications | VDE-Reg. |
| Cable weight | max. 2300.00 kg/km |
| Cable Type | Class 6 |
| Cable Type | straight |
| Cable structure | 2 x 70 mm² + 1 x 35 mm² + 3 x 2 x 0.75 mm² |
| External Cable Diameter | 32.00 mm ±0.4 mm |
| Outer sheath, material | TPE-U |
| Stripping length of the sheath | 140 mm ±10 mm |
| Stripping length | 140 mm ±10 mm |
| Cable resistance | ≤ 0.000272 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending Radius | min. 320 mm (10x Ø) |
Mechanical data
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Ambient conditions
| Degree of protection (Vehicle charging connector) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Ambient Temperature (Operation) | -30 °C ... 40 °C |
| Ambient Temperature (Operation) | max. 55 °C (Current reduction required, observe the DC contact temperature limit value of 90°C) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
Standards
| Standards/regulations | IEC 62196-3 |
