Official DistributorSKU
MPN
EV-T2M3C-1AC32A-4,0M6,0ESBK00
Weight
1.991 kg
Series EV-T

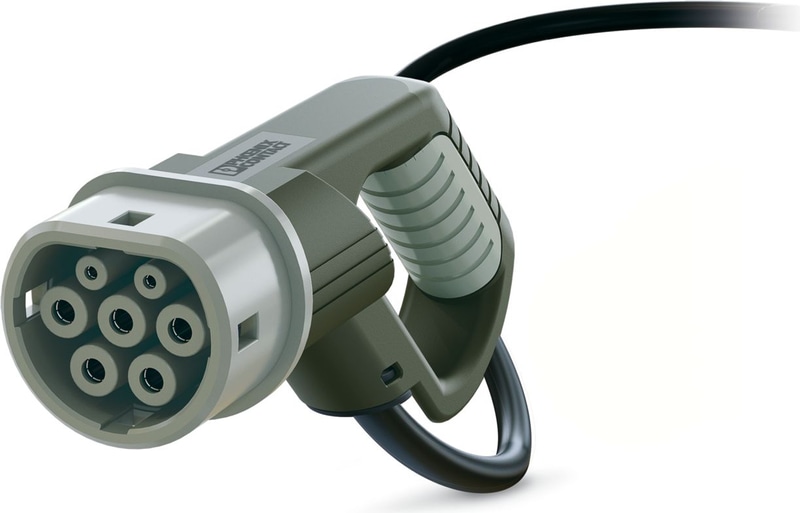

EV-T2M3C-1AC32A-4,0M6,0ESBK00 - AC charging cable
CHARX connect, AC charging cable with Vehicle Connector, open cable end, with protective cap, Type 2, IEC 62196-2, cable: 4 m, straight
- Consistent design of all Phoenix Contact Vehicle Connectors and Infrastructure Plugs
- Silver-plated surface of the power and signal contacts
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
- Convenient handling, thanks to the ergonomic handle and additional, rubber grip components
Technical Specifications
Product properties
| Product family | CHARX connect |
| Application | AC charging cable with Vehicle Connector, open cable end, with protective cap |
| Charging mode | Mode 3, Case C |
| Charging standard | Type 2 |
Electrical properties
| Type of charging current | AC single-phase |
| Charging power | 8 kW |
| Charging current | 32 A |
Cable/line
| Cable Length | 4 m |
| Wiring standards/regulations | prEN 50620/DIN EN 50620 |
| Wiring certifications | VDE |
| Cable weight | max. 305.00 kg/km |
| Cable Type | Class 5 |
| Cable Type | straight |
| Cable structure | 3 x 6.0 mm² + 1 x 0.5 mm² |
| External Cable Diameter | 12.80 mm ±0.4 mm |
| Outer sheath, material | TPE-U |
| Stripping length of the sheath | 45 mm ±10 mm |
| Stripping length | 45 mm ±10 mm |
| Cable resistance | ≤ 0.0033 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending Radius | min. 96 mm (7.5x diameter) |
| Cable Length | 4 m |
| Stripping length | 45 mm ±10 mm |
| External Cable Diameter | 12.80 mm ±0.4 mm |
| Cable Type | Class 5 |
| Wiring certifications | VDE |
| Wiring standards/regulations | prEN 50620/DIN EN 50620 |
| Cable resistance | ≤ 0.0033 Ω/m (based on a power core, at an ambient temperature of 20°C) |
Standards
| Standards/regulations | IEC 62196-2 |
Why Proax for Phoenix Contact 1405198?
Proax is an authorized distributor of Phoenix Contact 1405198 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
