Official DistributorSKU
MPN
EV-T1L2CC-DC125A-25,0FT1ASBK01
Series EV-T

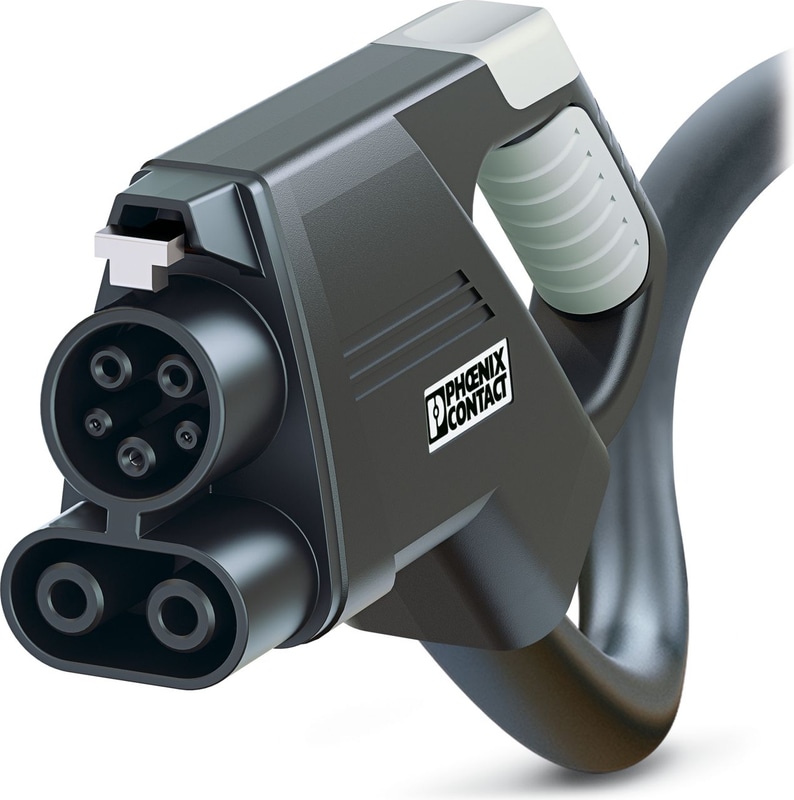

EV-T1L2CC-DC125A-25,0FT1ASBK01 - DC charging cable
CHARX connect, DC charging cable with vehicle connector, open cable end, CCS type 1, SAE J1772, IEC 62196-3, cable: 25 ft, NOTE: Cable management may be required.
- Consistent design of all Phoenix Contact Vehicle Connectors and Infrastructure Plugs
- Silver-plated surface of the power and signal contacts
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
- Convenient handling, thanks to the ergonomic handle and additional, rubber grip components
- Integrated temperature sensors for monitoring the temperature at the power contacts
Technical Specifications
Notes
| General | NOTE: Cable management may be required. |
| General | Cable management is required in certain regions if the cable length exceeds 5.0 m (Switzerland) or 7.5 m (USA) (IEC 61851-1). |
Product properties
| Product family | CHARX connect |
| Application | DC charging cable with vehicle connector, open cable end |
| Application | Combined Charging System |
| Charging standard | CCS type 1 |
| Charging mode | Mode 4 |
Electrical properties
| Type of charging current | DC |
| Charging power | 125 kW |
| Charging current | 125 A |
Temperature sensors (Pt 1000)
| Sensor Type | Pt 1000 |
| Standards/regulations | DIN EN 60751 |
| Attachment point | Sensor for the DC contacts |
| Switch-off temperature | 90 °C ±1 K (equivalent to a Pt 1000 value of 1346.5 Ω) |
| Long-term stability | 0.06 % (after 1000 hours at 130 °C) |
| Recommended measured current | 1 mA (1 V at 0°C) |
| Coefficient | 3850 ppm/K |
| Ambient Temperature | -50 °C ... 130 °C (Operation) |
Cable/line
| Cable Length | 25 ft |
| Stripping length of the sheath | 130 mm ±20 mm |
| Stripping length | 130 mm ±20 mm |
Standards
| Standards/regulations | SAE J1772 |
| Standards/regulations | IEC 62196-3 |
Why Proax for Phoenix Contact 1628114?
Proax is an authorized distributor of Phoenix Contact 1628114 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
