Official DistributorSKU
MPN
EV-T2SC
Weight
0.108 kg
Series EV-T

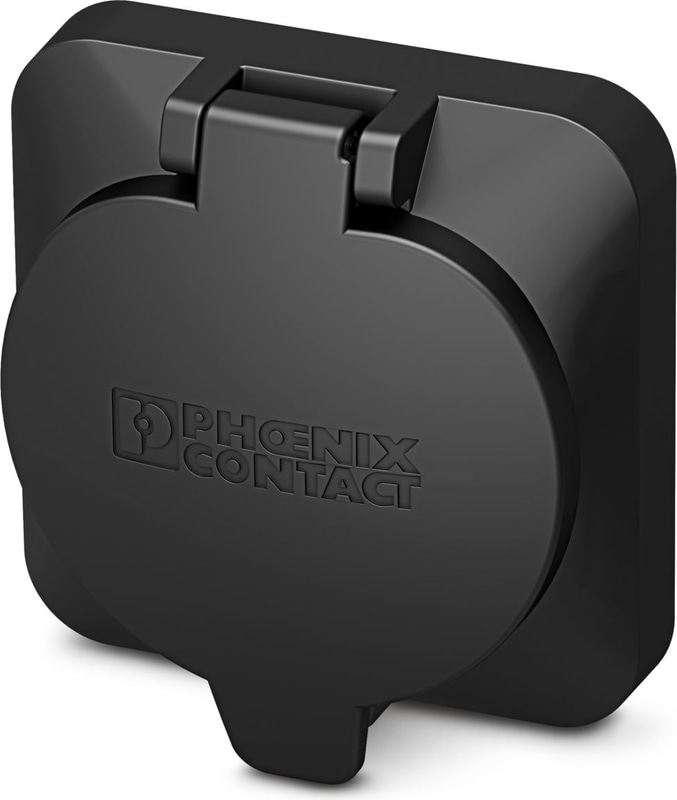

EV-T2SC - Protective cover
CHARX connect basic, Protective cover, square, Accessories, with self-locking mechanism, for attaching to infrastructure charging sockets, Type 2, IEC 62196-2, Front mounting, M5 thread, housing: black, Embossed PHOENIX CONTACT logo
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
- Individual branding, thanks to the use your own logo
- Reliable protection of your socket outlet from weather and vandalism
Technical Specifications
Product properties
| Product family | CHARX connect basic |
| Application | for attaching to infrastructure charging sockets |
| Design (Protective cover) | square |
| Type | Accessories |
| Design | with self-locking mechanism |
| Compatibility | The square basic protective cover version is not compatible with the shutter. Choose a premium and/or round protective cover version for this. |
| Affixed logo | Embossed PHOENIX CONTACT logo |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
Protective cover
| Width | 85 mm |
| Height | 93.7 mm |
| Depth | 32.5 mm |
Bore dimensions
| Width | 60 mm |
| Height | 60 mm |
Material specifications
| Color (Housing) | black (9005) |
| Material (Housing) | Plastic |
Mechanical properties
| Type of cover movement | Self-locking |
Ambient conditions
| Degree of protection (Protective cover) | IP54 |
| Degree of protection (Protective cover) | IK08 |
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
Standards
| Standards/regulations | IEC 62196-2 |
Mounting
| Mounting type Protective cover | Front mounting (rear screw connection) |
| Fixing screws | M5 thread |
Accessories
EV-T2M3SE12-3AC32A-0,7M6,0E10, CHARX connect, Socket Outlet, rear protective cover screw connection, For charging electric vehicles (EV) with alternating current (AC), Compatible with infrastructure charging plugs, Type 2, IEC 62196-2, 32 A / 480 V (AC), Single wires, length: 0.7 m, Locking actuator: 12 V, 4-position, Rear panel mounting, Generation 1, “PHOENIX CONTACT
EV-T2M3SE24-3AC32A-0,7M6,0E10 - CHARX connect, Infrastructure charging socket, for charging electric vehicles (EV) with alternating current (AC), Type 2, IEC 62196-2, 32 A / 480 V (AC), Single wires, length: 0.7 m, locking actuator: 24 V, 4-pos., Rear panel mounting, PHOENIX CONTACT logo
Why Proax for Phoenix Contact 1405217?
Proax is an authorized distributor of Phoenix Contact 1405217 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
