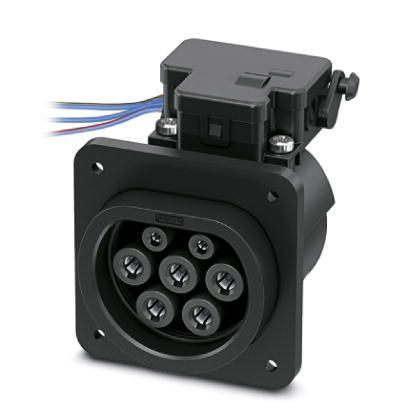

Socket Outlet EV-T2M3SE12-3AC32A-0,7M6,0E10
CHARX connect, Socket Outlet, rear protective cover screw connection, For charging electric vehicles (EV) with alternating current (AC), Compatible with infrastructure charging plugs, Type 2, IEC 62196-2, 32 A / 480 V (AC), Single wires, length: 0.7 m, Locking actuator: 12 V, 4-position, Rear panel mounting, Generation 1, “PHOENIX CONTACT
- Uniform, space-saving installation space of all Phoenix Contact Infrastructure Socket Outlets
- Silver-plated surface of the power and signal contacts
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
- Manual emergency release of the locking actuator
- Integrated interlock during charging
Technical Specifications
Product definition
| Type | rear protective cover screw connection |
| Application | For charging electric vehicles (EV) with alternating current (AC) |
| Application | Compatible with infrastructure charging plugs |
| Affixed logo | “PHOENIX CONTACT |
| Design | Generation 1 |
| Standards/regulations | IEC 62196-2 |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
| Note on the connection method | Crimp connection, cannot be disconnected |
Dimensions
| Height | 96 mm |
| Width | 75 mm |
| Depth | 76.2 mm |
| Bore dimensions | 60 mm x 60 mm |
| Conductor length | 0.7 m (AC cables) |
| Conductor length | 0.5 m (Locking actuator cables) |
| Cable structure | 5x 6.0 mm² + 2x 0.5 mm² |
| Type of conductor | Single wires |
Ambient conditions
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of Protection | IP44 (plugged in) |
| Degree of Protection | IP54 (with protective cover, see accessories) |
Electrical properties
| Charging power (nominal operation) | 22 kW |
| Type of charging current | AC 3-phase |
| Number of phases | 3 |
| Number of power contacts | 5 (L1, L2, L3, N, PE) |
| Rated current of power contacts | 32 A |
| Rated voltage for power contacts | 480 V AC |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Mounting
| Possible mounting positions | Rear panel mounting |
| Possible mounting positions | Front mounting only possible when the locking actuator is removed (see EV-T2M3SE...E00 versions) |
| Restrictions to mounting position | Only 0 to 90 degree frontal inclination possible, see figure |
| Mounting position of the locking actuator | Top center |
| Screw connection of a protective cover | Only rear mounting possible |
| Max. wall thickness | max. 50 mm (Rear panel mounting, normative maximum specification for infrastructure plug) |
| Max. wall thickness | max. 28 mm (Rear mounting, normative maximum specification for infrastructure plug when using protective cover 1405217) |
| Max. wall thickness | max. 10 mm (Front mounting, when using the locking mechanism) |
| Mounting hole diameter | 7.00 mm (ø) |
Design
| Design line | Generation 1 |
| Housing color | black |
| Customer variations | On request |
Material
| Material | Plastic |
| Material surface of contacts | Ag |
Locking
| Locking Type | Locking in the inserted state with a locking mechanism |
Locking actuator
| Number of positions of theconnectors | 4 |
| Operating Voltage | 12 V (Typical power supply at the motor) |
| Possible power supply range at the motor | 9 V ... 16 V |
| Maximum voltage for locking detection | 30 V |
| Typical motor current for locking | 0.2 A |
| Reverse current of the motor | max. 1 A |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Service life insertion cycles | > 10000 load cycles |
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
| Cable Length | 0.5 m |
| Cable structure | 4 x 0.5 mm² |
| Lock recognition | available |
| Mechanical emergency release | available |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 10; |
| China RoHS | For details about hazardous substances go to tab “Downloads |
Accessories
EV-T2M3S-E-LOCK12V - CHARX connect modular, Locking, Accessories, for attaching to infrastructure charging sockets, Type 2, GB/T, IEC 61851-1, Single wires, length: 0.5 m, locking actuator: 12 V, 4-pos.
EV-CC-AC1-M3-CBC-SER-HS - The EV-CC-AC1-M3-CBC-SER-HS charging controller with housing for DIN rail mounting is used for charging electric vehicles at 3-phase AC networks according to IEC 61851-1, Mode 3. All charging functions, comprehensive configuration settings as well as a locking controller are already integrated.
