Official DistributorSKU
MPN
EV-GBSCO
Weight
0.058 kg

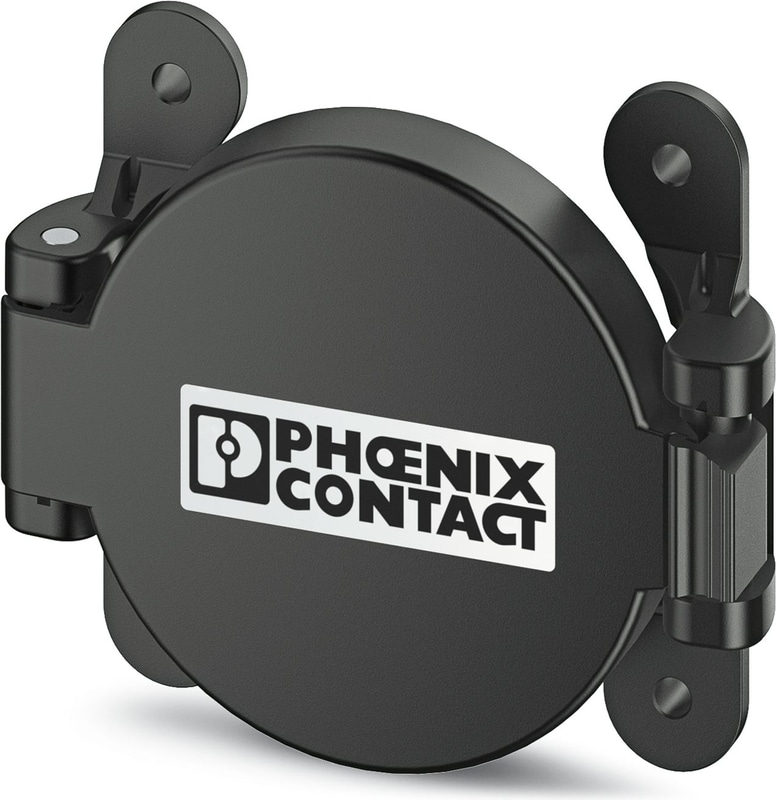

EV-GBSCO - Protective cover
CHARX connect basic, Protective cover, circular, Accessories, with self-opening mechanism, for attaching to infrastructure charging sockets, GB/T, Type 2, GB/T 20234.2, IEC 62196-2, Front mounting, housing: black, Adhered "PHOENIX CONTACT" sticker
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
- Individual branding, thanks to the use your own logo
- Reliable protection of your socket outlet from weather and vandalism
Technical Specifications
Product properties
| Product family | CHARX connect basic |
| Application | for attaching to infrastructure charging sockets |
| Design (Protective cover) | circular |
| Type | Accessories |
| Design | with self-opening mechanism |
| Affixed logo | Adhered "PHOENIX CONTACT" sticker |
| Label | 14.1 mm x 44.8 mm (customer logo on request) |
| Charging standard | GB/T |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
Protective cover
| Width | 76.6 mm |
| Height | 90.5 mm |
| Depth | 24.7 mm |
Bore dimensions
| Width | 60 mm |
| Height | 60 mm |
Material specifications
| Color (Housing) | black (9005) |
| Material (Housing) | Plastic |
| Flammability rating according to UL 94 | V0 () |
Ambient conditions
| Degree of protection (Protective cover) | IP54 (plugged in) |
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Standards
| Standards/regulations | GB/T 20234.2 |
| Standards/regulations | IEC 62196-2 |
Mounting
| Mounting type Protective cover | Front mounting (rear screw connection) |
| Mounting type Infrastructure charging socket | right or left-sided installation |
| Mounting hole diameter | 4.30 mm (ø) |
Why Proax for Phoenix Contact 1623415?
Proax is an authorized distributor of Phoenix Contact 1623415 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
