1405248
Official DistributorSKU
PHX1405248
This product is Not Cancellable/Not Returnable
This product has been discontinued

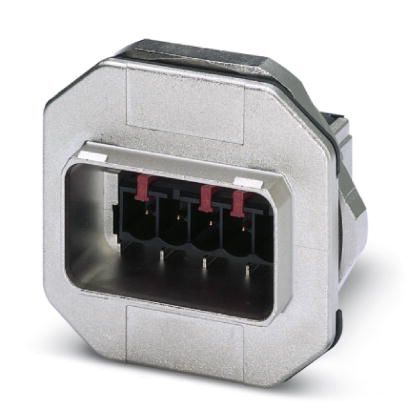

Panel mounting frames VS-PPC-F2-MSTB-MNNA-1C-SPSA5
MSTB panel mounting frame, IP67, for push-pull interlocking, metal, with integrated contact insert for conductor connection, spring-cage connection, 24 V, for round mounting cutout, with seal, without mounting screws
Technical Specifications
Mechanical characteristics
| Connection Method | Spring-cage connection |
| AWG solid min. | 18 |
| AWG solid max. | 13 |
| Degree of pollution | 2 |
| Locking Type | Push Pull |
| Conductor Cross Section | 0.75 mm² ... 2.5 mm² |
| Weight | 118.2 g |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
Material data
| Contact surface material | Au/Ni |
| Housing Material | Zinc die-cast |
| Housing surface material | Nickel-plated |
| Width | 46 mm |
| Height | 50 mm |
| Length | 41.8 mm |
| Housing Material | Zinc die-cast |
| Housing surface material 1 | Cu/Ni |
Electrical characteristics
| Number of Positions | 5 |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 24 V |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads |
Why Proax for Phoenix Contact 1405248?
Proax is an authorized distributor of Phoenix Contact 1405248 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
