1078801
Official DistributorSKU
PHX1078801
MPN
PLC-RPT- 12DC/ 1IC/ACT
Weight
0.071 kg
Series PLC-RPT

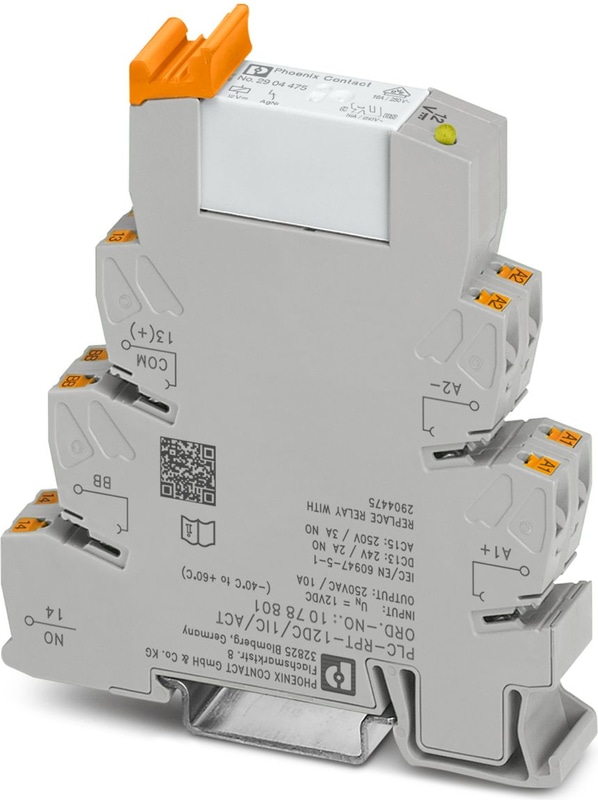

PLC-RPT- 12DC/ 1IC/ACT - Relay Module
PLC-INTERFACE for high switch-on currents, consisting of PLC-BPT.../1 IC/ACT basic terminal block with push-in connection and plug-in miniature relay, for mounting on DIN rail NS 35/7,5, max. switch-on current up to 130 A, 1 N/O contact, input voltage 12 V DC
- Direct connection of load return line thanks to actuator version
- Safe isolation between coil and contact side
- Max. inrush current of 130 A
- Functional plug-in bridges
PLC-RPT
Phoenix Contact PLC-RPT Series – Compact relay modules for reliable switching in control cabinets and industrial automation systems. Features slim DIN-rail design with push-in terminals for tool-free installation.
Series Options:
- Universal Relays: Standard switching with single/dual changeover contacts
- High-Current (HC): Up to 10 A continuous load capacity
- Gold-Plated (AU): Optimized for low-power signal switching
- Manual Switch (MS): Integrated test buttons and LED indication
- Voltage Range: 12 V DC to 230 V AC/DC compatibility
Key Benefits: Space-saving slim profile, tool-free push-in connections, comprehensive voltage and contact options, LED status indication available, and reliable performance in demanding industrial environments.
Applications: Industrial automation, control panel switching, signal isolation, and load control.
Technical Specifications
Notes
| Notes on operation | Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500.... |
| Notes on operation | The PLC-ATP separating plate should be installed for safe isolation between adjacent modules |
| Assembly instruction: | The PLC-ATP separating plate is required at the start and end of every PLC terminal strip. |
| Notes on operation | The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact. |
Product properties
| Product family | PLC-INTERFACE |
| Application | high inrush currents |
| Operating mode | 100% operating factor |
| Mechanical service life | 3x 10⁷ cycles |
Insulation characteristics
| Insulation | Safe isolation, reinforced insulation |
Insulation characteristics: Standards/regulations
| Insulation | Safe isolation, reinforced insulation |
| Overvoltage category | III |
| Pollution degree | 3 |
Electrical properties
| Maximum power dissipation for nominal condition | 0.4 W |
| Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) |
Standards/regulations
| Rated Insulation Voltage | 250 V AC |
| Rated surge voltage | 6 kV |
Coil side
| Nominal input voltage UN | 12 V DC |
| Input voltage range | 10.32 V DC ... 16.8 V DC (20 °C) |
| Drive and function | monostable |
| Drive (polarity) | polarized |
| Typical input current at UN | 33 mA |
| Typical response time | 8 ms |
| Typical release time | 10 ms |
| Coil Voltage | 12 V DC |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Protective circuit | Surge protection; Freewheeling diode |
| Operating voltage display | Yellow LED |
Switching
| Contact switching type | 1 N/O contact |
| Type of switch contact | Single contact |
| Contact Material | AgSnO |
| Maximum Switching Voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) |
| Minimum Switching Voltage | 12 V (100 mA) |
| Limiting Continuous Current | 6 A |
| Limiting Continuous Current | 10 A (the value is permissible if both connections 13, both connections 14 and both connections BB are bridged) |
| Maximum Inrush Current | 80 A (20 ms) |
| Maximum Inrush Current | 130 A (peak, at capacitive load, 230 V AC, 24 μF) |
| Min. switching current | 100 mA (12 V) |
| Interrupting rating (ohmic load) max. | 144 W (at 24 V DC) |
| Interrupting rating (ohmic load) max. | 58 W (at 48 V DC) |
| Interrupting rating (ohmic load) max. | 48 W (at 60 V DC) |
| Interrupting rating (ohmic load) max. | 50 W (at 110 V DC) |
| Interrupting rating (ohmic load) max. | 80 W (at 220 V DC) |
| Interrupting rating (ohmic load) max. | 85 W (for 250 V DC) |
| Interrupting rating (ohmic load) max. | 1500 VA (for 250 V AC) |
| Interrupting rating (ohmic load) max. bridged | 240 W (for 24 V DC. The value is permissible if both connections 13, both connections 14 and both connections BB are bridged.) |
| Interrupting rating (ohmic load) max. bridged | 2500 VA (for 250 V AC. The value is permissible if both connections 13, both connections 14 and both connections BB are bridged.) |
| Switching capacity min. | 1200 mW |
| Switching capacity | 2 A (at 24 V, DC13) |
| Switching capacity | 0.2 A (at 110 V, DC13) |
| Switching capacity | 0.2 A (at 250 V, DC13) |
| Switching capacity | 6 A (at 24 V, AC15) |
| Switching capacity | 6 A (at 120 V, AC15) |
| Switching capacity | 6 A (at 250 V, AC15) |
Connection data
| Connection Method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² (Single ferrule) |
| Conductor cross section flexible | 2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
| Conductor cross section AWG | 26 ... 14 |
Dimensions
| Width | 14 mm |
| Height | 80 mm |
| Depth | 94 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 (Housing) |
Ambient conditions
| Degree of protection (Relay) | RT II (Relay) |
| Degree of protection (Relay base) | IP20 (Relay base) |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient Temperature (Operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m |
CE
| Certificate | CE-compliant |
UKCA
| Certificate | UKCA-compliant |
Shipbuilding approval
| Certificate | TAE0000196 |
Corrosive gas test
| Identification | ISA-S71.04. G3 Harsh Group |
| Identification | EN 60068-2-60 |
DNV GL data
| Temperature | D |
| Humidity | A |
| Vibration | B/C |
| EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board |
EMC data
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Electromagnetic compatibility | Conformance with EMC directive |
Standards/regulations
| Standards/regulations | IEC 60947-5-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Accessories
PLC-ESK GY - Power terminal block, for the input of up to four potentials, for mounting on NS 35/7.5
NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver- NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
