Official DistributorSKU
MPN
PI-EX-SD-21-60
Weight
0.099 kg
This product is Not Cancellable/Not Returnable
Series PI-EX-SD

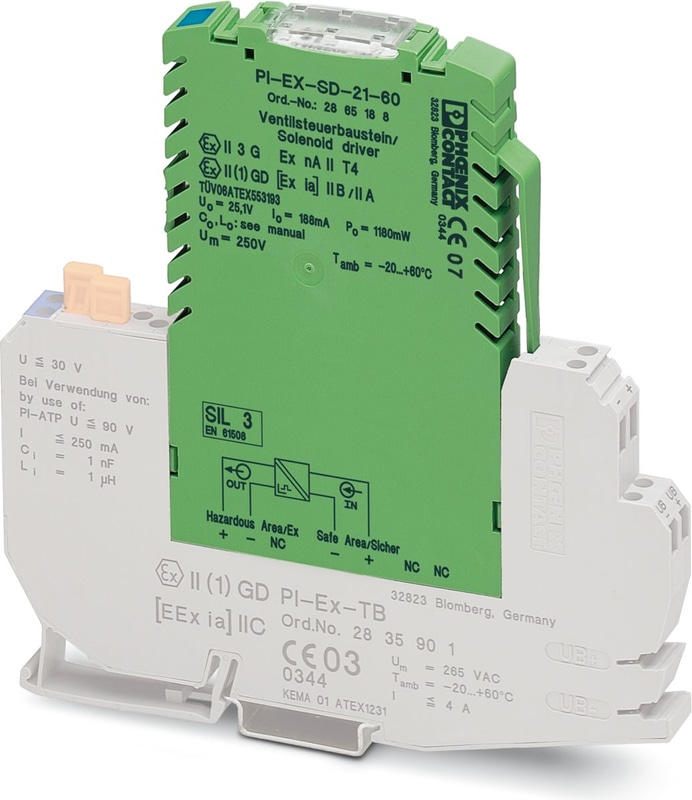

PI-EX-SD-21-60 - Solenoid driver
Ex i solenoid driver, pluggable. To control intrinsically safe solenoid valves, alarm modules as well as simple electric equipment installed in Ex areas. For Group IIB gases, loop-powered. Electrical isolation.
Technical Specifications
Product properties
| Compatible Valve | ASCO Coil 302 (12 V) |
| Compatible Valve | ASCO Coil 302 (24 V) |
| Compatible Valve | FESTO Coil MFH-...IA-SA-EX GBXE022AIAD03 |
| Compatible Valve | FESTO Coil (J)MFH-...BIA-SA-EX GBXE022AIAD03 |
| Compatible Valve | Norgren Herion Coil 2050 |
| Compatible Valve | Norgren Herion Coil 2051 |
| Compatible Valve | Norgren Herion Coil 2052 |
| Compatible Valve | Norgren Herion Coil 2053 |
| Compatible Valve | Parker Coil VZ95 482160.01 EEx ia IIB T6 |
| Note | This is an extract of possible combinations of valves and solenoid drivers. |
Electrical properties
| Maximum temperature coefficient | 0.01 %/K |
Electrical isolation Input/output
| Electrical isolation | 375 V (Peak value as per EN 50020 / EN 60079-11) |
| Test voltage | 2.5 kV AC (50 Hz, 60 s) |
Supply
| Max. current consumption | < 110 mA (at 24 V) |
| Power dissipation | max. 1.5 W (at 24 V) |
Signal: Voltage
| Number of Inputs | 1 |
| Voltage input signal | 20 V DC ... 30 V DC |
| Current Input Signal | 15 mA DC ... 90 mA (85 mA for Ue = 24 V DC) |
| Number of Outputs | 1 |
| Output Voltage | 12.5 V (for 60 mA) |
| Output resistor | 136 Ω (Internal resistance Ri) |
| Current limitation | 58 mA |
| Response time | < 30 ms |
| Non-load voltage | 21.4 V |
| Short-circuit-proof | yes |
Safety data
| Max. output voltage Uo | 25.1 V |
| Max. output current Io | 188 mA |
| Max. output power Po | 1180 mW |
| Safety-related maximum voltage Um | 250 V AC (125 V DC) |
| IIA: Max. external inductivity Lo / Max. external capacitance Co | 5.2 mH / 0.51 µF |
| IIB: Max. external inductivity Lo / Max. external capacitance Co | 2.7 mH / 0.28 µF |
Signaling
| Status display | Yellow LED (status display) |
| Status display | Red LED (line errors) |
Dimensions
| Width | 12.4 mm |
| Height | 79 mm |
| Depth | 118.4 mm |
Material specifications
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PBT and polyamide PA non-reinforced |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (relative humidity, non-condensing) |
CE
| Certificate | CE-compliant |
ATEX
| Identification | II (1) G [Ex ia Ga] IIC |
| Identification | II (1) D [Ex ia Da] IIIC |
| Identification | II 3 G Ex nA IIC T4 Gc |
| Certificate | PxCIF07ATEX2865298X |
Safety Integrity Level (SIL, IEC 61508)
| Identification | 3 |
Why Proax for Phoenix Contact 2865188?
Proax is an authorized distributor of Phoenix Contact 2865188 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
