PI-EX-REL/21/S - Signal isolator
Relay with intrinsically safe contact side and an additional hand-operated level
Technical Specifications
Notes
| Order information: | The electronics module is plugged into a basic terminal block. |
Product properties
| Application | Digital OUT |
| No. of channels | 1 |
Supply
| Supply Voltage Range | 20 V DC ... 35 V DC |
Control
| Available Input Sources | External voltage actuated operation; 2 V DC < Us < 50 V DC: Relay picked up; Us < 1 V DC: Relay drops out |
| Available Input Sources | Operation via external switching contact, switch closed: Relay picks up; switch open: Relay drops out |
| Current consumption | < 30 mA |
Switching: Relay
| Output description | intrinsically safe |
| Contact switching type | N/O/ N/C contact or changeover contact |
| Contact Material | AgCdO, + 5 µm hard gold-plated |
| Contact resistance per contact pair | ≤ 0.1 Ω |
| Maximum Switching Voltage | 30 V DC |
| Limiting Continuous Current | 300 mA (when intrinsically safe circuits are connected) |
Safety data
| EEX specification | [EEx ia] IIC, EX II (1)GD, TÜV 01 ATEX 1681 |
Signaling
| Status display | Green LED (supply voltage) |
| Status display | Yellow LED (status display) |

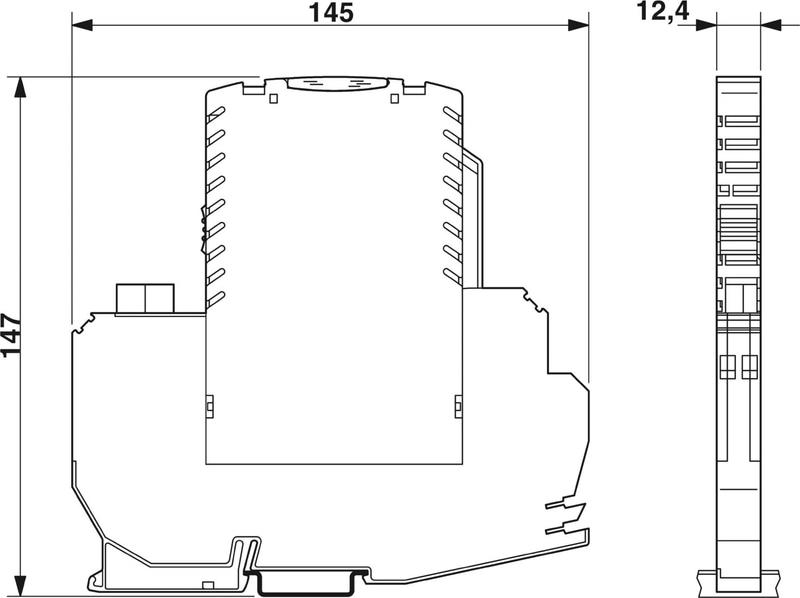

Dimensions
| Width | 145 mm |
| Height | 143 mm |
| Depth | 12.4 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing Material | Polyamide PA non-reinforced |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 60 °C (vertical assembly) |
| Ambient Temperature (Operation) | -20 °C ... 50 °C (horizontal assembly) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 95 % (relative humidity, non-condensing) |
EMC data
| Noise immunity | EN 50 082-2 |
| Electromagnetic compatibility | Conformance with EMC directive |
| Noise emission | EN 50081-2 |
