Official DistributorSKU
MPN
PI-EX-SD-24-48
Weight
0.1 kg
This product is Not Cancellable/Not Returnable
Series PI-EX-SD

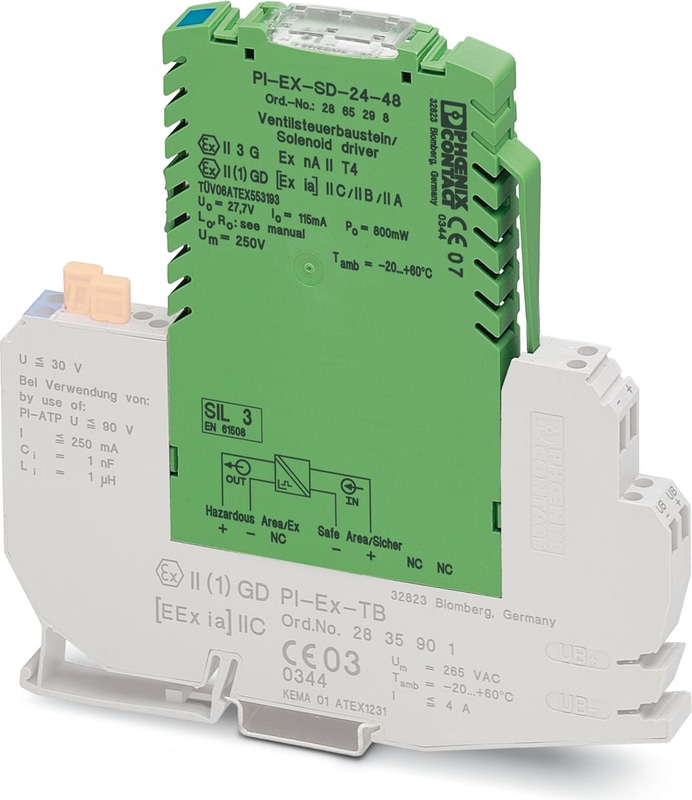

PI-EX-SD-24-48 - Solenoid driver
Ex i solenoid driver, pluggable. To control intrinsically safe solenoid valves, alarm modules as well as simple electric equipment installed in Ex areas. For Group IIC gases, loop-powered. Electrical isolation.
Technical Specifications
Product properties
| Compatible Valve | ASCO Coil 195 |
| Compatible Valve | ASCO Coil 302 (12 V) |
| Compatible Valve | Bürkert Coil AC 10 standard |
| Compatible Valve | Bürkert Coil AC 10 high resistance |
| Compatible Valve | Bürkert Coil AC 21 standard 700 mW / 65°C |
| Compatible Valve | Bürkert Coil AC 21 high resistance 700 mW / 65°C |
| Compatible Valve | Bürkert Coil AC 21 standard 900 mW / 45°C |
| Compatible Valve | Bürkert Coil AC 21 high resistance 900 mW / 45°C |
| Compatible Valve | Bürkert Coil AC 21 standard 900 mW / 60°C |
| Compatible Valve | Bürkert Coil AC 21 high resistance 900 mW / 60°C |
| Compatible Valve | Bürkert Coil G1 642735 standard 800 mW / 40°C |
| Compatible Valve | Bürkert Coil G1 642735 high resistance 800 mW / 40°C |
| Compatible Valve | Bürkert Coil G1 642735 standard 1000 mW / 40°C |
| Compatible Valve | Bürkert Coil G1 642735 high resistance 1000 mW / 40°C |
| Compatible Valve | FESTO Coil MFH-...IA-SA-EX GBXE022AIAD03 |
| Compatible Valve | FESTO Coil (J)MFH-...BIA-SA-EX GBXE022AIAD03 |
| Compatible Valve | Norgren Herion Coil 2050 |
| Compatible Valve | Norgren Herion Coil 2051 |
| Compatible Valve | Norgren Herion Coil 2052 |
| Compatible Valve | Norgren Herion Coil 2053 |
| Compatible Valve | Norgren Herion Coil 2080 / 2082 |
| Compatible Valve | Norgren Herion Coil 2081 / 2083 |
| Compatible Valve | Norgren Herion Coil 2084 |
| Compatible Valve | Norgren Herion Coil 3039 |
| Compatible Valve | Nass Coil 1259 30.1-00 |
| Compatible Valve | Nass Coil 1259 50.1-00 |
| Compatible Valve | Parker Coil VZ07 488650.01 |
| Compatible Valve | Parker Coil VZ33 494035.10 |
| Compatible Valve | Parker Coil VZ08 488660.01 |
| Compatible Valve | Parker Coil VZ09 488670.01 |
| Compatible Valve | Parker Coil VZ95 482160.01 EEx ia IIB T6 |
| Compatible Valve | Parker Coil VZ23 482870.01 |
| Compatible Valve | Samson Coil 3701-12 (12 V) |
| Compatible Valve | Samson Coil 3701-13 (24 V) |
| Compatible Valve | Samson Coil 3963-12 (12 V) |
| Compatible Valve | Samson Coil 3963-13 (24 V) |
| Compatible Valve | Samson Coil 3964-12 (12 V) |
| Compatible Valve | Samson Coil 3964-13 (24 V) |
| Compatible Valve | Seitz Pilot valve PV 12F73 Ci oH |
| Compatible Valve | Seitz Pilot valve PV 12F73 Xi oH |
| Compatible Valve | Seitz Pilot valve PV 12F73 Xi oH-2 |
| Compatible Valve | Seitz Solenoid coil 11 G 52 |
| Note | This is an extract of possible combinations of valves and solenoid drivers. |
Electrical properties
| Maximum temperature coefficient | 0.01 %/K |
Electrical isolation Input/output
| Electrical isolation | 375 V (Peak value as per EN 50020 / EN 60079-11) |
| Test voltage | 2.5 kV AC (50 Hz, 60 s) |
Supply
| Max. current consumption | < 110 mA (at 24 V) |
| Power dissipation | max. 1.5 W (at 24 V) |
Signal: Voltage
| Number of Inputs | 1 |
| Voltage input signal | 20 V DC ... 30 V DC |
| Current Input Signal | 15 mA DC ... 100 mA (85 mA for Ue = 24 V DC) |
| Number of Outputs | 1 |
| Output Voltage | 10.5 V (At 48 mA) |
| Output resistor | ≤ 278 Ω (Internal resistance Ri) |
| Current limitation | 48 mA |
| Response time | < 30 ms |
| Non-load voltage | 24 V |
| Short-circuit-proof | yes |
Safety data
| Max. output voltage Uo | 27.7 V |
| Max. output current Io | 101 mA |
| Max. output power Po | 697 mW |
| Safety-related maximum voltage Um | 250 V AC (125 V DC) |
| IIA: Max. external inductivity Lo / Max. external capacitance Co | 20 mH / 0.44 µF |
| IIB: Max. external inductivity Lo / Max. external capacitance Co | 2 mH / 0.29 µF |
| IIC (Please follow the technical data regarding the connecting cables used.): Max. external inductivity Lo / Max. external capacitance Co | 0.5 mH / 0.067 µF |
Signaling
| Status display | Yellow LED (status display) |
| Status display | Red LED (line errors) |
Dimensions
| Width | 12.4 mm |
| Height | 79 mm |
| Depth | 118.4 mm |
Material specifications
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PBT and polyamide PA non-reinforced |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (relative humidity, non-condensing) |
CE
| Certificate | CE-compliant |
ATEX
| Identification | II (1) G [Ex ia Ga] IIC |
| Identification | II (1) D [Ex ia Da] IIIC |
| Identification | II 3 G Ex nA IIC T4 Gc |
| Certificate | PxCIF07ATEX2865298X |
Safety Integrity Level (SIL, IEC 61508)
| Identification | 3 |
