Phoenix Contact 1039829
AllPower ProductsPower supply

1039829

Official Distributor

By Phoenix Contact

SKU
PHX1039829
MPN
TRIO-PS-IP67/3AC/24DC/20
Weight
4.585 kg
This product is Not Cancellable/Not Returnable
Series TRIO-PS-IP

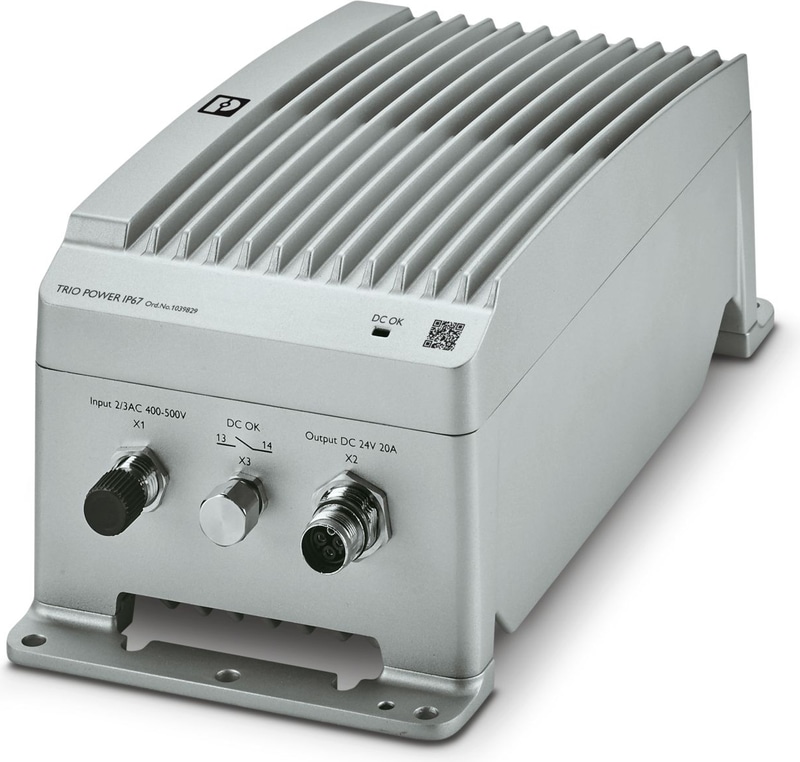

TRIO-PS-IP67/3AC/24DC/20 - Power supply unit

TRIO POWER primary-switched power supply in IP67 die-cast housing, input: 3-phase, output: 24 V DC / 20 A

  • Direct installation at the load in the field reduces cable lengths and saves space in the control cabinet
  • The robust design (die-cast aluminum housing) ensures high system availability, thanks to resistance to extreme environmental conditions (temperature, dust, and water)
  • Reliable startup of high loads, thanks to the dynamic boost
  • High efficiency of > 93%, thanks to low power losses
Technical Specifications

AC operation

Network TypeStar network
Nominal input voltage range3x 400 V AC ... 500 V AC
Nominal input voltage range2x 400 V AC ... 500 V AC
Input voltage range3x 400 V AC ... 500 V AC -20 % ... +15 %
Input voltage range2x 400 V AC ... 500 V AC -10 % ... +15 %
Input Voltage Range AC3x 320 V AC ... 575 V AC
Typical national grid voltage3x 400 V AC
Typical national grid voltage3x 480 V AC
Voltage type of supply voltageAC
Inrush Currenttyp. 22 A (at 25 °C)
Inrush current integral (I2t)0.5 A2s
Inrush current limitation≤ 22 A (at 25 °C)
AC frequency range50 Hz ... 60 Hz
Mains buffering timetyp. 10 ms (400 V AC)
Mains buffering timetyp. 20 ms (500 V AC)
Current consumption3x 1.2 A (400 V AC)
Current consumption3x 1 A (500 V AC)
Current consumption2x 2.3 A (400 V AC)
Current consumption2x 1.9 A (500 V AC)
Nominal Power Consumption39 W
Protective circuitTransient surge protection; Varistor
Typical response time< 1 s
Input fuse3.15 A (internal (device protection), slow-blow)
Recommended breaker for input protection6 A ... 16 A (Characteristics B, C, D, K)
Discharge current to PE< 3.5 mA
Discharge current to PE< (550 V AC, 60 Hz)
Voltage type of supply voltageAC
Mains buffering time> 15 ms (230 V AC)
Current consumption4.9 A (110 V DC)
Current consumption2.1 A (250 V DC)

Output data

Efficiency93 % (400 V AC)
Efficiency93 % (500 V AC)
Nominal Output Voltage24 V DC ±1 %
Nominal output current (IN)20 A
Dynamic Boost (IDyn.Boost)30 A (5 s)
Derating> 60 °C ... 70 °C (2.5 %/K)
Protection against overvoltage at the output (OVP)≤ 30 V DC
Control deviation< 1 % (change in load, static 10 % ... 90 %)
Control deviation< 3 % (Dynamic load change 10 % ... 90 %, 10 Hz)
Control deviation< 0.1 % (change in input voltage ±10 %)
Residual ripple≤ 20 mVPP
Short-circuit-proofyes
Output Power480 W
Output Power720 W
Maximum no-load power dissipation< 2 W (400 V AC)
Maximum no-load power dissipation< 2.5 W (480 V AC)
Power loss nominal load max.< 44 W (400 V AC)
Power loss nominal load max.< 44 W (480 V AC)
Rise time≤ 120 ms (UOUT (10 % ... 90 %))

Signal: DC OK

Maximum Switching Voltage30 V AC/DC
Continuous load current100 mA

Signal relay 13/14

Defaultclosed
Digital30 V AC 30 V DC 100 mA

Input

Connection MethodM12 circular connector
CodingS
Type of lockingM12 screw locking
Number of Positions4

Output

Connection MethodM17 circular connector
CodingN
Type of lockingM17 standard and SPEEDCON locking
Number of Positions4

Signal

Connection MethodCircular connector
CodingA
Type of lockingSPEEDCON M12
Number of Positions5

Signaling

Types of signalingLED
Types of signalingFloating signal contact

Signal output: LED status indicator

Signalization designationDC OK
Status displayLED
Colorgreen
DC OKUOUT > 0.9 x UN (UN = 24 V DC)

Electrical properties

Number of phases3.00
Insulation voltage input/output4 kV AC (type test)
Insulation voltage input/output1.5 kV AC (routine test)

Product properties

Product familyTRIO POWER
MTBF (IEC 61709, SN 29500)> 1500000 h (25 °C)
MTBF (IEC 61709, SN 29500)> 620000 h (40 °C)
MTBF (IEC 61709, SN 29500)> 230000 h (60 °C)

Insulation characteristics

Protection classI
Pollution degree2 (IEC 61010-1)

Item dimensions

Width151 mm
Height304 mm
Depth120 mm

Drill hole

Diameter5.6 mm

Installation dimensions

Installation distance right/left20 mm / 20 mm
Installation distance top/bottom50 mm / 100 mm

Mounting

Mounting TypeWall mounting
Assembly instructionsAlignable: 20 mm horizontally, 50 mm vertically above, 100 mm vertically below
With protective coatingNo

Material specifications

Flammability rating according to UL 94 (housing / terminal blocks)V0
Housing MaterialMetal
Type of housingAluminum (AlMg3)

Ambient conditions

Degree of ProtectionIP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Derating > 60 °C (3 AC): 2,5 %/K / > 50 °C (2 AC): 2,5 %/K)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Ambient temperature (start-up type tested)-40 °C
Maximum altitude≤ 4000 m (> 2000 m, Derating: 10 %/1000 m)
Climatic class3K3 (in acc. with EN 60721)
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (Operation)in each space direction (in acc. with EN 60068-2-6)10 Hz ... 19.9 Hz, ±2.5 mm amplitude,19.9 Hz ... 150 Hz, 4g acceleration

Standards and Regulations

Standard – Limitation of mains harmonic currentsEN 61000-3-2
Standard - Electrical safetyIEC 61010-2-201 (SELV)
Standard – Safety extra-low voltageEN 60204-1 (PELV)
Standard - Safe isolationDIN VDE 0100-410

Overvoltage category

EN 61010-1III (≤ 2000 m)
EN 61010-1II (≤ 4000 m)

Conformity/Approvals

SIL in accordance with IEC 615080
Performance level according to ISO 13849without

EMC data

Low Voltage DirectiveConformance with Low Voltage Directive 2014/35/EC
Interference emissionInterference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial)
Noise immunityImmunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial)
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Conducted noise emissionEN 55016
Conducted noise emissionEN 61000-6-3 (Class B)
Noise emissionEN 55011 (EN 55022)
Noise emissionEN 55016
Noise emissionEN 61000-6-3 (Class B)

Harmonic currents

Frequency RangeClass A

Flicker

Standards/regulationsEN 61000-3-3
Frequency Range0 kHz ... 2 kHz

Electrostatic discharge

Standards/regulationsEN 61000-4-2
Contact discharge6 kV (Test Level 4)
Discharge in air8 kV (Test Level 4)
CommentsCriterion A

Electromagnetic HF field

Standards/regulationsEN 61000-4-3
Frequency Range80 MHz ... 1 GHz
Test field strength10 V/m (Test Level 3)
Frequency Range1 GHz ... 2 GHz
Test field strength10 V/m (Test Level 3)
Frequency Range2 GHz ... 3 GHz
Test field strength10 V/m (Test Level 3)
CommentsCriterion A

Fast transients (burst)

Standards/regulationsEN 61000-4-4
Input4 kV (Test Level 4 - asymmetrical)
Output2 kV (Test Level 3 - asymmetrical)
Signal1 kV (Test Level 2 - asymmetrical)
CommentsCriterion A

Surge voltage load (surge)

Standards/regulationsEN 61000-4-5
Input1 kV (Test Level 1 - symmetrical)
Input2 kV (Test Level 1 - asymmetrical)
Output0.5 kV (Test Level 1 - symmetrical)
Output0.5 kV (Test Level 1 - asymmetrical)
Signal1 kV (Test Level 2 - asymmetrical)
CommentsCriterion B

Conducted interference

Standards/regulationsEN 61000-4-6
Input/Outputasymmetrical
Frequency Range0.15 MHz ... 80 MHz
CommentsCriterion A
Voltage10 V (Test Level 3)

Voltage dips

Standards/regulationsEN 61000-4-11
Voltage400 V AC
Frequency50 Hz
Voltage dip70 %
Number of periods25 periods
Additional textTest Level 2
CommentsCriterion A
Voltage dip40 %
Number of periods10 periods
Additional textTest Level 2
CommentsCriterion A
Voltage dip0 %
Number of periods1 period
Additional textTest Level 2
CommentsCriterion A

Emitted interference

Standards/regulationsEN 61000-6-3
Radio interference voltage in acc. with EN 55011EN 55011 (EN 55022) Class B, area of application: Industry and residential
Emitted radio interference in acc. with EN 55011EN 55011 (EN 55022) Class B, area of application: Industry and residential

Criteria

Criterion ANormal operating behavior within the specified limits.
Criterion BTemporary impairment to operational behavior that is corrected by the device itself.
Criterion CTemporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements.
