CT 10-2PE/FSR-24
Weight
0.127 kg
Series CT

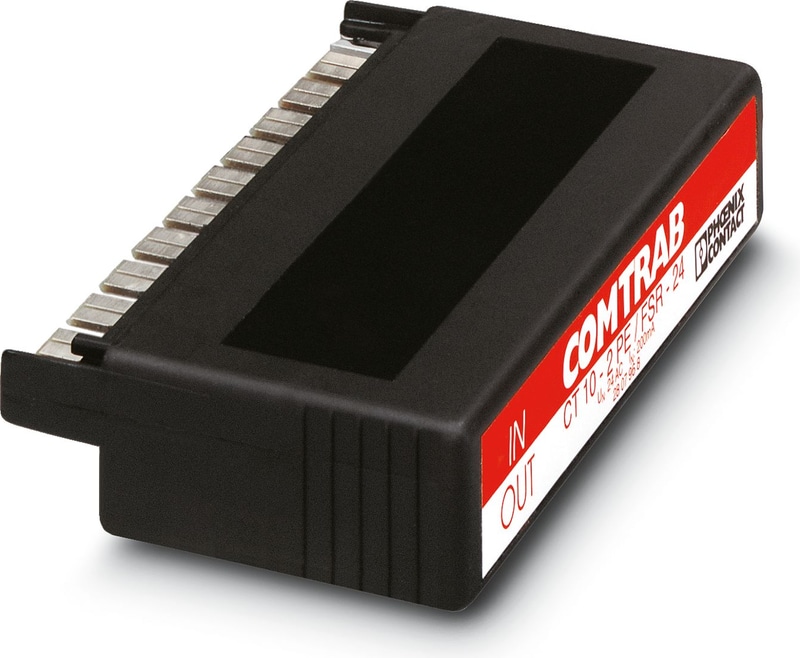

CT 10-2PE/FSR-24 - Surge protection plug
LSA-PLUS plug (COMTRAB CT 10) with coarse/fine surge protection and decoupling resistor for 10 floating signal circuits. Nominal voltage: 24 V DC. Version: 10 double wires.
- Space-saving due to compact design
- Flexible fields of application with modular protective plug
- Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Technical Specifications
Product properties
| Product family | COMTRAB |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| Type | LSA-PLUS module |
| Surge protection fault message | none |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.00 |
| Wire pairs per module | 10 |
Electrical properties
| Nominal voltage UN | 24 V DC |
Connection data
| Connection Method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
Dimensions
| Width | 111 mm |
| Height | 22 mm |
| Depth | 68.5 mm |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PBT |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | 40 V DC |
| Maximum continuous voltage UC | 28 V AC |
| Rated current | 200 mA (25 °C) |
| Operating effective current IC at UC | ≤ 5 µA (a-b) |
| Residual current IPE | ≤ 1 µA (per path) |
| Nominal discharge current In (8/20) µs (line-line) | 5 kA |
| Nominal discharge current In (8/20) µs (line-ground) | 5 kA |
| Total discharge current Itotal (8/20) µs | 10 kA |
| Max. discharge current Imax (8/20) µs maximum (line-line) | 5 kA |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 5 kA |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 95 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 650 V |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 60 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 650 V |
| Residual voltage at In (conductor-conductor) | ≤ 55 V |
| Response time tA (line-line) | ≤ 1 ns |
| Response time tA (line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | 1.5 dB (Typ. up to 2 MHz / 50 Ω) |
| Input attenuation aE, sym. | 0.6 dB (Typ. up to 1 MHz / 150 Ω) |
| Input attenuation aE, sym. | 0.2 dB (Typ. up to 100 kHz / 600 Ω) |
| Cut-off frequency fg (3 dB), sym. in 50 Ω system | 7 MHz (typ.) |
| Cut-off frequency fg (3 dB), sym. in 150 Ω system | 4 MHz (typ.) |
| Cut-off frequency fg (3 dB), sym. in 600 Ω system | 900 kHz (typ.) |
| Capacity (core-core) | 1.1 nF (f=1 MHz / VR= 0 V) |
| Capacity (core-earth) | 1 pF (typ.) |
| Resistance per path | 10 Ω ±10 % |
| Surge protection fault message | none |
| Max. required back-up fuse | 200 mA |
| Impulse durability (line-line) | C1 - 1 kV / 500 A |
| Impulse durability (line-line) | C2 - 10 kV / 5 kA |
| Impulse durability (line-line) | C3 - 100 A |
| Impulse durability (line-earth) | C1 - 1 kV / 500 A |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| Impulse durability (line-earth) | C3 - 100 A |
| Impulse durability (line-earth) | D1 - 2.5 kA |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
Air clearances and creepage distances
| Standards/regulations | VDE 0110-1 / IEC 60664-1 |
Standards Information technology specification
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | IEC 61643-21 |
| Standards/specifications | IEC 61643-21 |
| Note | 2000 |
Mounting
| Mounting Type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
Accessories
