2765356
Official DistributorSKU
PHX2765356
MPN
CT 10-TL
Weight
0.061 kg
Series CT

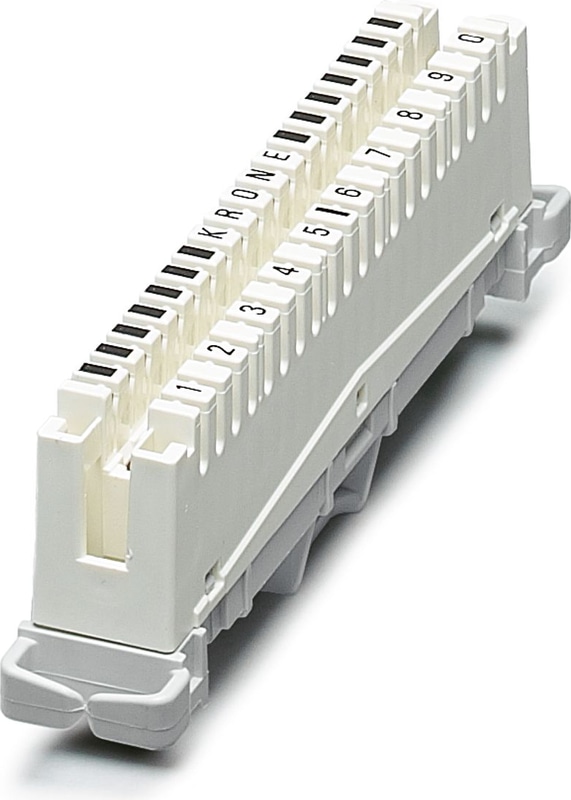

CT 10-TL - Disconnect strip
LSA-PLUS disconnect strip to hold the CTM and CT 10 protection modules. Version: 10 double conductors, dimension A: 124 mm.
- Space-saving due to compact design
- Flexible fields of application with modular protective plug
- Maximum ease of maintenance, thanks to the 2-piece design
Technical Specifications
Product properties
| Product family | COMTRAB |
| Type | LSA-PLUS module |
| Surge protection fault message | none |
Connection data
| Connection Method | Insulation displacement connection |
Dimensions
| Width | 124 mm |
| Height | 22 mm |
| Depth | 53 mm |
Material specifications
| Color | light grey (RAL 7035) |
| Color | white (RAL 9010) |
| Flammability rating according to UL 94 | V0 |
Mechanical data
| Open side panel | No |
Protective circuit
| Surge protection fault message | none |
Mounting
| Mounting Type | auf LSA-PLUS-Montagebügel |
Why Proax for Phoenix Contact 2765356?
Proax is an authorized distributor of Phoenix Contact 2765356 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
Recommended
CT 10-MB/ 3, Mounting clip, for holding 3 disconnect or ground wire strips. Version: 10 double conductors, dimensions: A 104.5 mm, B 65 mm.
