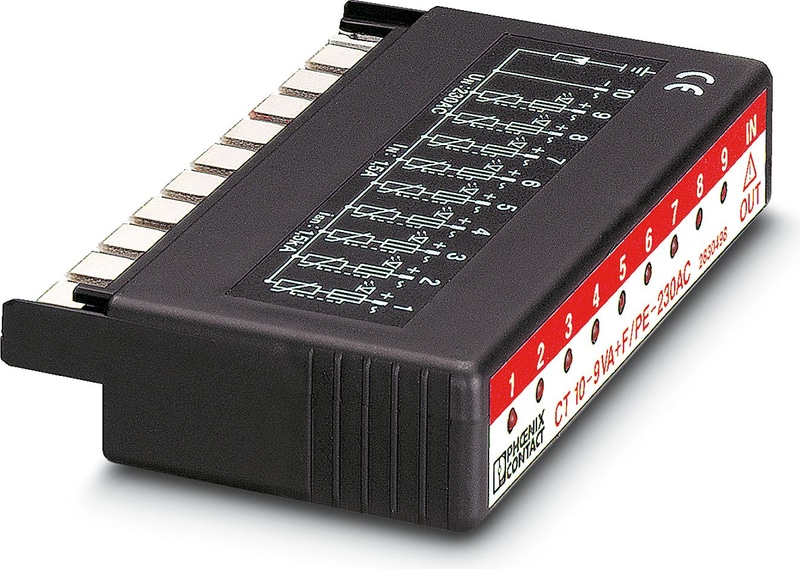

The figure shows version CT 10-9VA-F/PE-230 AC
2830472
Official DistributorSKU
PHX2830472
MPN
CT 10-9VA- 60AC
Weight
0.104 kg
Series CT
CT 10-9VA- 60AC - Surge protection plug
LSA-PLUS plug (COMTRAB CT 10) with surge protection incl. visual fault warning for nine 2-core signal circuits. Nominal voltage: 60 V AC. Design: 10 double wires
Technical Specifications
Product properties
| IEC test classification | C1 |
| IEC test classification | C3 |
| Type | LSA-PLUS module |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.00 |
Electrical properties
| Nominal voltage UN | 60 V AC |
Connection data
| Connection Method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
Dimensions
| Width | 111 mm |
| Height | 22 mm |
| Depth | 68.5 mm |
Material specifications
| Flammability rating according to UL 94 | V2 |
| Housing Material | PBT |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | 100 V DC |
| Maximum continuous voltage UC | 75 V AC |
| Maximum continuous voltage UC (line-earth) | 100 V DC |
| Maximum continuous voltage UC (line-earth) | 75 V AC |
| Maximum continuous voltage UC (line-signalground) | 100 V DC |
| Maximum continuous voltage UC (line-signalground) | 75 V AC |
| Operating effective current IC at UC | ≤ 1.5 mA |
| Operating effective current IC at UC | ≤ 2.5 mA |
| Residual current IPE | ≤ 1 µA |
| Nominal discharge current In (8/20) µs (line-ground) | 5 kA |
| Nominal discharge current In (8/20) µs (line-signal ground) | 1.5 kA |
| Total surge current (8/20) µs | 5 kA |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 5 kA (10-PE) |
| Max. discharge current Imax (8/20) µs maximum (line-signalground) | 4.5 kA (10) |
| Residual voltage at In (conductor-ground) | ≤ 1.4 kV |
| Residual voltage at In (line-signalground) | ≤ 350 V |
| Residual voltage at In, fixed cable length | 10 m |
| Max. energy absorption (2 ms), asym. | 20 J |
| Voltage protection level Up (line-earth) | ≤ 1.4 kV (10-PE) |
| Voltage protection level Up (line-signalground) | ≤ 350 V (10) |
| Response time tA (line-line) | ≤ 25 ns |
| Response time tA (line-earth) | ≤ 100 ns |
| Response time tA (line-signalground) | ≤ 25 ns |
| Frequency Range | 50 Hz ... 60 Hz |
| Capacity (core-earth) | 2 pF (10-PE) |
| Capacity (line-signalground) | 1370 pF (10) |
| Max. required back-up fuse | 1.5 A (gL) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
Air clearances and creepage distances
| Standards/regulations | VDE 0110-1 / IEC 60664 |
Standards Information technology specification
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | IEC 61643-21 |
Mounting
| Mounting Type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
