2765408
Official DistributorSKU
PHX2765408
MPN
CT 10-2/2-GS/3E
Weight
0.049 kg
Series CT

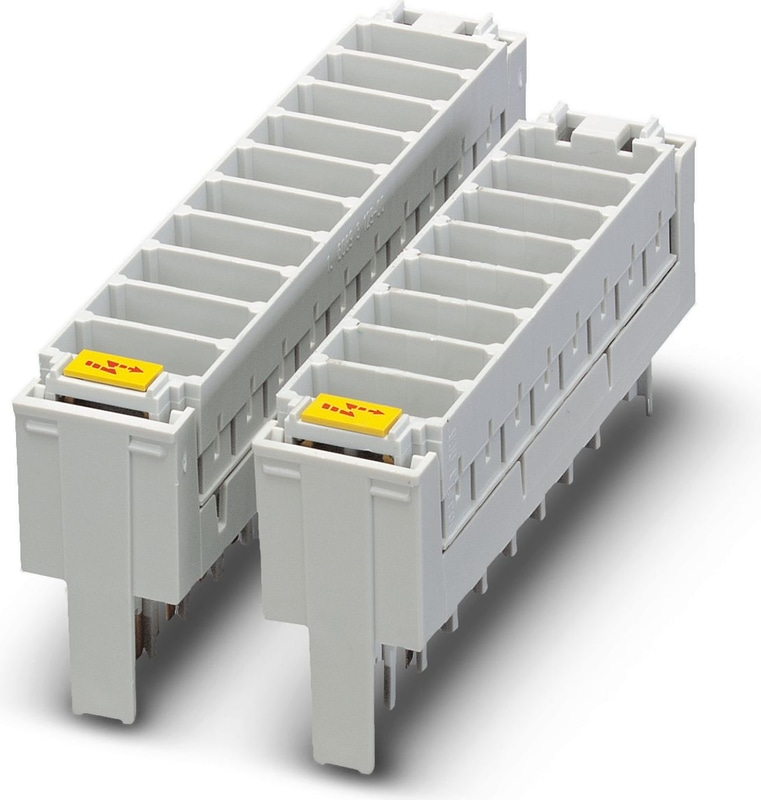

CT 10-2/2-GS/3E - Magazine
Coarse protection card cage CT, for holding 10 three-electrode gas-filled surge arresters, unequipped. Version: 10 double conductors
- Space-saving due to compact design
- Flexible fields of application with modular protective plug
- Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Technical Specifications
Product properties
| Product family | COMTRAB |
| Type | LSA-PLUS module |
| Number of Positions | 20 |
| Surge protection fault message | none |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.00 |
| Wire pairs per module | 10 |
Connection data
| Connection Method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
Dimensions
| Width | 113.3 mm |
| Height | 22.5 mm |
| Depth | 41.35 mm |
Material specifications
| Color | white (RAL 9010) |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Surge protection fault message | none |
Mounting
| Mounting Type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
