2765398
Official DistributorSKU
PHX2765398
MPN
CT 10-2/2-GS
Weight
0.066 kg
Series CT

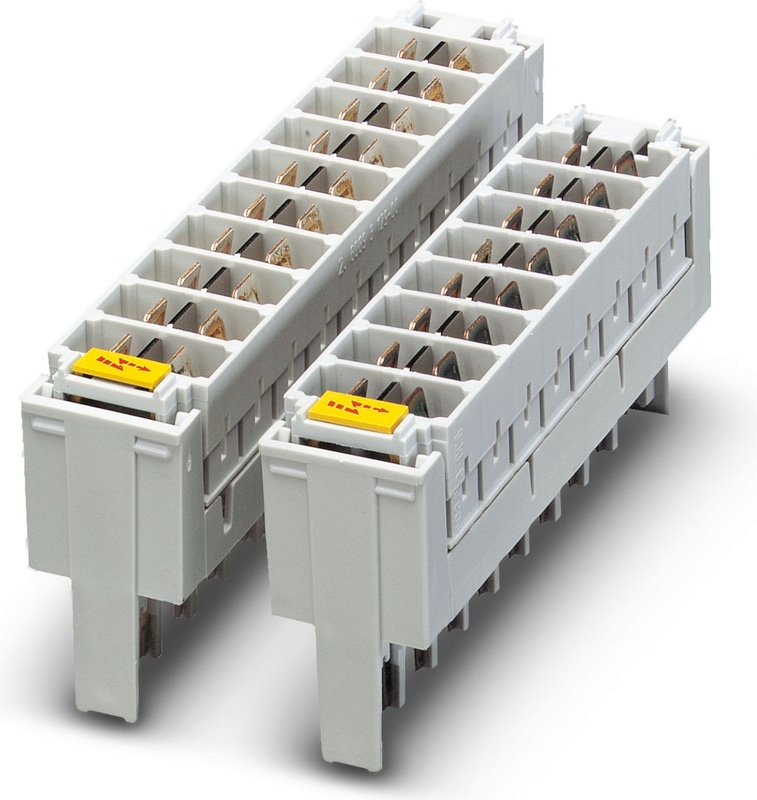

CT 10-2/2-GS - Magazine
Coarse protection magazine CT, for holding 20 2-electrode gas-filled surge arresters of type H, bare. Version: 10 double conductors
- Space-saving due to compact design
- Flexible fields of application with modular protective plug
- Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Technical Specifications
Product properties
| Product family | COMTRAB |
| Type | LSA-PLUS module |
| Number of Positions | 20 |
| Surge protection fault message | none |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.00 |
Connection data
| Connection Method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
Dimensions
| Width | 113 mm |
| Height | 22.5 mm |
| Depth | 41.35 mm |
Material specifications
| Color | white (RAL 9010) |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Earth Ground |
| Surge protection fault message | none |
Mounting
| Mounting Type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
Why Proax for Phoenix Contact 2765398?
Proax is an authorized distributor of Phoenix Contact 2765398 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
