2920829
Official DistributorSKU
PHX2920829
MPN
CT 10-2/2-GS/3E-110AC
Weight
0.074 kg
Series CT
CT 10-2/2-GS/3E-110AC - Magazine

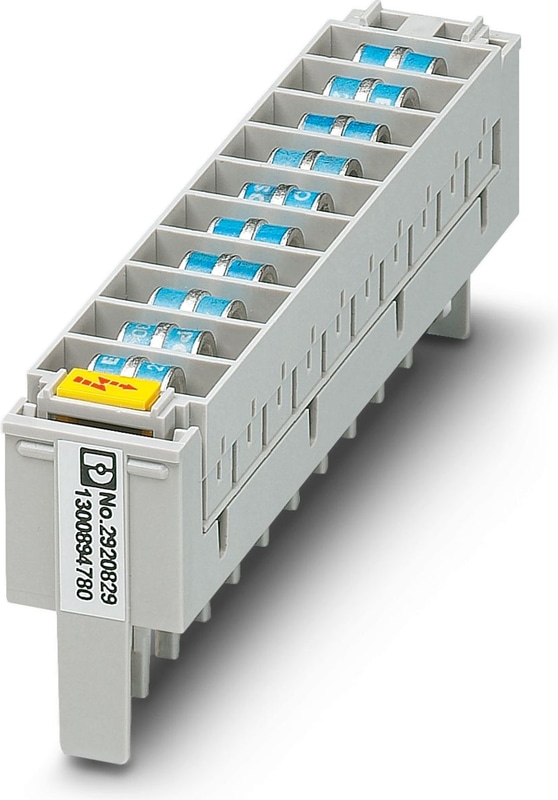

LSA-PLUS coarse protection magazine for 10 double conductors, equipped with 10 three-electrode gas-filled surge arresters.
- Space-saving due to compact design
- Flexible fields of application with modular protective plug
- Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Technical Specifications
Product properties
| Product family | COMTRAB |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| Type | LSA-PLUS module |
| Number of Positions | 20 |
| Surge protection fault message | none |
| Wire pairs per module | 10 |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 110 V AC |
Connection data
| Connection Method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
Dimensions
| Width | 113.3 mm |
| Height | 22.5 mm |
| Depth | 41.35 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PBT |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | 60 V DC |
| Maximum continuous voltage UC | 130 V AC |
| Rated current | 1.5 A AC (per path) |
| Rated current | 150 mA DC (per path) |
| Operating effective current IC at UC | ≤ 1 µA (per path) |
| Residual current IPE | ≤ 20 µA |
| Nominal discharge current In (8/20) µs (line-ground) | 5 kA |
| Pulse discharge current Iimp (10/350) µs (line-earth) | 2.5 kA |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 500 V |
| Response time tA (line-earth) | ≤ 100 ns |
| Capacity (core-earth) | typ. 5 pF |
| Resistance per path | ≤ 10 mΩ |
| Surge protection fault message | none |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| Impulse durability (line-earth) | C3 - 100 A |
| Impulse durability (line-earth) | D1 - 2.5 kA |
| Alternating current carrying capacity (line-earth) | 10 A - 1 s |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
| Altitude | ≤ 2000 mm (amsl) |
Air clearances and creepage distances
| Standards/regulations | VDE 0110-1 / IEC 60664-1 |
| Standards/specifications | IEC 61643-21 |
| Note | 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
| Standards/specifications | EN 61643-21 |
| Note | 2001 + A1:2009 + A2:2013 |
Mounting
| Mounting Type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
