0441711
Official DistributorSKU
PHX0441711
MPN
CT-TERMIBLOCK 10 DA
Weight
0.172 kg

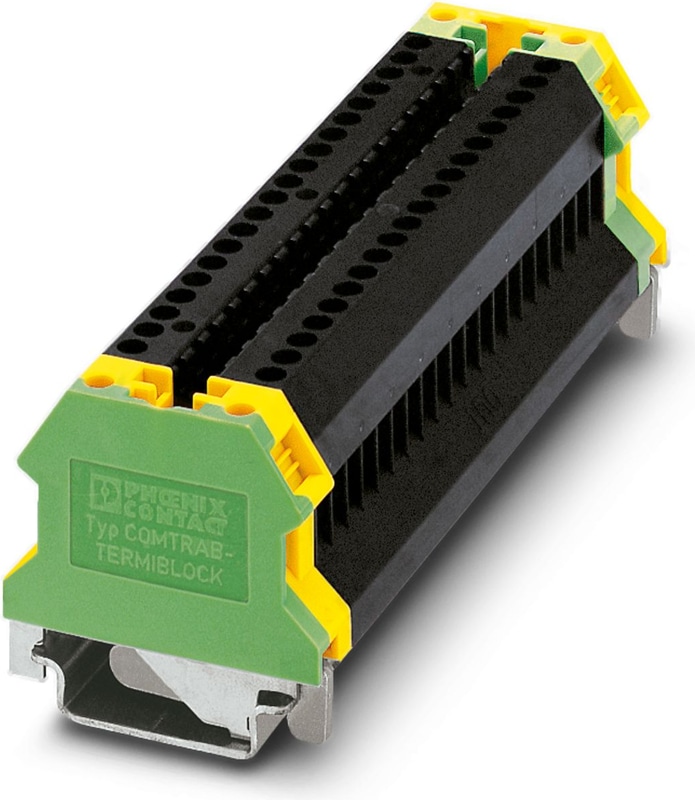

CT-TERMIBLOCK 10 DA - Screw termination block
Screw termination block with disconnect contacts for accommodating protective plugs CT and CTM. Use in MCR and telecommunications systems. Design: 10 double wires
- Space-saving due to compact design
- Flexible fields of application with modular protective plug
- Maximum ease of maintenance, thanks to the 2-piece design
Technical Specifications
Product properties
| Product family | COMTRAB |
| Type | LSA-PLUS module |
| Wire pairs per module | 10 |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 3 |
Connection data
| Connection Method | Screw terminal blocks |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 118 mm |
| Height | 43 mm |
| Depth | 40.9 mm |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V2 |
| Insulating material group | I / 600 |
| Housing Material | PA |
| Contact Material | Cu alloy |
| Contact surface material | Sn |
Mechanical data
| Open side panel | No |
Protective circuit
| Maximum continuous voltage UC | 240 V AC |
| Operating effective current IC at UC | 5 A |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Altitude | 2000 m |
Air clearances and creepage distances
| Standards/regulations | IEC 60664-1 |
Mounting
| Mounting Type | DIN rail: 35 mm |
Why Proax for Phoenix Contact 0441711?
Proax is an authorized distributor of Phoenix Contact 0441711 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
