Phoenix Contact 3002615
AllConnectorsTerminal blocksPush-in connection
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
PT 4-L/L
Weight
0.024 kg
This product is Not Cancellable/Not Returnable
Series PT

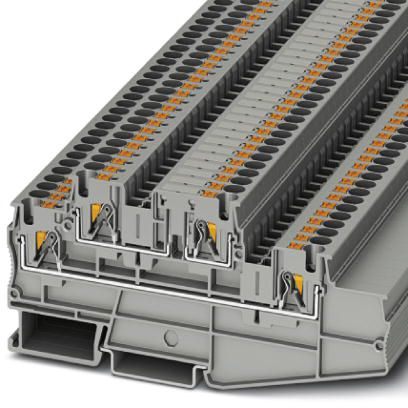

Multi-level terminal block - PT 4-L/L

Multi-level terminal block, nom. voltage: 500 V, nominal current: 30 A, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

  • Easy and tool-free direct plug-in thanks to push-in multi-conductor connection
Technical Specifications

General

Number of rows3
Number of Connections4
Potentials2
Nominal cross section4 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Mounting TypeNS 35/7,5
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.02 W
Maximum Load Current32 A (with 6 mm² conductor cross section, rigid)
Nominal current IN30 A
Nominal voltage UN500 V
Maximum Load Current20 A
Nominal current IN20 A
Nominal voltage UN500 V
Open side panelYes
Shock protection test specificationDIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protectionguaranteed
Finger protectionguaranteed
Result of surge voltage testTest passed
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint1.89 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)Test passed
Result of flexion and pull-out testTest passed
Bending test rotation speed10 rpm
Bending test turns135
Bending test conductor cross section/weight0.2 mm² / 0.2 kg
Bending test conductor cross section/weight4 mm² / 0.9 kg
Bending test conductor cross section/weight6 mm² / 1.4 kg
Tensile test resultTest passed
Result of tight fit on supportTest passed
Tight fit on carrierNS 35
Setpoint1 N
Result of voltage-drop testTest passed
Result of temperature-rise testTest passed
Requirement temperature-rise testIncrease in temperature ≤ 45 K
Short circuit stability resultTest passed
Conductor cross section short circuit testing2.5 mm²
Short-time current0.3 kA
Conductor cross section short circuit testing4 mm²
Short-time current0.48 kA
Conductor cross section short circuit testing6 mm²
Short-time current0.72 kA
Conductor cross section short circuit testing2.5 mm²
Short-time current0.3 kA
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Result of aging testTest passed
Ageing test for screwless modular terminal block temperature cycles192
Oscillation, broadband noise test resultTest passed
Test specification, oscillation, broadband noiseDIN EN 50155 (VDE 0115-200):2008-03
Test spectrumService life test category 1, class B, body mounted
Test frequencyf1 = 5 Hz to f2 = 150 Hz
ASD level0.964 (m/s²)²/Hz
Acceleration0.58g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
Shock test resultTest passed
Test specification, shock testDIN EN 50155 (VDE 0115-200):2008-03
Shock formHalf-sine
Acceleration5g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width6.2 mm
Length118.5 mm
Height54.5 mm
Height NS 35/7,556 mm
Height NS 35/1563.5 mm

Connection data

Connection MethodPush-in connection
Stripping length10 mm ... 12 mm
Connection in acc. with standardIEC 60947-7-3
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.6 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.10
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.6 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
Connection cross sections directly pluggable0.5 mm² 6 mm² 20 10
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.6 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
Internal cylindrical gageA4
Connection MethodPush-in connection
Stripping length10 mm ... 12 mm
Connection in acc. with standardIEC 60947-7-3
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.6 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.10
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.4 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
Connection cross sections directly pluggable0.5 mm² 6 mm² 20 10
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.6 mm²
Value0.5 mm²
Value4 mm²
Value0.5 mm²
Value4 mm²

Standards and Regulations

Connection in acc. with standardIEC 60947-7-3
Connection in acc. with standardIEC 60947-7-3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
