2906595
Official DistributorSKU
PHX2906595
MPN
VIP/S/D25M/BASE 1-8/L/C/EX
Weight
0.442 kg

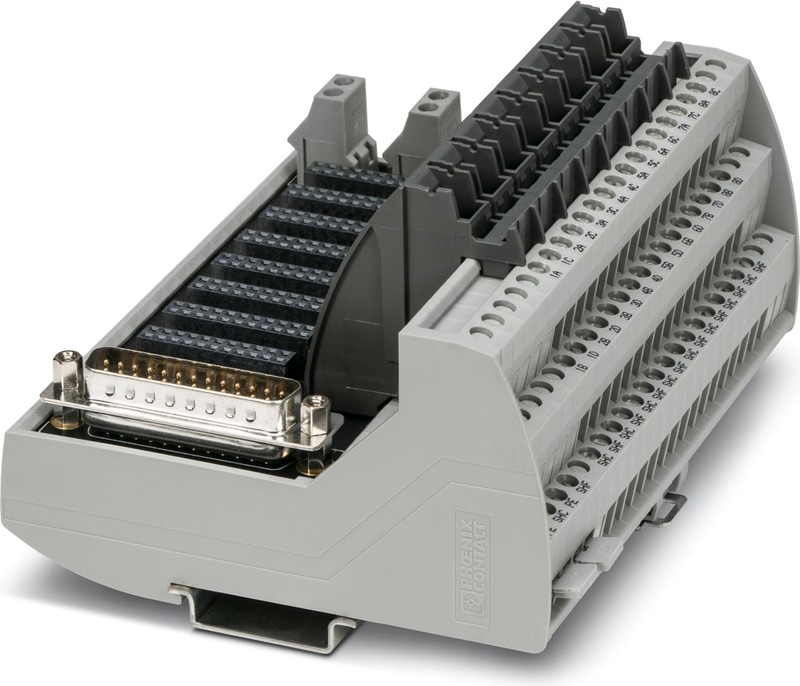

VIP/S/D25M/BASE 1-8/L/C/EX - Base module
8-channel VIP I/O marshalling base element for universal use. All connections as screw connection technology. This module with the D-SUB 25 connector is pin compatible with the Foxboro I/A series DCS.
- Integrated carrier for IOA insertion and retention
- Screw-clamp field connections
- Power bus terminals with redundancy
- Each channel has four connections (A, B, C, D) and multiple shield options
- Channels for marking accessories
- Integrated DIN rail ground foot
- Rugged metal DIN rail foot for ease of installation or removal from the rail
- Terminals for discrete wiring or cable connection
Technical Specifications
Product properties
| Product family | VIP I/O-Marshalling |
| No. of channels | 8 |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. operating voltage Umax | 30 V DC (field terminals) |
| Max. operating voltage Umax | 230 V AC (field terminals) |
| Max. operating voltage Umax | 30 V DC (A and B terminals) |
| Max. operating voltage Umax | 30 V DC (D-SUB 25 connector) |
| Max. permissible current | 4 A (A and B terminals) |
| Max. permissible total current | 15 A (per module) |
| Max. current carrying capacity per branch | 3 A (field signal) |
| Max. current carrying capacity per branch | 1 A (control contacts) |
Field level
| Connection in acc. with standard | IEC / EN |
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Controller level
| Connection Method | D-SUB 25 |
| Number of Connections | 1 |
| Number of Positions | 25 |
| Tightening torque | 0.3 Nm ... 0.34 Nm |
Power-level terminals
| Connection Method | Screw connection |
| Number of Connections | 2 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Safety data
| Input voltage Ui | 30 V (per channel) |
| Input current Ii | 1 A (per channel) |
| Inductance Li | 0 mH |
| Capacitance Ci | 0 µF |
| Safety-related maximum voltage Um | 253 V AC/DC (A and B terminals and D-SUB 25) |
Signaling
| Status display | No |
| Status display present | No |
Item dimensions
| Width | 123.1 mm |
| Height | 102.7 mm |
| Depth | 72.2 mm |
Material specifications
| Color | gray (RAL 7042) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Altitude | < 2000 mm |
| Permissible humidity (operation) | 0 % ... 95 % (non-condensing) |
ATEX
| Identification | II 3G Ex nA IIC T4 Gc |
| Certificate | Sira 17ATEX4367X |
IECEx
| Identification | Ex nA IIC T4 Gc |
| Certificate | IECEx SIR 17.0086X |
UKEX
| Identification | II 3G Ex nA IIC T4 Gc |
| Certificate | PxCIF23UKEX2906595X |
UL, USA/Canada
| Identification | Class I, Div. 2, Groups A, B, C, D T4 |
| Identification | Class I, Zone 2, IIC T4 |
CSA, USA/Canada
| Identification | Class I, Div. 2, Groups A, B, C, D T4 |
| Identification | Class I, Zone 2, AEx nA IIC T4 Gc |
| Identification | Ex nA IIC T4 Gc |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | As desired on 35 mm DIN rail in acc. with EN 60715 |
Accessories
