Official DistributorSKU
MPN
VIP/S/MC/KIT 25-32
Weight
0.016 kg
Series VIP-S-MC-KIT

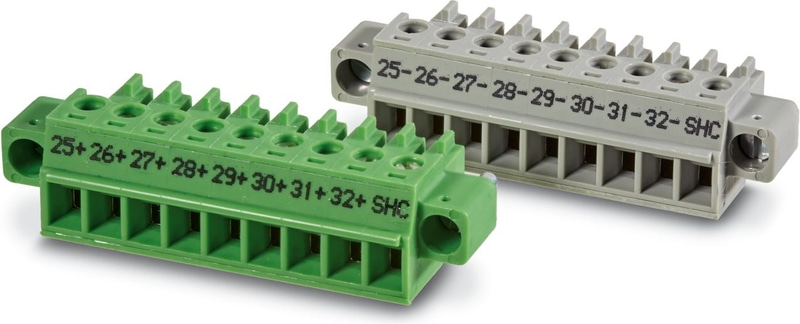

VIP/S/MC/KIT 25-32 - PCB connectors
Pair of screw-clamp plugs to connect to VIP base module labeled 25-32.
- Screw-clamp terminal wire connection
- Pre-printed channel and shield labeling
- Pluggable for quick and easy connection to base module
Technical Specifications
Product properties
| Product family | VIP I/O-Marshalling |
Electrical properties
| Max. permissible current | 8 A |
| Nominal voltage UN | 300 V (maximum continuous operating voltage) |
Controller level
| Connection Method | Screw connection |
| Stripping length | 7 mm |
| Number of Positions | 9 |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Tightening torque | 0.22 Nm ... 0.25 Nm |
Item dimensions
| Width | 44.68 mm |
| Height | 11.1 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Why Proax for Phoenix Contact 2907269?
Proax is an authorized distributor of Phoenix Contact 2907269 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
