Official DistributorSKU
MPN
VIP/S/FRONT-MC/KIT 9-16
Weight
0.026 kg
Series VIP-S-FRONT-MC-KIT
VIP/S/FRONT-MC/KIT 9-16 - PCB connectors

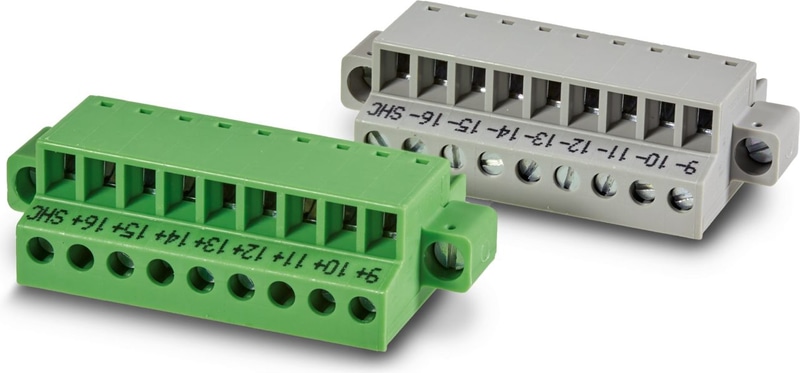

Pair of screw-clamp plugs to connect to VIP base module labeled 9-16
- Screw-clamp terminal wire connection
- Pre-printed channel and shield labeling
- Pluggable for quick and easy connection to base module
- Front screw placement
Technical Specifications
Product properties
| Product family | VIP I/O-Marshalling |
Electrical properties
| Max. permissible current | 8 A |
| Nominal voltage UN | 300 V (maximum continuous operating voltage) |
Controller level
| Connection Method | Screw connection |
| Stripping length | 9 mm |
| Number of Positions | 9 |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Tightening torque | 0.22 Nm ... 0.25 Nm |
Item dimensions
| Width | 44.68 mm |
| Height | 12.3 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Why Proax for Phoenix Contact 2907270?
Proax is an authorized distributor of Phoenix Contact 2907270 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
