Official DistributorSKU
MPN
VIP/S/MVSTBR/KIT CX
Weight
0.16 kg

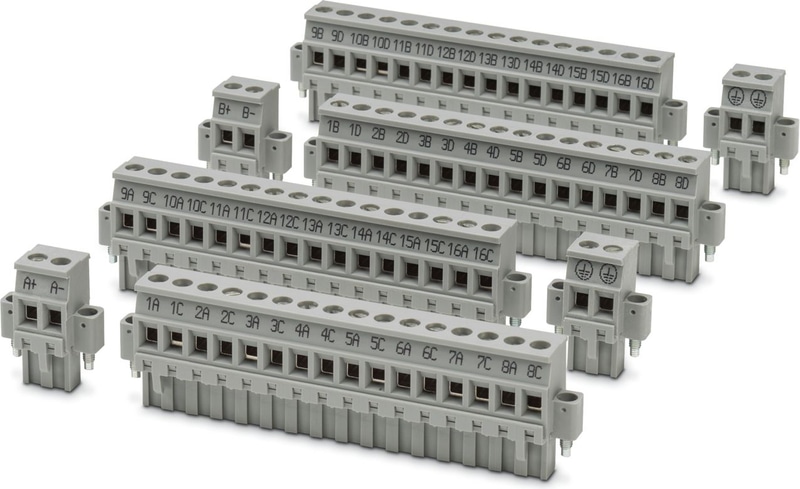

VIP/S/MVSTBR/KIT CX - Connector set
Plug kit for use with VIP/MSTB/D50M/BASE..., screw connections
- Screw-clamp terminal wire connection
- Pre-printed channel labelling
- Pluggable for quick and easy connection to base module
Technical Specifications
Product properties
| Product family | VIP I/O-Marshalling |
Electrical properties
| Max. permissible current | 10 A |
| Nominal voltage UN | 300 V (maximum continuous operating voltage) |
Field level
| Connection Method | Screw connection |
| Stripping length | 7 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Housing insulation material | PA |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Why Proax for Phoenix Contact 2910416?
Proax is an authorized distributor of Phoenix Contact 2910416 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
