Official DistributorSKU
MPN
VIP/U/RAIL 3L DIVIDER
Weight
0.02 kg

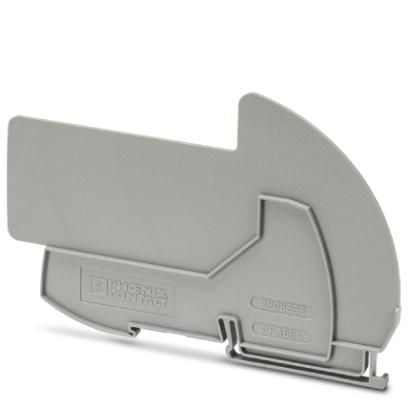

VIP/U/RAIL 3L DIVIDER - Partition plate
VIP I/O marshalling partition plate for safe isolation between non-Ex i and Ex i assembled base modules for Honeywell systems. The partition plate is mounted directly on the DIN rail at the end of the base module.
- Rail mounted divider at the end of the VIP base module provides separation between circuits
- Durable, sleek design
Technical Specifications
Dimensions
| Width | 5 mm |
| Height | 136.7 mm |
| Depth | 88.2 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Permissible humidity (operation) | 0 % ... 95 % (non-condensing) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact 2908555?
Proax is an authorized distributor of Phoenix Contact 2908555 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
