FL SWITCH IRT 4TX
Weight
0.615 kg
Series FL-SWITCH-IRT

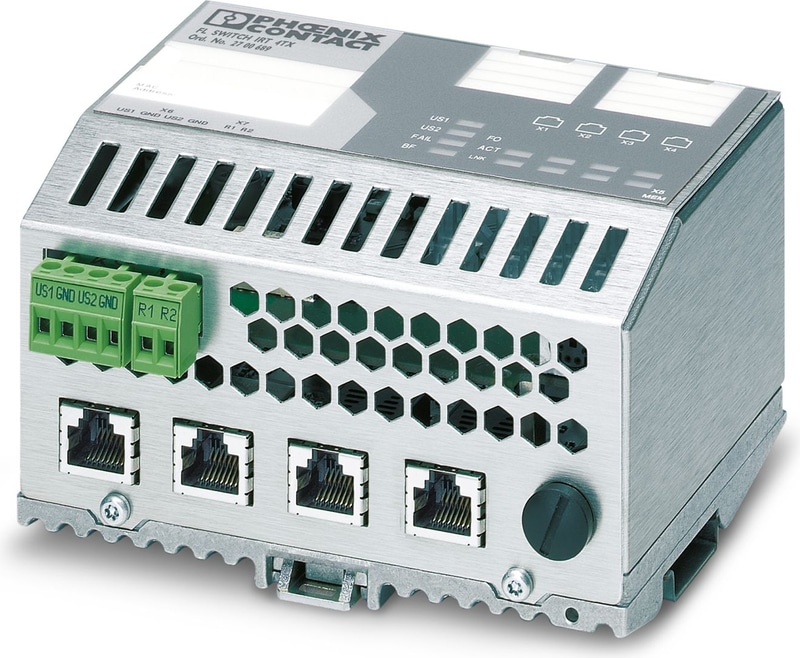

FL SWITCH IRT 4TX - Industrial Ethernet Switch
Ethernet switch, four ports in RJ45 format for PROFINET RT/IRT, DIN rail mountable
- MRP (client and manager)
- PN IO device
- Cut-through switching
- SNMP
- Flat design
Technical Specifications
Dimensions
| Width | 127 mm |
| Height | 95 mm |
| Depth | 69 mm |
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Material specifications
| Material base plate | Die-cast aluminum, corrosion-resistant |
| Housing Material | Aluminum, transparently anodized |
Mounting
| Mounting Type | DIN rail mounting |
Ethernet
| Connection Method | RJ45 |
| Transmission Speed | 10/100 Mbps |
| Transmission physics | Copper |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, link, activity |
| No. of channels | 4 (RJ45 ports) |
Product properties
| Product family | Managed Switch IRT |
| Type | Stand-Alone |
| MTTF | 362.73 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| MTTF | 218.23 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) |
| MTTF | 37.87 Years (SN 29500 standard, temperature 60°C, operating cycle 100%) |
Switch functions
| Basic Functions | Cut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device. |
| Signal contact control voltage | 24 V (typical) |
| Signal contact control current | typical |
| PROFINET conformance class | Conformance-Class C |
| PROFINET device function | PROFINET device |
| PROFINET specification | PROFINET-IO RT/IRT, Spec. 2.x |
| Redundancy | MRP (Media Redundancy Protocol) |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and FO status), and BF (Bus Fail) |
| Supported browsers | Internet Explorer 5.5 or higher |
Security functions
| Basic Functions | Cut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device. |
Electrical properties
| Local diagnostics | US1/2 Supply voltage US1, US2 Green LED |
| Local diagnostics | FAIL Div. LED red |
| Local diagnostics | LINK Link status Green LED |
| Local diagnostics | ACT Receiving/sending telegrams Green LED |
| Local diagnostics | BF Bus errors LED red |
| Maximum power dissipation for nominal condition | 3.96 W |
| Test section | Between the Ethernet ports 1500 V AC 1 min. |
| Test section | 24 V supply (US) / FE 500 V DC 1 min. |
| Transmission medium | Copper |
Supply
| Supply voltage (DC) | 24 V DC (redundant) |
| Supply Voltage Range | 18.5 V DC ... 30.2 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Max. current consumption | 165 mA |
| Typical current consumption | 165 mA (at US = 24 V DC) |
| Current consumption | 165 mA (at 24 V DC) |
Function
| Signal contact control voltage | 24 V (typical) |
| Signal contact control current | typical |
Supply: Module electronics
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 18 V DC ... 32 V DC (including ripple) |
Connection data
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 7 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Vibration (Operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz |
| Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
EMC data
| Conformance with EMC directives | EN 55022 (emitted interference) Class A |
| Conformance with EMC directives | EN 61000-4-2 (ESD) Criterion A |
| Conformance with EMC directives | EN 61000-4-3 (electromagnetic fields) Criterion A, 10 V/m |
| Conformance with EMC directives | EN 61000-4-5 (surge) Criterion B |
| Conformance with EMC directives | EN 61000-4-4 (EFT burst) Criterion A, 2.2 kV |
| Conformance with EMC directives | EN 61000-4-6 EN 61000-4-6 (line noise immunity) Criterion A, Field intensity: 10 V/m |
| Conformance with EMC directives | EN 61000-4-3 (electromagnetic fields) EN 61000-4-3 (electromagnetic fields) Criterion A, 10 V/m |
| Conformance with EMC directives | 60950-1 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Functionality
| Basic Functions | Cut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device. |
System requirements
| Supported browsers | Internet Explorer 5.5 or higher |
Signaling
| Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and FO status), and BF (Bus Fail) |
Accessories
FL MEM PLUG - Exchangeable configuration memory of the device settings for simple device exchange and set-up
QUINT-PS/1AC/24DC/5 - Primary-switched power supply with SFB technology, 1 AC, output current 5 A
FL MEM PLUG/MRM - Exchangeable configuration memory of the device settings for simple device exchange and set-up In addition, the Media Redundancy Manager (MRM) license for use is stored within the Media Redundancy protocol (MRP).
NBC-R4AC/10G-R4AC/10G-94F/2,0 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 2.0 m- NBC-R4AC/10G-R4AC/10G-94F/3,0 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 3.0 m
NBC-R4AC/1,0-93B/R4AC - Patch cable, degree of protection: IP20, cable length: 1 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET- NBC-R4AC/2,0-93B/R4AC - Patch cable, degree of protection: IP20, cable length: 2 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET
- Patch cable, degree of protection: IP20, cable length: 5 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET
