1144353
Official DistributorSKU
PHX1144353
MPN
FL SWITCH EP7428R-L3F1
Weight
7.846 kg
Series FL-SWITCH-EP

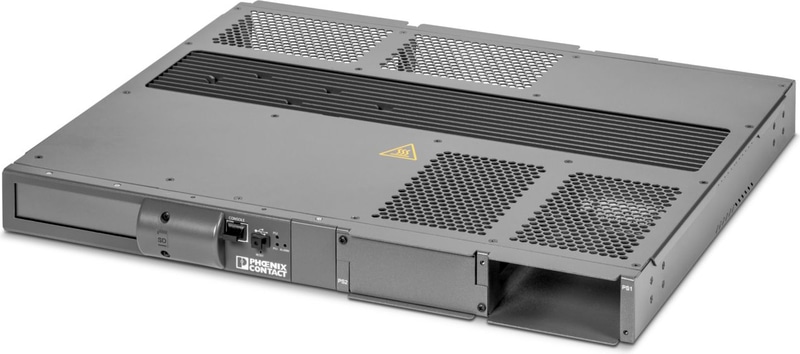

FL SWITCH EP7428R-L3F1 - Industrial Ethernet Switch
Ethernet gigabit modular switch with slots for twenty-four 10/100/1000 Mbps copper or 100/1000 Mbps SFP ports and four 1000/10,000 Mbps SFP ports using hot-swappable rear modules
- Layer 2 and Layer 3 functions
- Modules allow device connections to expand from 10/100 Mbps to 1000 Mbps, and uplink connections from 1 Gbps to 10 Gbps
- Extensive security functions for remote access, local access and network access areas
- 28-port rack-mount switch with required modular port and power supplies
- Hot-swappable port and power supply modules
Technical Specifications
Dimensions
| Width | 486.2 mm |
| Height | 44.4 mm |
| Depth | 446.7 mm |
Mounting
| Mounting Type | Rack mount, includes brackets |
Ethernet
| Connection Method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission Speed | 10/100/1000 Mbps |
| Transmission physics | Copper |
| Transmission length | 100 m (per segment) |
| No. of channels | RJ45 or SFP |
Ethernet (SFP)
| Connection Method | SFP |
| Transmission Speed | 1000/10000 Mbps (full duplex) |
| Transmission physics | Depending on the SFP module |
Digital:
| Output name | Alarm relay output: 24 V DC, 1 A maximum |
Product properties
| Product family | Managed Switch EP7000 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 2 |
Switch functions
| Signal contact control voltage | 24 V DC |
| Signal contact control current | 1 A |
| MAC address table | 16k |
Supply
| Supply Voltage | Based on modular power supplies used |
Function
| Signal contact control voltage | 24 V DC |
| Signal contact control current | 1 A |
Connection technology
| Connection name | Power supply |
Power supply
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (Type tested to 85 °C for 16 hours) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Standards and Regulations
| Standard designation | Ambient conditions |
| Standards/specifications | IEC 61850-3 |
| Standards/specifications | IEEE 1613 |
Conformity/Approvals
| Conformance | CE-compliant |
EMC data
| Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 |
