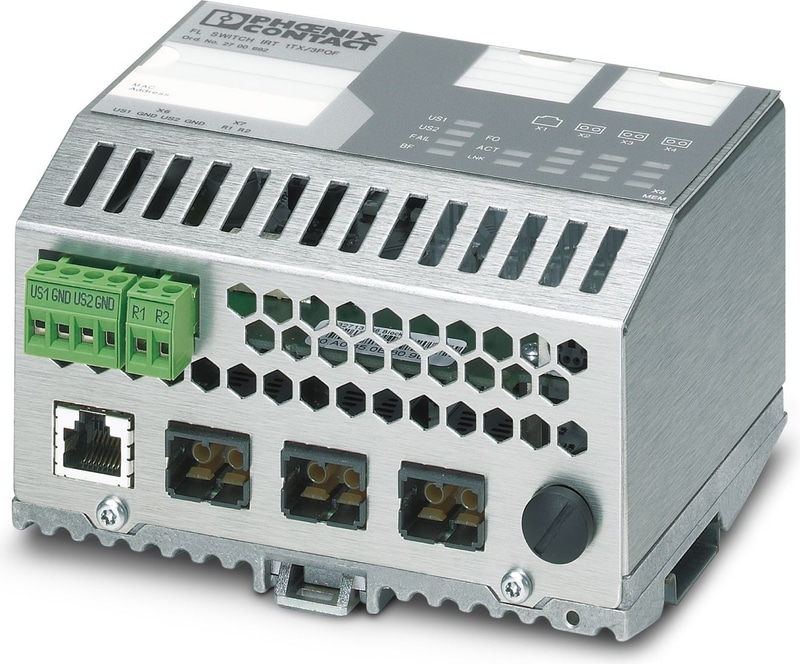

FL SWITCH IRT TX 3POF - Industrial Ethernet Switch

Ethernet Switch, one port in RJ45 format and three ports in POF SC-RJ format for PROFINET RT/IRT, DIN rail mountable

  • MRP (client and manager)
  • PN IO device
  • Cut-through switching
  • SNMP
  • Flat design
Technical Specifications

Dimensions

Width127 mm
Height95 mm
Depth69 mm

Material specifications

Material base plateDie-cast aluminum, corrosion-resistant
Housing MaterialAluminum, transparently anodized

Mounting

Mounting TypeDIN rail mounting

Ethernet

Connection MethodRJ45
Transmission Speed10/100 Mbps
Transmission physicsCopper
Transmission length100 m (per segment)
Signal LEDsSupply voltage, data transmission, error, link, activity
No. of channels1 (RJ45 port)

POF/PCF

Connection MethodPOF SC-RJ
Transmission Speed100 Mbps (full duplex)
Transmission physicsPOF-SCRJ
Transmission lengthup to 100 m (depending on the fiber used)
Wavelength650 nm
No. of channels3 (SC-RJ)

Product properties

Product familyManaged Switch IRT
TypeStand-Alone

Switch functions

Basic FunctionsCut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device.
Signal contact control voltage24 V (typical)
Signal contact control currenttypical
PROFINET conformance classConformance-Class C
PROFINET device functionPROFINET device
PROFINET specificationPROFINET-IO RT/IRT, Spec. 2.x
RedundancyMRP (Media Redundancy Protocol)
Status and diagnostic indicatorsLEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and FO status), and BF (Bus Fail)
Supported browsersInternet Explorer 5.5 or higher

Security functions

Basic FunctionsCut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device.

Electrical properties

Local diagnosticsUS1/2 Supply voltage US1, US2 Green LED
Local diagnosticsFAIL Div. LED red
Local diagnosticsLINK Link status Green LED
Local diagnosticsACT Receiving/sending telegrams Green LED
Local diagnosticsBF Bus errors LED red
Local diagnosticsFO Orange LED
Maximum power dissipation for nominal condition6.48 W
Test sectionBetween the Ethernet ports 1500 V AC 1 min.
Test section24 V supply (US) / FE 500 V DC 1 min.
Transmission mediumCopper

Supply

Supply voltage (DC)24 V DC (redundant)
Supply Voltage Range18.5 V DC ... 30.2 V DC
Power supply connectionVia COMBICON, max. conductor cross section 2.5 mm²
Residual ripple3.6 VPP (within the permitted voltage range)
Max. current consumption270 mA
Typical current consumption270 mA (at US = 24 V DC)
Current consumption270 mA (at 24 V DC)

Function

Signal contact control voltage24 V (typical)
Signal contact control currenttypical

Supply: Module electronics

Supply Voltage24 V DC
Supply Voltage Range18 V DC ... 32 V DC (including ripple)

Connection data

Connection MethodScrew connection
Conductor cross section, rigid0.2 mm² ... 2.5 mm²
Conductor cross section, flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Stripping length7 mm

Ambient conditions

Degree of ProtectionIP20
Ambient Temperature (Operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Vibration (Operation)in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz
Air pressure (operation)86 kPa ... 108 kPa (2000 m above mean sea level)
Air pressure (storage/transport)66 kPa ... 108 kPa (3500 m above sea level)

EMC data

Conformance with EMC directivesEN 55022 (emitted interference) Class A
Conformance with EMC directivesEN 61000-4-2 (ESD) Criterion A
Conformance with EMC directivesEN 61000-4-3 (electromagnetic fields) Criterion A, 10 V/m
Conformance with EMC directivesEN 61000-4-5 (surge) Criterion B
Conformance with EMC directivesEN 61000-4-4 (EFT burst) Criterion A, 2.2 kV
Conformance with EMC directivesEN 61000-4-6 EN 61000-4-6 (line noise immunity) Criterion A, Field intensity: 10 V/m
Conformance with EMC directivesEN 61000-4-3 (electromagnetic fields) EN 61000-4-3 (electromagnetic fields) Criterion A, 10 V/m
Conformance with EMC directives60950-1
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU

Functionality

Basic FunctionsCut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device.

System requirements

Supported browsersInternet Explorer 5.5 or higher

Signaling

Status displayLEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and FO status), and BF (Bus Fail)
Accessories
  • Phoenix Contact2891259
    2891259
    FL MEM PLUG - Exchangeable configuration memory of the device settings for simple device exchange and set-up
  • Phoenix Contact2866750
    2866750
    QUINT-PS/1AC/24DC/5 - Primary-switched power supply with SFB technology, 1 AC, output current 5 A
  • Phoenix Contact2891053
    2891053
    DIN rail adapter - FL DIN RA
  • Phoenix Contact2891275
    2891275
    FL MEM PLUG/MRM - Exchangeable configuration memory of the device settings for simple device exchange and set-up In addition, the Media Redundancy Manager (MRM) license for use is stored within the Media Redundancy protocol (MRP).
  • Phoenix Contact2832263
    2832263
    Patch cable - FL CAT5 PATCH 0,5
  • Phoenix Contact2832276
    2832276
    FL CAT5 PATCH 1,0 - Patch cable, CAT5, assembled, 1 m
  • Phoenix Contact2832289
    2832289
    FL CAT5 PATCH 2,0 - Patch cable, CAT5, assembled, 2 m
  • Phoenix Contact1408360
    1408360
    NBC-R4AC/10G-R4AC/10G-94F/2,0 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 2.0 m
  • Phoenix Contact1408365
    1408365
    NBC-R4AC/10G-R4AC/10G-94F/3,0 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 3.0 m
  • Phoenix Contact1408968
    1408968
    NBC-R4AC/1,0-93B/R4AC - Patch cable, degree of protection: IP20, cable length: 1 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET
  • Phoenix Contact1408969
    1408969
    NBC-R4AC/2,0-93B/R4AC - Patch cable, degree of protection: IP20, cable length: 2 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET
  • Phoenix Contact1408970
    1408970
    Patch cable, degree of protection: IP20, cable length: 5 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET
