1144388
Official DistributorSKU
PHX1144388
MPN
FL SWITCH EP7400-M4TGSFP
Weight
0.644 kg
Series FL-SWITCH-EP

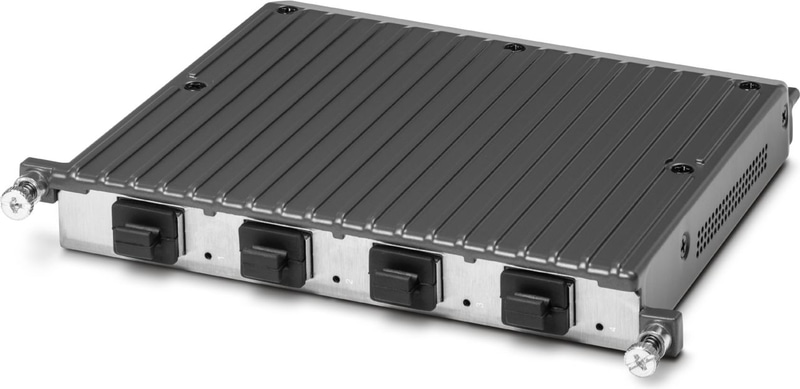

FL SWITCH EP7400-M4TGSFP - Communication module
Extension module, provides four SFP ports at 1/10 Gbps
Technical Specifications
Product properties
| Product family | Managed Switch EP7000 |
Functionality
| Basic Functions | Media module for modular managed switch |
Ethernet
| Connection Method | SFP |
| Transmission Speed | 1000/10,000 Mbps |
| No. of channels | 4 (SFP+ ports) |
| Transmission Speed | 1000/10,000 Mbps |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (Type tested to 85 °C for 16 hours) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Standards and Regulations
| Standards/specifications | IEC 61850-3 |
Mounting
| Mounting Type | Internal module for rack switch |
Why Proax for Phoenix Contact 1144388?
Proax is an authorized distributor of Phoenix Contact 1144388 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
