Phoenix Contact 1052432
AllPLC & HMII/O systemsI/O systems for the control cabinet (IP20)
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
AXL F EX IS AI8 HART XC 1F
Weight
0.399 kg
This product is Not Cancellable/Not Returnable

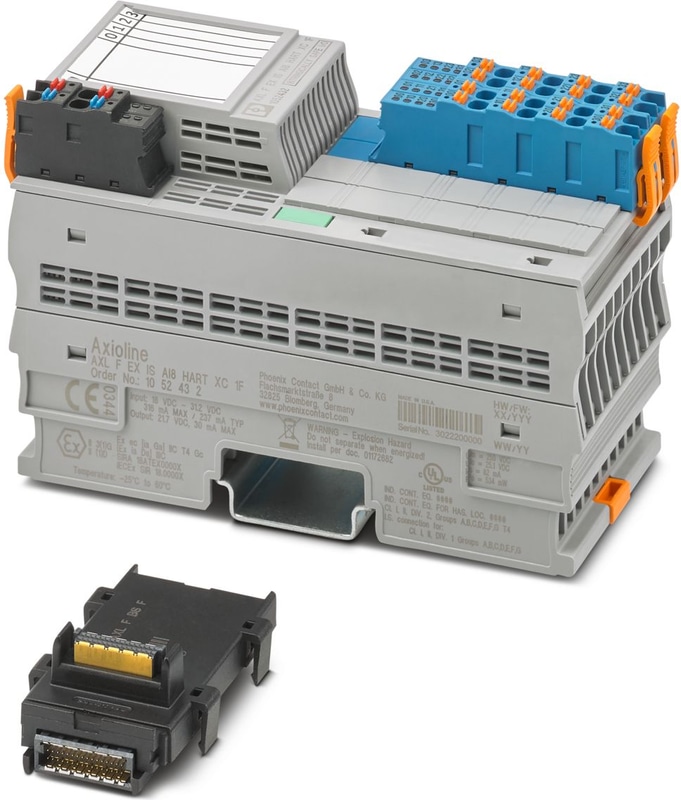

AXL F EX IS AI8 HART XC 1F - Analog module

Axioline F, Analog input module, Active analog inputs: 8 (HART), 4 mA ... 20 mA, connection technology: 2-conductor, transmission speed in the local bus: 100 Mbps, Extreme conditions version, intrinsically safe, HART functionality, degree of protection: IP20, including bus base module and Axioline F connectors

  • Active analog input module
  • Sources power for up to 8 HART enabled, passive analog input signals
  • Cyclic access to PV, SV, TV, QV, and Loop Current
  • Current range: 4 mA ... 20 mA
  • Intrinsically safe analog inputs with connection to Zone 1, Zone 0 or Division 1
  • Can be used under extreme ambient conditions
  • Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)

Documents

Technical Specifications

Dimensions

Width53.6 mm
Height129.9 mm
Depth77.1 mm
Note on dimensionsThe depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715).

Note on application

Note on applicationOnly for industrial use

Utilization restriction

EMC noteEMC: class A product, see manufacturer's declaration in the download area
CCCex noteUse in potentially explosive areas is not permitted in China.

Axioline F local bus

Number of interfaces2
Connection MethodBus base module
Transmission Speed100 Mbps

Module

Input address area48 Byte
Output address area0 Byte
Required parameter data 27 Byte
Required configuration data 6 Byte

Analog:

Input nameActive analog inputs
Description of the inputHART enabled, active analog input signals
Number of Inputs8 (HART)
A/D conversion time500 µs
A/D converter resolution≥ 12 bit
Connection MethodPush-in connection
Connection technology2-conductor
Note regarding the connection technologyshielded, twisted pair
Current Input Signal4 mA ... 20 mA
Data formatsInline, S7-compatible, standard formatting
Limit frequency (3 dB)25 Hz
Limit frequency (3 dB)10 Hz
Measured value representation16 bits (15 bits + sign bit)

Product properties

Product familyAxioline F
Typeblock modular
Mounting Positionany (no temperature derating)
Scope of deliveryincluding bus base module and Axioline F connectors
Special PropertiesExtreme conditions version
Special Propertiesintrinsically safe
Special PropertiesHART functionality

Insulation characteristics

Overvoltage categoryII (IEC 60664-1, EN 60664-1)
Pollution degree2 (IEC 60664-1, EN 60664-1)

Electrical properties

Maximum power dissipation for nominal condition2.51 W

Potentials: Axioline F local bus supply (UBus)

Supply Voltage5 V DC (via bus base module)
Current drawmax. 60 mA
Current drawtyp. 40 mA

Potentials: Supply for analog modules (UA)

Supply Voltage24 V DC
Supply Voltage Range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current drawmax. 240 mA
Protective circuitSurge protection; electronic (35 V, 0.5 s)
Protective circuitReverse polarity protection; Polarity protection diode
Protective circuitTransient protection; Suppressor diode

Electrical isolation/isolation of the voltage ranges

Test voltage: 5 V supply of the local bus (UBus) / 24 V supply (I/Os)500 V AC, 60 Hz, 1 min
Test voltage: 5 V supply of the local bus (UBus) / functional ground500 V AC, 60 Hz, 1 min
Test voltage: 5 V supply of the local bus (UBus) / analog inputs1500 V AC, 60 Hz, 1 min
Test voltage: 24 V supply (I/O) / functional ground500 V AC, 60 Hz, 1 min
Test voltage: 24 V supply (I/O) / analog inputs1500 V AC, 60 Hz, 1 min
Test voltage: Analog inputs / functional ground500 V AC, 60 Hz, 1 min

Connection technology

Connection nameAxioline F connector
Note on the connection methodPlease observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual.

Conductor connection

Connection MethodPush-in connection
Conductor cross section rigid0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 16
Stripping length8 mm

Axioline F connector

Connection MethodPush-in connection
Note on the connection methodPlease observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual.
Conductor cross section, rigid0.2 mm² ... 1.5 mm²
Conductor cross section, flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 16
Stripping length8 mm

Ambient conditions

Ambient Temperature (Operation)-25 °C ... 60 °C (Standard)
Ambient Temperature (Operation)-40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.)
Degree of ProtectionIP20
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)

Standards and Regulations

Protection classIII (IEC 61140, EN 61140, VDE 0140-1)

ATEX

IdentificationII 3(1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIIC
CertificateDEMKO 20 ATEX 2370X

IECEx

IdentificationEx ec [ia Ga] IIC T4 Gc[Ex ia Da] IIIC
CertificateIECEx UL 20.0044X

UKCA Ex (UKEX)

IdentificationII 3(1) G Ex ec [ia Ga] IIC T4 GcII (1) D [Ex ia Da] IIIC
CertificateUL22UKEX2508X

UL, USA/Canada

IdentificationcULus
CertificateE238705

UL Ex, USA / Canada

IdentificationClass I, Division 2, Groups A, B, C, D, T4
IdentificationIntrinsically safe outputs for: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III; [Ex ia] Haz loc
IdentificationClass I, Zone 2, AEx ec [ia Ga] IIC T4 Gc
Identification[AEx ia Da] IIIC
IdentificationEx ec [ia Ga] IIC T4 Gc
Identification[Ex ia Da] IIIC
CertificateE196811

CCC / China-Ex

IdentificationEx ec [ia Ga] IIC T4 Gc
Identification[Ex ia Da] IIIC

Ex data

UL, USA / CanadaInd. Cont. Eq. (E238705) also ListedInd. Cont. Eq. for haz. loc. E196811Install in: Class I, Div. 2, Groups A, B, C, D T4Intrinsically safe outputs for: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III; [Ex ia] Haz locClass I, Zone 2, AEx ec [ia Ga] IIC T4 Gc[AEx ia Da] IIICEx ec [ia Ga] IIC T4 Gc[Ex ia Da] IIIC

Mounting

Mounting TypeDIN rail mounting
Mounting Positionany (no temperature derating)

Safety data

Max. output voltage Uo24.8 V
Max. output current Io85.8 mA
Max. output power Po532 mW
Safety-related maximum voltage Um250 V
A, B / IIC: Max. external inductivity Lo / Max. external capacitance Co2.95 mH / 0.113 µF
C/IIB, IIIC: Max. external inductivity Lo / Max. external capacitance Co18.95 mH / 0.86 µF
D/IIA, E, F, G, Class III: Max. external inductivity Lo / Max. external capacitance Co30.95 mH / 3.05 µF
