EV-T2M3SO12-4P-B-SET
Weight
0.541 kg
Series EV-T
EV-T2M3SO12-4P-B-SET - Infrastructure charging socket

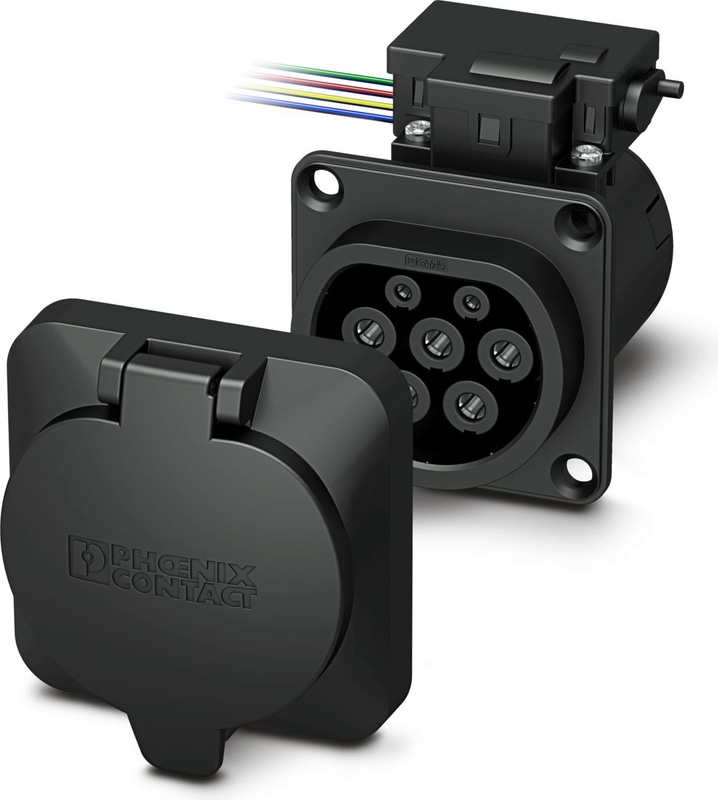

CHARX connect modular, Type 2, Infrastructure charging socket, 32 A , 480 V AC, Basic, Set, without single-core wires, locking actuator: 12 V, 4-pos., square, Rear panel mounting, M5 thread, housing: black, with square protective cover, for charging electric vehicles (EV) with alternating current (AC), PHOENIX CONTACT logo, IEC 62196-2
- Protected against overheating with precise temperature measurement
- Flexible mounting and easy maintenance with plug-in cables
- Available with your logo on request - for consistent branding of your charging station
- Waterproof and dirtproof due to fully molded contacts
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
- Uniform, space-saving installation space
Documents
Technical Specifications
Product properties
| Product family | CHARX connect modular |
| Application | for charging electric vehicles (EV) with alternating current (AC) |
| Application | compatible with infrastructure charging plugs |
| Design (Infrastructure charging socket) | square |
| Design (Protective cover) | square |
| Design (Protective cap) | circular |
| Type | Basic |
| Type | Set |
| Design | with square protective cover |
| Compatibility | The square basic protective cover version included in this set is not compatible with the shutter. Choose a set with a premium and/or round protective cover version for this. |
| Affixed logo | PHOENIX CONTACT logo |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
Electrical properties
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Connection via spade connector, separable and reconnectable |
| Type of charging current | AC 3-phase |
| Charging power rating | 22 kW |
| Charging power | max. 26.6 kW (3-phase) |
| Charging current | max. 32 A AC (3-phase) |
Power contact
| Number | 5 (L1, L2, L3, N, PE) |
| Rated voltage | 480 V AC |
| Rated current | 32 A |
Signal contact
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
Locking actuator
| Operating Voltage | 12 V |
| Note number of positions | 4-pos. |
| Position of the locking actuator | Top center position |
| Operating Voltage | 12 V |
| Note number of positions | 4-pos. |
| Position of the locking actuator | Top center position |
| Possible power supply range at the motor | 9 V ... 16 V |
| Maximum voltage for locking detection | 30 V |
| Typical motor current for locking | 0.2 A |
| Reverse current of the motor | max. 1 A |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Service life insertion cycles | > 10000 load cycles |
| Lock recognition | available |
| Mechanical emergency release | available |
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
| Cable Length | 0.5 m |
| Cable structure | 4 x 0.5 mm² |
Infrastructure charging socket
| Width | 75 mm |
| Height | 91.71 mm |
| Depth | 87.95 mm |
Protective cover
| Width | 85 mm |
| Height | 93.7 mm |
| Depth | 32.5 mm |
Bore dimensions
| Width | 60 mm |
| Height | 60 mm |
Protective cap
| Width | 64 mm |
| Height | 57 mm |
| Depth | 24 mm |
Material specifications
| Color (Housing) | black (9005) |
| Color (Protective cover) | black (9005) |
| Material (Housing) | Plastic |
| Material (Protective cover) | Plastic |
| Material (Contact surface) | Silver |
Cable/line
| Cable Type | without single-core wires |
| Single wire, cross section | 6.00 mm² |
Single-core wires for locking actuator
| Cable Length | 0.5 m |
| Cable structure | 4 x 0.5 mm² |
| Single wire, material | PVC |
| Single wire, color | BU/RD, BU/GN, BU/YE, BU/BN |
| External Cable Diameter | 1.60 mm ±0.20 mm |
| Cable resistance | ≤ 37.1 Ω/m |
Mechanical properties
| Type of cover movement | Self-locking |
Mechanical data
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Ambient conditions
| Degree of protection (Infrastructure charging socket) | IP44 (plugged in) |
| Degree of protection (Protective cover) | IP54 |
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
Standards
| Standards/regulations | IEC 62196-2 |
Mounting
| Mounting type Infrastructure charging socket | Rear panel mounting (0 to 90 degree frontal inclination possible) |
| Mounting type Protective cover | Rear panel mounting |
| Mounting hole diameter | 7.00 mm (ø) |
| Fixing screws | M5 thread |
| Screws included in the scope of delivery | none |
